75kW Mobile Trailer Generator Ricardo Generator With Trailer For Easy Moveable Operation

Place of Origin Fuzhou, China
Brand Name Tecgen Power
Certification CE / SASO / SONCAP / COC / PVOC
Model Number TG103RST
Minimum Order Quantity 1 unit
Price Negotiation
Packaging Details Stretch film packaging
Delivery Time 20 Days
Payment Terms T/T, L/C
Supply Ability 200 Units Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Mobile Trailer Frequency 50Hz
Brand Ricardo Engine Model R6105ZD
Engine Cylinder 6 Cylinder Alternator TGI274S75
Prime Power 94kVA / 75kW Max Power 103kVA / 83kW
Highlight

Ricardo Mobile Trailer Generator

,

Easy Moveable Mobile Trailer Generator

,

75kW Mobile Trailer Generator

Leave a Message
Product Description

75kW Mobile trailer generator ricardo generator with trailer for easy moveable operation



Product Description:



Introducing the Ricardo Generator's flagship model – the 75kW Mobile Trailer Generator, the ultimate solution for all your portable power needs. Whether you're in the construction industry, managing an outdoor event, or require emergency backup power, this robust generator delivers uninterrupted power wherever you go.





Standard Features:



  • Powerful Engine: Equipped with a robust diesel engine, the 75kW Mobile Trailer Generator boasts a maximum output of 75 kilowatts, ensuring a steady and reliable power supply.
  • Mobile Trailer Design: Mounted on a durable steel trailer frame, it's easy to transport and maneuver, even on uneven terrain, making it the perfect choice for remote locations.
  • Automatic Voltage Regulation: Maintains stable voltage output, protecting your appliances from damage caused by voltage fluctuations.
  • Long Runtime: With a large fuel tank, the generator can run continuously for extended periods, minimizing refueling intervals.





Key Features:



  • Silent Operation: Equipped with advanced noise reduction technology, the 75kW Mobile Trailer Generator operates at a whisper-quiet level, ideal for noise-sensitive environments.
  • Remote Control Capability: Comes with a convenient remote control, allowing you to start, stop, and monitor the generator's status from a safe distance.
  • Advanced Protection Systems: Includes overload, low oil pressure, and high-temperature shutdown protection, ensuring the safety of both the generator and your equipment.
  • Easy Maintenance: Designed for hassle-free maintenance, with easy access to all serviceable parts and a comprehensive user manual.

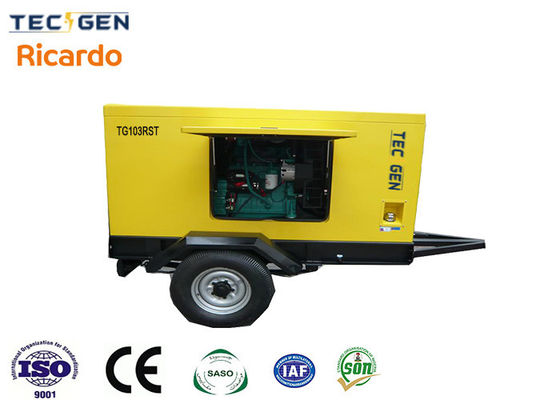

75kW Mobile Trailer Generator Ricardo Generator With Trailer For Easy Moveable Operation 0



75kW Mobile Trailer Generator Specifications:



75kW Mobile Trailer Generator Details
Genset Type Silent & Trailer
Model TG103RST
Frequency 50Hz
Speed 1500rpm
Voltage 220/400 V
Phase Three Phase
Prime Power 94kVA / 75kW
Standby Power 103kVA / 83kW
Dimensions L2850 x W1550 x H2000mm
Weight 2100kgs
Fuel Capacity 8 Hours Running Capacity
General Features
Engine Ricardo Radiator 50degrees max, fans driven by belt with safety guard
Alternator Tecgen Charger 24V trickle charger
Controller MEBAY Governor Mechanical or electronic
Circuit Breaker DELIXI / CHNT / ABB Canopy Soundproof made by galvanized steel plate
ATS AISIKAI/ABB Filters Dry type air filter, fuel filter, oil filter
Fuel Tank 8hours / 12hours / 24hours, or as required Absorber High strength rubber
Start System 12/24V electric start Muffler Ripple flex exhaust pipe, exhaust siphon, flange
Battery Varta Maintenance free type Manuals Complete with engine, alternator and genset
Engine Technical Data
Brand Weifang Ricardo
Engine Model R6105ZD
Rated Power 83kW
Cylinder 6 Cylinder
Bore*Stroke 105*125mm
Displacement 6.49
Aspiration Turbocharged
Speed 1500rpm
Cooling System Water Cooled
Fuel Consumption at 100% Load 21.4
Speed Governor MECH
Start System 12 / 24V Electric Starter
Option Engine Brands
Cummins, Deutz, Weifang Ricardo, Perkins, Yangdong, Quanchai, FAWDE, SDEC, Weichai, Yuchai, VMAN, JX ISUZU, YANMAR, Beinei Aircooled, Caterpillar, MITSUBISHI., ETC
Alternator Technical Data
Brand Tecgen
Alternator Model TGI274S75
Rated Power 75kW
Speed 1500rpm
Frequency 50Hz
Phase Three Phase, Four Wire
Power Factor 0.8
Exciter type Single bearing, brushless, Self-excited
Voltage adjust range ≥5%
Insulation Grade H
Protection Grade IP23
Option Alternator Brands
Stamford, Leory Somer, Meccalte, Marathon, Tecgen
Controller System
Brand MEBAY
Model DC52D
Functions Control with AMF module
Static with auto. battery charger
Emergency stop push button
ATS Connection
Alarms Over and Under Speed
Low and High Battery Voltage
Start and Stop Failure
Charge Fail
Over Current
Under / Over Generator Voltage
Low Oil Pressure
Emergency Stop
High Engine Temperature
Over Load
OPTIONAL EQUIPMENTS
Daily Fuel Tank Parallel Panel Remote Control Panel Soundproof Type
Engine Heater Permanent Magnet Auto. Transfer Switch Trailer Type
Water Heater Generator (PMG) Switch Box Spare Parts





Usage:


Perfect for a wide range of applications, including construction sites, mining operations, outdoor events, remote communities, and as a backup power source for hospitals, schools, and critical infrastructure. Its versatility ensures you're never left in the dark.

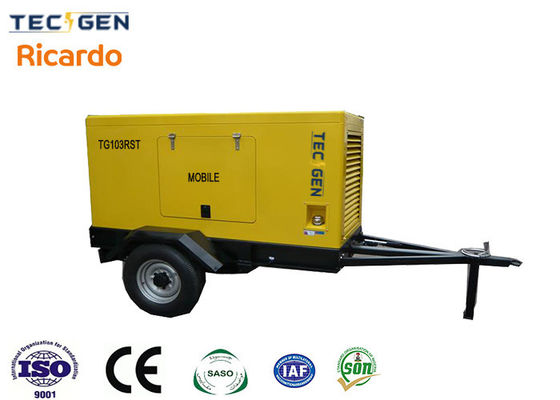

75kW Mobile Trailer Generator Ricardo Generator With Trailer For Easy Moveable Operation 1



Advantages:



  • Instant Power: Provides instant power, allowing you to get back to work or keep the party going without delay.
  • Durability: Constructed with high-quality materials, the Ricardo Generator is built to last, even in harsh conditions.
  • Eco-Friendly: Advanced combustion technology reduces emissions, making it an environmentally responsible choice.
  • Cost-Effective: Long service life and low maintenance costs ensure a great return on investment.





Options:



  • Customization: Available in various colors and can be customized with additional features like extra outlets, larger fuel tanks, or specialized enclosures.
  • Accessories: Includes a comprehensive set of accessories, such as wheel chocks, battery charger, and tool kit, for seamless operation and maintenance.





FAQs:


Q: How long can the 75kW Mobile Trailer Generator run on a full tank?
A: Depending on the load, it can run for up to 12 hours on a full tank, ensuring extended operation without the need for frequent refueling.

Q: Is it easy to transport?
A: Absolutely! With its mobile trailer design and roadworthy tires, it's designed for easy towing and maneuverability, even over rough terrain.

Q: Does it come with a warranty?
A: Yes, the Ricardo Generator 75kW Mobile Trailer Generator comes with a comprehensive warranty, covering manufacturing defects and ensuring your peace of mind.





Experience the unbeatable performance and reliability of the Ricardo Generator 75kW Mobile Trailer Generator – the ultimate power solution for all your portable energy needs. Order now and unleash the power of uninterrupted energy!
