110kVA Mobile Trailer Generator Ricardo Genset With Heavy Duty Trailer For Moveable Operation

Place of Origin Fuzhou, China
Brand Name Tecgen Power
Certification CE / SASO / SONCAP / COC / PVOC
Model Number TG110RST
Minimum Order Quantity 1 unit
Price Negotiation
Packaging Details Stretch film packaging
Delivery Time 20 Days
Payment Terms T/T, L/C
Supply Ability 200 Units Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Mobile Trailer Frequency 50Hz
Brand Ricardo Engine Model R6105ZLD
Engine Cylinder 6 Cylinder Alternator TGI274S80
Prime Power 100kVA Max Power 110kVA
Highlight

110kVA Mobile trailer generator

,

Heavy Duty Mobile trailer generator

,

Ricardo Mobile trailer generator

Leave a Message
Product Description

110kVA Mobile trailer generator ricardo genset with heavy duty trailer for moveable operation





Product Description: 110kVA Mobile Trailer Generator by Ricardo Genset



Standard Features:


Introducing the ultimate in portable power solutions, the 110kVA Mobile Trailer Generator from Ricardo Genset. Engineered for reliability and efficiency, this generator boasts a robust diesel engine capable of delivering a continuous output of 110 kilovolt-amperes, making it ideal for a wide range of applications. Standard features include an automatic voltage regulator ensuring stable power output, a long-lasting fuel tank for extended runtime, and a user-friendly control panel with intuitive display for easy monitoring and operation. The trailer-mounted design ensures seamless transportation and quick deployment, making it the go-to choice for emergency power, construction sites, events, and more.





Key Features:



  • Powerful Performance: The 110kVA Mobile Generator harnesses the power of a high-performance diesel engine, delivering clean and reliable energy to power even the most demanding equipment.
  • Mobility & Durability: Mounted on a sturdy trailer with heavy-duty wheels and suspension, it's designed for easy towing and withstands rugged terrain, ensuring your power source stays with you wherever you go.
  • Intelligent Control: Equipped with an advanced control system, it automatically adjusts to maintain optimal performance and alerts users of any potential issues, minimizing downtime.
  • Low Noise & Emission: Incorporating advanced soundproofing materials and emission control technology, the Ricardo Genset operates quietly and environmentally friendly.
  • Quick Setup & Maintenance: With a streamlined design for easy access to components, routine maintenance and setup are hassle-free, keeping your generator running smoothly.

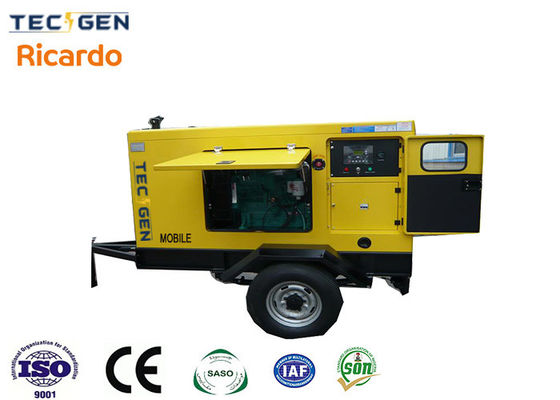

110kVA Mobile Trailer Generator Ricardo Genset With Heavy Duty Trailer For Moveable Operation 0



110kVA Mobile Trailer Generator Specifications:



110kVA Mobile Trailer Generator Details
Genset Type Silent & Trailer
Model TG110RST
Frequency 50Hz
Speed 1500rpm
Voltage 240/415 V
Phase Three Phase
Prime Power 100kVA / 80kW
Standby Power 110kVA / 88kW
Dimensions L3000 x W1650 x H2050mm
Weight 2300kgs
Fuel Capacity 8 Hours Running Capacity
General Features
Engine Ricardo Radiator 50degrees max, fans driven by belt with safety guard
Alternator Tecgen Charger 24V trickle charger
Controller MEBAY Governor Mechanical or electronic
Circuit Breaker DELIXI / CHNT / ABB Canopy Soundproof made by galvanized steel plate
ATS AISIKAI/ABB Filters Dry type air filter, fuel filter, oil filter
Fuel Tank 8hours / 12hours / 24hours, or as required Absorber High strength rubber
Start System 12/24V electric start Muffler Ripple flex exhaust pipe, exhaust siphon, flange
Battery Varta Maintenance free type Manuals Complete with engine, alternator and genset
Engine Technical Data
Brand Weifang Ricardo
Engine Model R6105ZLD
Rated Power 100kW
Cylinder 6 Cylinder
Bore*Stroke 105*125mm
Displacement 6.49
Aspiration Turbocharged & Intercooled
Speed 1500rpm
Cooling System Water Cooled
Fuel Consumption at 100% Load 22.9
Speed Governor MECH
Start System 12 / 24V Electric Starter
Option Engine Brands
Cummins, Deutz, Weifang Ricardo, Perkins, Yangdong, Quanchai, FAWDE, SDEC, Weichai, Yuchai, VMAN, JX ISUZU, YANMAR, Beinei Aircooled, Caterpillar, MITSUBISHI., ETC
Alternator Technical Data
Brand Tecgen
Alternator Model TGI274S80
Rated Power 80kW
Speed 1500rpm
Frequency 50Hz
Phase Three Phase, Four Wire
Power Factor 0.8
Exciter type Single bearing, brushless, Self-excited
Voltage adjust range ≥5%
Insulation Grade H
Protection Grade IP23
Option Alternator Brands
Stamford, Leory Somer, Meccalte, Marathon, Tecgen
Controller System
Brand Mebay
Model DC52D
Functions Control with AMF module
Static with auto. battery charger
Emergency stop push button
ATS Connection
Alarms Over and Under Speed
Low and High Battery Voltage
Start and Stop Failure
Charge Fail
Over Current
Under / Over Generator Voltage
Low Oil Pressure
Emergency Stop
High Engine Temperature
Over Load
OPTIONAL EQUIPMENTS
Daily Fuel Tank Parallel Panel Remote Control Panel Soundproof Type
Engine Heater Permanent Magnet Auto. Transfer Switch Trailer Type
Water Heater Generator (PMG) Switch Box Spare Parts





Usage:


Perfect for a multitude of industries, the 110kVA Mobile Trailer Generator by Ricardo Genset is an essential tool for construction companies, event organizers, mining operations, hospitals, and any other sector requiring reliable backup or primary power sources. Whether it's powering heavy machinery, lighting up a concert venue, or keeping critical systems running during emergencies, this generator delivers.

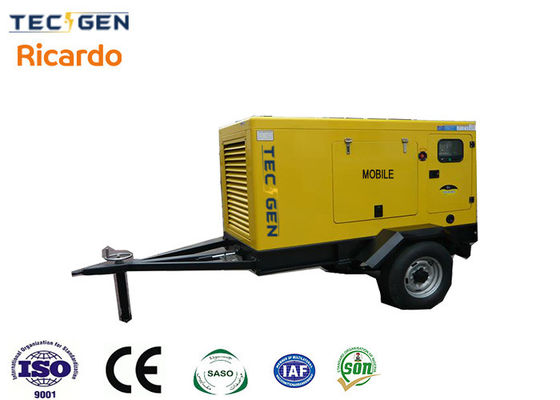

110kVA Mobile Trailer Generator Ricardo Genset With Heavy Duty Trailer For Moveable Operation 1



Advantages:



  • Versatility: Its high capacity and mobile design make it suitable for a vast array of applications, ensuring you're always prepared.
  • Cost-Effectiveness: Long runtime and fuel efficiency translate into lower operational costs over time.
  • Peace of Mind: With automatic protection features and 24/7 customer support, you can trust Ricardo Genset to keep your power needs covered.
  • Eco-Friendly: Reduced emissions and low noise levels contribute to a greener, more sustainable operation.





Options:



  • Custom Paint Job: Personalize your generator with a custom color scheme to match your brand or fleet.
  • Additional Outlets: Upgrade to include more power outlets or specialized sockets for specific equipment.
  • Remote Monitoring System: Install a remote monitoring system for real-time tracking and control, enhancing operational efficiency.
  • Extended Warranty: Protect your investment with an extended warranty package for added peace of mind.





FAQs:


Q: How long can the 110kVA Mobile Trailer Generator run on a full tank?
A: Depending on the load, it can run for up to 12 hours on a full tank, ensuring continuous power supply.

Q: Is it easy to maintain?
A: Absolutely! The generator is designed for easy access to all maintenance points, and our comprehensive manual provides step-by-step instructions.

Q: Can I customize the generator to my specific needs?
A: Yes, we offer a range of customization options, including paint jobs, additional outlets, and remote monitoring systems, to suit your unique requirements.

Q: How does it handle rough terrain?
A: The heavy-duty trailer and suspension system are specifically engineered to navigate uneven and challenging terrains, ensuring stable transportation and deployment.





With the 110kVA Mobile Trailer Generator by Ricardo Genset, you're investing in a powerful, reliable, and versatile power solution that will keep your operations running smoothly, no matter the challenge. Experience the difference of Ricardo Genset today!
