100kW Mobile Trailer Generator Ricardo Generator Set With Two Wheel Trailer For Easy Moveable

Place of Origin Fuzhou, China
Brand Name Tecgen Power
Certification CE / SASO / SONCAP / COC / PVOC
Model Number TG125RST
Minimum Order Quantity 1 unit
Price Negotiation
Packaging Details Stretch film packaging
Delivery Time 20 Days
Payment Terms T/T, L/C
Supply Ability 200 Units Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Mobile Trailer Frequency 50Hz
Brand Ricardo Engine Model R6105AZLD
Engine Power 110kW Alternator TGI274S100
Prime Power 125kVA / 100kW Max Power 138kVA / 110kW
Highlight

100kW Mobile Trailer Generator

,

Ricardo Trailer Generator

,

100kW Trailer Generator

Leave a Message
Product Description

100kW Mobile trailer generator ricardo generator set with two wheel trailer for easy moveable





Product Description: 100kW Mobile Trailer Generator by Ricardo Generator Set





Standard Features:



Introducing the 100kW Mobile Trailer Generator from Ricardo Generator Set, the ultimate solution for all your portable power needs. Crafted with precision engineering, this generator boasts a robust diesel engine that delivers reliable and consistent power output, making it an ideal companion for construction sites, emergency relief operations, or any remote location where electricity is scarce. Its standard features include:



  • Powerful 100kW Capacity: Equipped with a high-performance engine, our generator seamlessly supplies up to 100kW of clean and stable power, ensuring your equipment runs smoothly without interruption.
  • Mobile Trailer Design: Mounted on a sturdy trailer frame, this generator is easily towable by most vehicles, allowing for swift deployment and relocation.
  • Automatic Voltage Regulation (AVR): Maintains a stable output voltage under varying load conditions, ensuring sensitive electronic devices are protected from voltage fluctuations.
  • Long-Lasting Fuel Tank: A spacious fuel tank ensures extended runtime, reducing the need for frequent refueling and maximizing operational efficiency.
  • Sound-Attenuated Enclosure: The generator is housed in a soundproof enclosure, significantly reducing noise levels, making it suitable for use in noise-sensitive areas.





Key Features:



At the heart of the 100kW Mobile Trailer Generator lies its unparalleled versatility and reliability. Key highlights include:



  • Instantaneous Starting: Equipped with an advanced starting system, the generator fires up instantly, ensuring power is available when you need it most.
  • Remote Control Capability: Comes with a remote control unit, allowing for convenient operation from a safe distance, enhancing user safety.
  • Eco-Mode Function: Automatically adjusts engine speed to match load requirements, reducing fuel consumption and emissions, making it environmentally friendly.
  • Comprehensive Monitoring Panel: Displays vital operational parameters such as voltage, frequency, and fuel level, providing real-time feedback for easy troubleshooting and maintenance.

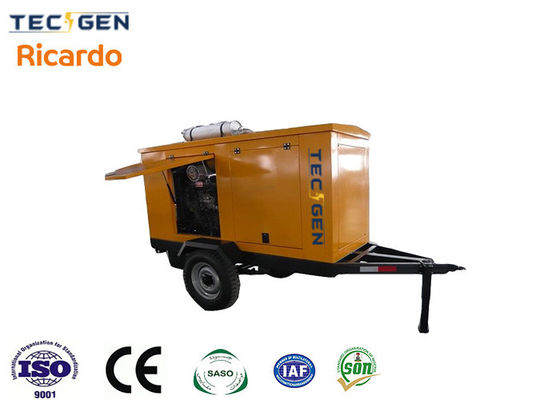

100kW Mobile Trailer Generator Ricardo Generator Set With Two Wheel Trailer For Easy Moveable 0



100kW Mobile Trailer Generator Specifications:



100kW Mobile Trailer Generator Details
Genset Type Silent & Trailer
Model TG125RST
Frequency 50Hz
Speed 1500rpm
Voltage 240/415 V
Phase Three Phase
Prime Power 125kVA / 100kW
Standby Power 138kVA / 110kW
Dimensions L3200 x W1750 x H2150mm
Weight 2600kgs
Fuel Capacity 8 Hours Running Capacity
General Features
Engine Ricardo Radiator 50degrees max, fans driven by belt with safety guard
Alternator Tecgen Charger 24V trickle charger
Controller MEBAY Governor Mechanical or electronic
Circuit Breaker DELIXI / CHNT / ABB Canopy Soundproof made by galvanized steel plate
ATS AISIKAI/ABB Filters Dry type air filter, fuel filter, oil filter
Fuel Tank 8hours / 12hours / 24hours, or as required Absorber High strength rubber
Start System 12/24V electric start Muffler Ripple flex exhaust pipe, exhaust siphon, flange
Battery Varta Maintenance free type Manuals Complete with engine, alternator and genset
Engine Technical Data
Brand Weifang Ricardo
Engine Model R6105AZLD
Rated Power 110kW
Cylinder 6 Cylinder
Bore*Stroke 105*130mm
Displacement 6.75L
Aspiration Turbocharged & Intercooled
Speed 1500rpm
Cooling System Water Cooled
Fuel Consumption at 100% Load 22.9
Speed Governor MECH
Start System 12 / 24V Electric Starter
Option Engine Brands
Cummins, Deutz, Weifang Ricardo, Perkins, Yangdong, Quanchai, FAWDE, SDEC, Weichai, Yuchai, VMAN, JX ISUZU, YANMAR, Beinei Aircooled, Caterpillar, MITSUBISHI., ETC
Alternator Technical Data
Brand Tecgen
Alternator Model TGI274S100
Rated Power 100kW
Speed 1500rpm
Frequency 50Hz
Phase Three Phase, Four Wire
Power Factor 0.8
Exciter type Single bearing, brushless, Self-excited
Voltage adjust range ≥5%
Insulation Grade H
Protection Grade IP23
Option Alternator Brands
Stamford, Leory Somer, Meccalte, Marathon, Tecgen
Controller System
Brand Mebay
Model DC52D
Functions Control with AMF module
Static with auto. battery charger
Emergency stop push button
ATS Connection
Alarms Over and Under Speed
Low and High Battery Voltage
Start and Stop Failure
Charge Fail
Over Current
Under / Over Generator Voltage
Low Oil Pressure
Emergency Stop
High Engine Temperature
Over Load
OPTIONAL EQUIPMENTS
Daily Fuel Tank Parallel Panel Remote Control Panel Soundproof Type
Engine Heater Permanent Magnet Auto. Transfer Switch Trailer Type
Water Heater Generator (PMG) Switch Box Spare Parts





Usage:

Ideal for a wide range of applications, the 100kW Mobile Trailer Generator from Ricardo Generator Set is perfect for:



  • Powering construction equipment at remote job sites
  • Emergency power supply during natural disasters or power outages
  • Temporary power solutions for events, festivals, and outdoor gatherings
  • Mobile healthcare facilities and disaster relief operations

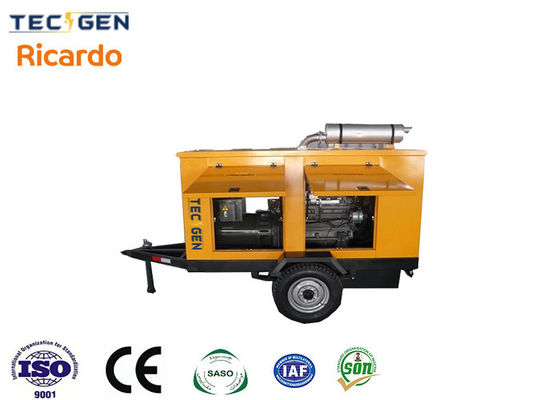

100kW Mobile Trailer Generator Ricardo Generator Set With Two Wheel Trailer For Easy Moveable 1



Advantage:



The primary advantage of choosing the 100kW Mobile Trailer Generator lies in its unparalleled portability, durability, and performance. With its ability to deliver massive power output on-demand, combined with the convenience of easy transportation, it outshines traditional stationary generators in terms of flexibility and versatility. Moreover, its energy-efficient design ensures minimal operational costs, making it a cost-effective investment for any business or organization.





Options:

Customers can choose from various options to tailor the generator to their specific needs, including:

  • Different engine brands and configurations
  • Extended warranty packages
  • Additional fuel tanks for longer runtimes
  • Custom paint jobs and branding options

FAQs:



Q: What is the maximum runtime of the 100kW Mobile Trailer Generator?
A: The maximum runtime depends on the size of the fuel tank and the load applied. With a full tank, it can run for several hours before refueling is required.

Q: Can I operate the generator remotely?
A: Yes, our generator comes with a remote control unit, allowing for safe and convenient operation from a distance.

Q: Is the generator suitable for use in harsh environments?
A: Absolutely. The generator is designed to withstand tough conditions, with a sound-attenuated enclosure that protects it from dust, debris, and extreme temperatures.

Q: What maintenance is required?
A: Regular maintenance, such as checking oil levels, fuel filters, and air filters, is essential to ensure optimal performance and prolong the generator's lifespan. Our comprehensive monitoring panel makes these tasks straightforward and hassle-free.





By incorporating the 100kW Mobile Trailer Generator from Ricardo Generator Set into your operations, you'll enjoy a reliable, portable, and powerful source of electricity that will keep your business running smoothly, no matter where the job takes you. Experience the difference today!
