50kVA 1800rpm Weichai Diesel Generator With Soundproof Canopy Outdoor Use
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Genset Type | Silent-type | Speed | 1800rpm |
|---|---|---|---|
| Engine Model | WP2.3D58E201 | Engine Power | 53kW |
| Alternator | TGI224S40 | Prime Output | 50kVA / 40kW |
| Controller | DEIF SGC 420 | Fuel Capacity | 8 Hours Running Capacity |
| Highlight | 1800rpm Weichai diesel generator,50kVA Weichai diesel generator,outdoor use Weichai diesel generator |
||
Product Description

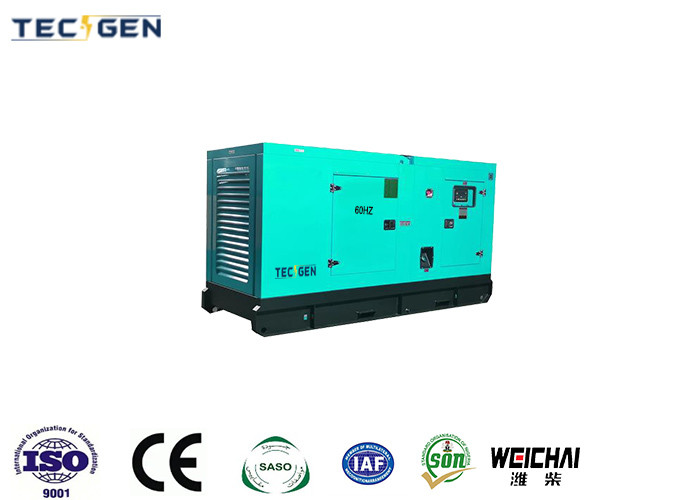

50kVA Weichai diesel generator 1800rpm diesel generator with soundproof canopy outdoor use
Standard Features:
Introducing our flagship 50kVA Weichai Diesel Generator, designed for unparalleled reliability and performance. Powered by a Weichai WP2.3D58E201 engine, this generator boasts a robust 4-cylinder configuration with a displacement of 2.3L, ensuring a smooth and efficient power output. Operating at a steady 1800rpm, it complies with the industry's standards for 60Hz frequency, making it an ideal choice for a wide range of applications. The silent design with a galvanized steel canopy ensures minimal noise disturbance, while its compact dimensions (L2300 x W980 x H1200mm) and lightweight construction (1300kgs) facilitate easy transportation and installation.
Key Features:
- Powerful Engine: Equipped with a turbocharged & intercooled Weichai engine, delivering a prime power of 50kVA/40kW and a standby power of 55kVA/44kW, ensuring uninterrupted power supply even during peak demand.
- Silent Operation: The generator is housed in a soundproof canopy, reducing noise levels to a comfortable level, perfect for both indoor and outdoor use.
- Long Runtime: With an 8-hour fuel capacity, the generator can power your essential equipment for extended periods, minimizing the need for frequent refueling.
- Advanced Controller: The DEIF SGC-420 controller offers comprehensive monitoring and protection, including AMF (Automatic Mains Failure) functionality, ensuring seamless operation and quick response to any abnormalities.
- Durability & Maintenance: Featuring high-quality components such as Varta maintenance-free batteries, Tecgen alternator, and high-strength rubber absorber, this generator is built to last.
50kVA Weichai Diesel Generator Specifications:
| 50kVA Weichai Diesel Generator Details | |||
| Genset | Type | Silent | |
| Model | TG55WCSD6 | ||
| Frequency | 60Hz | ||
| Speed | 1800rpm | ||
| Voltage | 220V | ||
| Phase | Three Phase | ||
| Prime Power | 50kVA / 40kW | ||
| Standby Power | 55kVA / 44kW | ||
| Dimensions | L2300 x W980 x H1200mm | ||
| Weight | 1300kgs | ||
| Fuel Capacity | 8 Hours Running Capacity | ||
| General Features | |||
| Engine | Weichai | Radiator | 50degrees max, fans driven by belt with safety guard |
| Alternator | Tecgen | Charger | 24V trickle charger |
| Controller | DEIF SGC-420 | Governor | Mechanical or electronic |
| Circuit Breaker | DELIXI / CHNT / ABB | Canopy | Soundproof made by galvanized steel plate |
| ATS | AISIKAI/ABB | Filters | Dry type air filter, fuel filter, oil filter |
| Fuel Tank | 8hours / 12hours / 24hours, or as required | Absorber | High strength rubber |
| Start System | 12/24V electric start | Muffler | Ripple flex exhaust pipe, exhaust siphon, flange |
| Battery | Varta Maintenance free type | Manuals | Complete with engine, alternator and genset |
| Weichai Engine Technical Data | |||
| Brand | Weichai | ||
| Engine Model | WP2.3D58E201 | ||
| Rated Power | 53kW | ||
| Cylinder | 4 Cylinder | ||
| Bore*Stroke | 89*92mm | ||
| Displacement | 2.3L | ||
| Aspiration | Turbocharged & Intercooled | ||
| Speed | 1800rpm | ||
| Cooling System | Water Cooled | ||
| Fuel Consumption at 100% Load | 11L | ||
| Speed Governor | Electric | ||
| Start System | 12 / 24V Electric Starter | ||
| Option Engine Brands | |||
| Cummins, Deutz, Weifang Ricardo, Perkins, Yangdong, Quanchai, FAWDE, SDEC, Weichai, Yuchai, VMAN, JX ISUZU, YANMAR, Beinei Aircooled, Caterpillar, MITSUBISHI., ETC | |||
| Alternator Technical Data | |||
| Brand | Tecgen | ||
| Alternator Model | TGI224S40 | ||
| Rated Power | 40kW | ||
| Speed | 1800rpm | ||
| Frequency | 60Hz | ||
| Phase | Three Phase, Four Wire | ||
| Power Factor | 0.8 | ||
| Exciter type | Single bearing,brushless,Self-excited | ||
| Voltage adjust range | ≥5% | ||
| Insulation Grade | H | ||
| Protection Grade | IP23 | ||
| Option Alternator Brands | |||
| Stamford, Leory Somer, Meccalte, Marathon, Tecgen | |||
| Controller System | |||
| Brand | DEIF | ||
| Model | SGC-420 | ||
| Functions | Control with AMF module | ||
| Static with auto. battery charger | |||
| Emergency stop push button | |||
| ATS Connection & RS485 & CANbus & PLS & BTS Functions | |||
| Alarms | Over and Under Speed | ||
| Low and High Battery Voltage | |||
| Start and Stop Failure | |||
| Charge Fail | |||
| Over Current | |||
| Under / Over Generator Voltage | |||
| Low Oil Pressure | |||
| Emergency Stop | |||
| High Engine Temperature | |||
| Over Load | |||
| OPTIONAL EQUIPMENTS | |||
| Daily Fuel Tank | Parallel Panel | Remote Control Panel | Soundproof Type |
| Engine Heater | Permanent Magnet | Auto. Transfer Switch | Trailer Type |
| Water Heater | Generator (PMG) | Switch Box | Spare Parts |
Usage:
The 50kVA Weichai Diesel Generator is suitable for various applications, including but not limited to emergency backup power for hospitals, data centers, commercial buildings, and industrial sites. Its versatility and reliability make it an excellent choice for any organization requiring a dependable power source.
Advantages:
- Energy Efficiency: The 1800rpm diesel engine operates at optimal efficiency, minimizing fuel consumption and reducing operational costs.
- Easy Maintenance: With accessible service points and user-friendly manuals, maintenance is straightforward, keeping your generator running smoothly.
- Flexibility: Optional equipment such as parallel panels, remote control panels, and auto-transfer switches offer customization to suit your specific needs.
- Eco-Friendly: Low noise and emission levels make this generator an environmentally conscious choice.
Optional Equipment:
- Daily fuel tanks for extended autonomy
- Parallel panels for increased power capacity
- Remote control panels for convenient monitoring and control
- Trailer-mounted options for easy transportation
- Engine heaters and water heaters for cold climate operation
FAQs:
Q: What is the fuel consumption of this generator at 100% load?
A: The fuel consumption at 100% load is approximately 11L per hour.
Q: Can this generator be used in a residential setting?
A: Yes, its silent design and compact size make it suitable for both residential and commercial use.
Q: What is the warranty period for this product?
A: Please refer to our warranty policy for detailed information. We offer comprehensive warranties to ensure your peace of mind.
Experience the ultimate in reliable power generation with our 50kVA Weichai Diesel Generator. Order now and enjoy uninterrupted power supply, backed by superior performance and exceptional customer support.
