1800rpm 20kW Silent Genset Super Silent Weichai Generator Standby For Commercial Buildings
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Silent & Soundproof | Output Type | AC 3 Phase Or 1 Phase |
|---|---|---|---|
| Frequency | 60Hz | Engine Brand | Weichai |
| Engine Model | WP2.3D30E201 | Alternator | Tecgen TGI184S20 |
| Prime Power | 20kW / 25kVA | Governor | Electric |
| Highlight | 20kW silent genset,commercial buildings silent genset,1800rpm silent genset |
||
Product Description

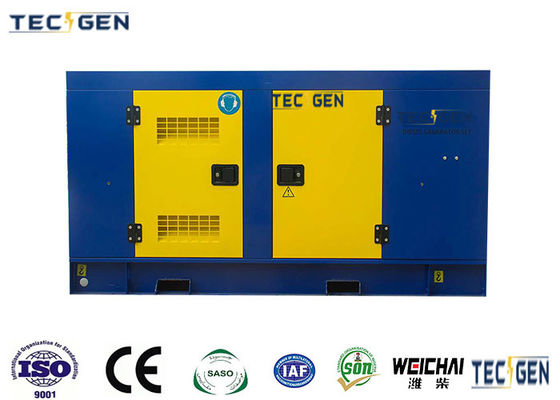

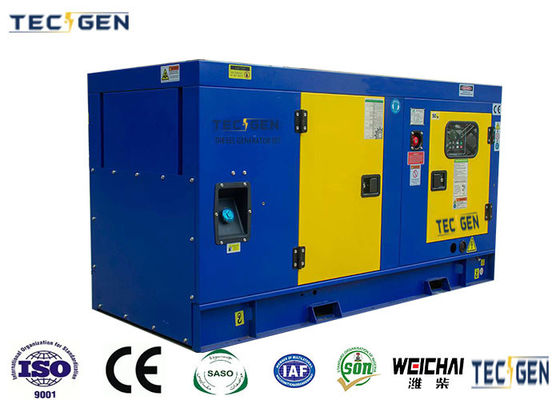

1800rpm 20kW silent genset super silent Weichai generator standby for commercial buildings
Product Description: 1800rpm 20kW Silent Genset with Weichai Engine
Standard Features:
Introducing our premium 1800rpm 20kW Silent Genset, powered by the renowned Weichai diesel engine. This generator set is designed to meet the highest standards of reliability, efficiency, and quiet operation. Equipped with a 4-cylinder WP2.3D30E201 engine delivering 27kW of rated power, it ensures seamless power supply for a wide range of applications. The standard features include a 240V AC three-phase output, 60Hz frequency, and a prime power rating of 25kW, making it ideal for both prime and standby power requirements.
Key Features:
- Ultra-Silent Operation: Engineered with a soundproof canopy made from galvanized steel plate, this genset operates at minimal noise levels, ensuring a peaceful environment for any setting.
- Built-in ATS: Equipped with a 63A automatic transfer switch (ATS), it seamlessly switches between utility and generator power, ensuring uninterrupted power supply.
- Efficient Cooling System: Water-cooled engine with a maximum radiator temperature of 50°C ensures optimal engine performance and longevity.
- Advanced Controller: The Smartgen HGM6110N controller offers comprehensive monitoring and protection, including automatic battery charging, emergency stop, and multiple communication protocols (RS485, CANbus, etc.).
- Durability & Maintenance-Free: Fitted with a Varta maintenance-free battery and high-quality components, this genset is designed for long-lasting performance with minimal upkeep.
1800rpm 20kW Silent Genset Specifications:
| 1800rpm 20kW Silent Genset Details | |||
| Weichai Genset | Type | Silent | |
| Model | TG28WCSD6 | ||
| Frequency | 60Hz | ||
| Speed | 1800rpm | ||
| Voltage | 240V | ||
| Phase | AC Three Phase | ||
| Prime Power | 20kW / 25kVA | ||
| Standby Power | 22kW / 28kVA | ||
| Rate Current | 60.1A | ||
| ATS | 63A Built-in ATS | ||
| Dimensions | L2200 x W890 x H1250mm | ||
| Weight | 800kgs | ||
| Fuel Capacity | 8 Running Hours | ||
| Option Types | Single Phase, Open Type | ||
| General Features | |||
| Engine | Weichai | Radiator | 50degrees max, fans driven by belt with safety guard |
| Alternator | Tecgen | Charger | 24V trickle charger |
| Controller | Smartgen HGM6110N | Governor | Mechanical or electronic |
| Circuit Breaker | DELIXI / CHNT / ABB | Canopy | Soundproof made by galvanized steel plate |
| ATS | AISIKAI/ABB | Filters | Dry type air filter, fuel filter, oil filter |
| Fuel Tank | 8hours / 12hours / 24hours, or as required | Absorber | High strength rubber |
| Start System | 12/24V electric start | Muffler | Ripple flex exhaust pipe, exhaust siphon, flange |
| Battery | Varta Maintenance free type | Manuals | Complete with engine, alternator and genset |
| Weichai Diesel Engine Technical Data | |||
| Brand | Weichai | ||
| Engine Model | WP2.3D30E201 | ||
| Rated Power | 27kW | ||
| Cylinder | 4 Cylinder | ||
| Bore*Stroke | 89*92mm | ||
| Displacement | 2.3L | ||
| Aspiration | Natural Intake | ||
| Speed | 1800rpm | ||
| Cooling System | Water Cooled | ||
| Fuel Consumption at 100% Load | 5.7L | ||
| Speed Governor | Electric | ||
| Start System | 12V Electric Starter | ||
| Option Engine Brands | |||
| Cummins, Deutz, Weifang Ricardo, Perkins, Yangdong, Quanchai, FAWDE, SDEC, Weichai, Yuchai, VMAN, JX ISUZU, YANMAR, Beinei Aircooled, Caterpillar, MITSUBISHI., ETC | |||
| AC Alternator Technical Data | |||
| Brand | Tecgen | ||
| Alternator Model | TGI184S20 | ||
| Rated Power | 20kW | ||
| Speed | 1800rpm | ||
| Frequency | 60Hz | ||
| Phase | Three Phase, Four Wire | ||
| Power Factor | 0.8 | ||
| Exciter type | Single bearing, brushless, Self-excited | ||
| Voltage adjust range | ≥5% | ||
| Insulation Grade | H | ||
| Protection Grade | IP23 | ||
| Option Alternator Brands | |||
| Stamford, Leory Somer, Meccalte, Marathon, Tecgen | |||
| Controller System | |||
| Brand | Smartgen | ||
| Model | HGM6110N | ||
| Functions | Control with AMF module | ||
| Static with auto. battery charger | |||
| Emergency stop push button | |||
| ATS Connection & RS485 & CANbus & PLS & BTS Functions | |||
| Alarms | Over and Under Speed | ||
| Low and High Battery Voltage | |||
| Start and Stop Failure | |||
| Charge Fail | |||
| Over Current | |||
| Under / Over Generator Voltage | |||
| Low Oil Pressure | |||
| Emergency Stop | |||
| High Engine Temperature | |||
| Over Load | |||
| OPTIONAL EQUIPMENTS | |||
| Daily Fuel Tank | Parallel Panel | Remote Control Panel | Soundproof Type |
| Engine Heater | Permanent Magnet | Auto. Transfer Switch | Trailer Type |
| Water Heater | Generator (PMG) | Switch Box | Spare Parts |
Usage:
Ideal for a variety of applications requiring reliable backup or prime power, including commercial buildings, data centers, hospitals, construction sites, and remote locations. Its compact dimensions (L2200 x W890 x H1250mm) and lightweight design (800kgs) make it easy to transport and install.
Advantages:
- Powerful & Efficient: With a standby power of 22kW and a fuel consumption of just 5.7L/100% load, it delivers exceptional value for money.
- Versatile Options: Choose from various fuel tank capacities (8 to 24 hours) and optional single-phase output, as well as open-type enclosures for different usage scenarios.
- Easy Maintenance: Access to key components is straightforward, and the inclusion of dry-type filters (air, fuel, oil) simplifies routine maintenance.
- Environmentally Friendly: Low noise emissions and efficient fuel consumption contribute to a greener footprint.
Optional Equipment:
- Daily fuel tank for extended runtime
- Parallel panel for increased power output
- Remote control panel for convenient operation
- Trailer type for easy transportation
- Engine heater and water heater for cold climates
- Permanent magnet generator (PMG) for specialized applications
FAQs:
Q: What is the noise level of this genset?
A: This 1800rpm 20kW Silent Genset is designed for ultra-quiet operation, ensuring minimal disturbance to your surroundings.
Q: Can I customize the fuel tank capacity?
A: Yes, we offer customizable fuel tank capacities ranging from 8 to 24 hours, or as per your specific requirements.
Q: Does this genset support single-phase output?
A: Yes, a single-phase option is available upon request, making it versatile for different applications.
Q: What is the warranty period for this product?
A: We offer a comprehensive warranty on our gensets, with details available upon request. Contact us for more information.
Experience the reliability and quiet power of our 1800rpm 20kW Silent Genset, powered by the trusted Weichai engine. Order now and enjoy uninterrupted power supply for all your critical applications.
