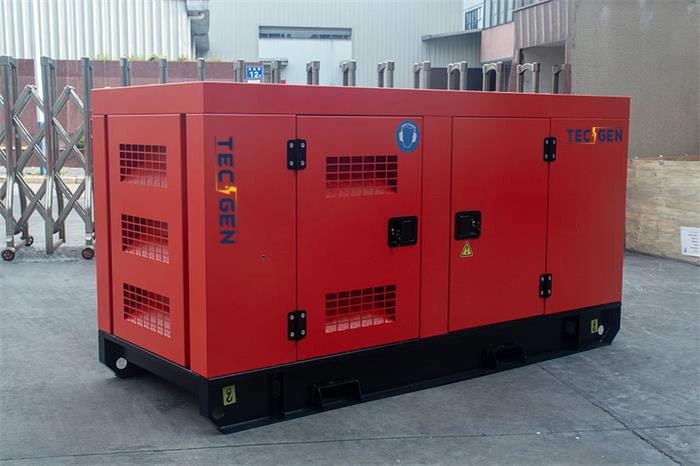

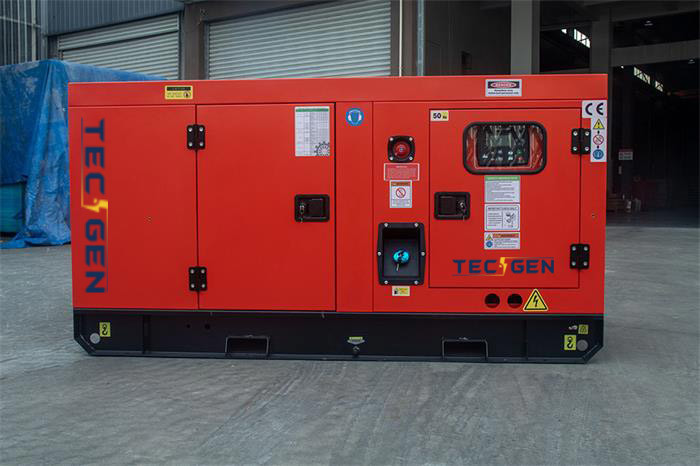

Prime 22kW Silent Genset With K4100D Diesel Engine For Standby Use

Prime 22kW silent genset silent Ricardo genset with K4100D diesel engine for standby use

Standard Features:

Introducing the Prime 22kW Silent Genset, a powerhouse designed for reliability, efficiency, and whisper-quiet operation. This state-of-the-art genset, model TG30KS, combines the robust performance of the Weifang Ricardo Series K4100D engine with the precision-crafted Tecgen TGI184S22 alternator, ensuring a seamless power supply for your critical applications. The genset is enclosed in a soundproof canopy, making it ideal for sensitive environments where noise is a concern.

Key Features:

• Powerful Engine: Equipped with the Weifang Ricardo Series K4100D engine, delivering a prime power of 22kW (28kVA) and a standby power of 24kW (30kVA). This 4-cylinder, naturally aspirated engine boasts a displacement of 3.61 liters and a compression ratio of 19:1, providing robust performance and fuel efficiency.
• Silent Operation: The silent and soundproof design ensures that the genset operates at a minimal noise level, making it perfect for residential, commercial, and industrial applications where noise reduction is crucial.
• Advanced Alternator: The Tecgen TGI184S22 alternator offers a rate output of 22kW, with a three-phase, star-connected winding and an insulation class of H. The AVR (Automatic Voltage Regulator) maintains steady-state voltage regulation within 1%, ensuring a stable power supply.
• Intelligent Controller: The TECGEN 6110U controller features AMF (Automatic Mains Failure) module, static with an automatic battery charger, an emergency stop push button, and ATS (Automatic Transfer Switch) connection, providing comprehensive control and monitoring capabilities.
• Compact Design: With dimensions of 1950mm (L) x 870mm (W) x 1100mm (H) and a weight of 790kg, the genset is designed for easy portability and installation.

Prime 22kW Silent Genset Datasheets:

Usage:

The Prime 22kW Silent Genset is ideal for a wide range of applications, including residential backup power, commercial operations, industrial processes, and remote locations. It provides a reliable and silent power source during power outages, ensuring continuous operation of essential equipment and appliances.

Advantages:

• Fuel Efficiency: The genset offers impressive fuel consumption rates, with a fuel consumption of 6.2 liters per hour at 100% load, making it an economical choice for long-term use.
• Durability: Built with high-quality materials and components, the genset is designed for long-lasting performance and durability, even in harsh environments.
• Ease of Maintenance: The engine and alternator are designed for easy access and maintenance, reducing downtime and operational costs.
• Versatility: With optional equipment such as ATS Box, Remote Control, and Trailer Type, the genset can be customized to meet specific requirements and applications.

Options:

• ATS Box: Automatically transfers power between the genset and the main supply, ensuring seamless operation during power outages.
• Remote Control: Allows for remote monitoring and control of the genset, providing convenience and peace of mind.
• Daily Fuel Tank: Provides a convenient fuel source for daily use, reducing the need for frequent refueling.
• Engine Heater: Keeps the engine warm during cold weather, ensuring easy startup and prolonged engine life.
• Water Heater: Ensures optimal engine temperature, enhancing performance and efficiency.
• PMG Generator: Provides a stable and reliable power source for sensitive electronic equipment.
• Parallel Panel: Allows for the connection of multiple gensets, providing additional power and redundancy.
• Fuel-Water Separator: Protects the engine from water contamination in the fuel supply.
• Trailer Type: Enables easy transportation of the genset to remote locations.
• 3000 Hours Spare Parts: Ensures that you have the necessary components on hand for routine maintenance and repairs.

FAQ:

Q: What is the noise level of the Prime 22kW Silent Genset?
A: The genset operates at a minimal noise level, making it ideal for sensitive environments.

Q: What is the fuel consumption rate of the genset?
A: The fuel consumption rate is 6.2 liters per hour at 100% load, making it an economical choice for long-term use.

Q: Can the genset be customized with optional equipment?
A: Yes, the genset can be customized with a range of optional equipment to meet specific requirements and applications.

Q: How durable is the Prime 22kW Silent Genset?
A: Built with high-quality materials and components, the genset is designed for long-lasting performance and durability, even in harsh environments.

By choosing the Prime 22kW Silent Genset, you are investing in a reliable, efficient, and silent power solution that meets your specific needs. Whether you require backup power for your home, business, or industrial operations, this genset delivers unparalleled performance and value. Don't settle for anything less than the ultimate silent Ricardo genset solution.
