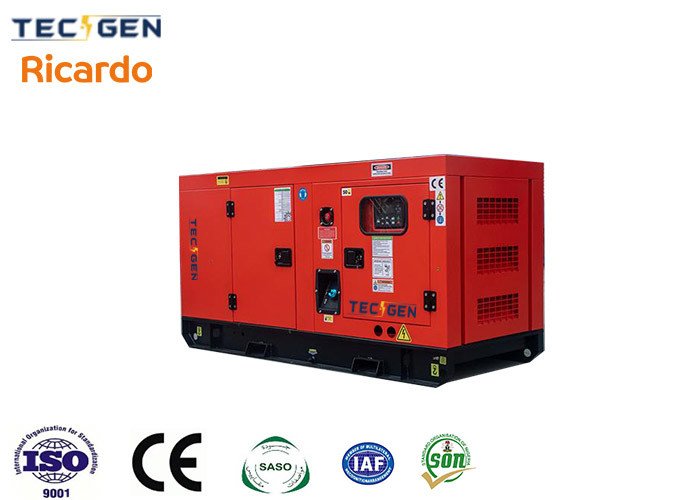

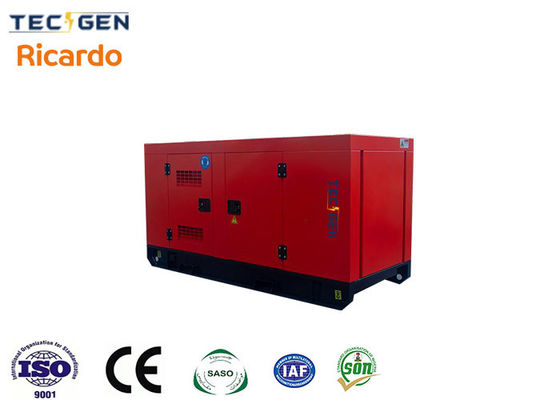

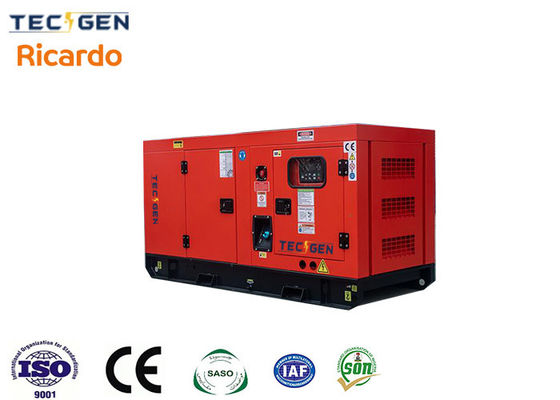

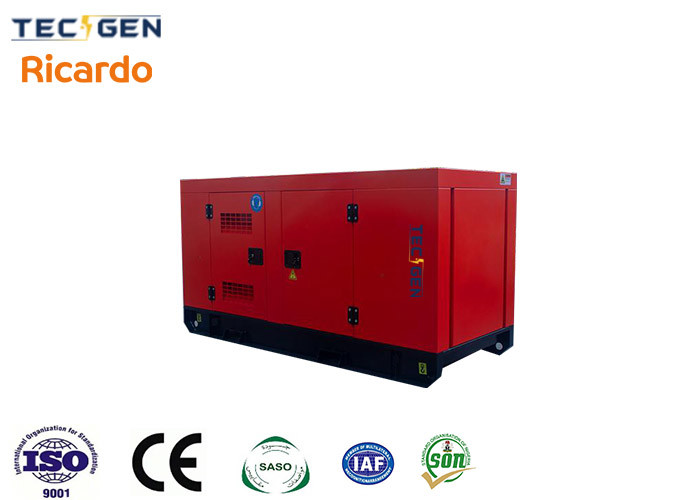

Single Phase 24kW Ricardo Genset With Soundproof Canopy Backup Use Only

Single phase 24kW genset Ricardo diesel genset with soundproof canopy backup use only

Standard Features:

Our Single Phase 24kW Genset, model TG33KS, is a silent and soundproof power solution designed for reliability and efficiency. With a frequency of 50Hz and a voltage of 220V, this genset offers prime power of 24kW and standby power of 26kW, ensuring a consistent and dependable power supply for your needs. The Ricardo K4100D engine, paired with the TECGEN TGI184S24 alternator, provides seamless operation and long-lasting durability.

Key Features:

1. Powerful Ricardo Engine: The Ricardo K4100D engine boasts a displacement of 3.168 liters and a compression ratio of 19:1, delivering 30.1kW of prime power. Its naturally aspirated, indirect injection system ensures optimal fuel efficiency and performance.
2. Efficient Alternator: The TECGEN TGI184S24 alternator provides a rated output of 24kW, with a winding connection in star configuration and an insulation class of H. This ensures a stable and reliable power output, ideal for various applications.
3. Advanced Controller: Equipped with the TECGEN 6110U controller, this genset offers features such as AMF (Automatic Mains Failure) module, static with automatic battery charger, emergency stop push button, and CANBUS & MPU versions for enhanced control and monitoring.
4. Compact Design: With dimensions of 1550-2050mm (length), 750-900mm (width), and 1000-1250mm (height), and a weight ranging from 750-960kgs, this genset is designed for easy portability and installation.

Single Phase 24kW Genset Datasheets:

Usage:

The Single Phase 24kW Genset is perfect for a wide range of applications, including residential backup power, commercial use, and industrial operations. Its silent and soundproof design makes it ideal for use in noise-sensitive environments, such as hospitals, schools, and office buildings.

Advantage:

1. Fuel Efficiency: The Ricardo K4100D engine offers impressive fuel efficiency, with fuel consumption rates of 7.7 liters per hour at 100% load, 5.8 liters per hour at 75% load, 3.9 liters per hour at 50% load, and 2.3 liters per hour at 25% load.
2. Reliability: With a robust design and high-quality components, this genset is built to last. The Ricardo engine and TECGEN alternator provide a dependable power source, ensuring minimal downtime and maximum uptime.
3. Ease of Use: The TECGEN 6110U controller makes it easy to monitor and control the genset, with features such as automatic start/stop, emergency stop, and battery charging.

Option:

Upgrade your Single Phase 24kW Genset with optional equipment such as an ATS (Automatic Transfer Switch) box, switch box, remote control, daily fuel tank, engine heater, water heater, PMG generator, parallel panel, fuel-water separator, trailer type, and 3000-hour spare parts kit. These options allow you to customize your genset to meet your specific needs and preferences.

FAQ:

1. What is the prime power output of the Single Phase 24kW Genset?
   Answer: The prime power output is 24kW.
2. What type of engine does this genset use?
   Answer: It uses a Ricardo K4100D diesel engine.
3. Is this genset silent and soundproof?
   Answer: Yes, it is designed to be silent and soundproof, making it ideal for noise-sensitive environments.
4. What are the dimensions and weight of the Single Phase 24kW Genset?
   Answer: The dimensions range from 1550-2050mm (length), 750-900mm (width), and 1000-1250mm (height), and the weight ranges from 750-960kgs.
5. What optional equipment is available for this genset?
   Answer: Optional equipment includes an ATS box, switch box, remote control, daily fuel tank, engine heater, water heater, PMG generator, parallel panel, fuel-water separator, trailer type, and 3000-hour spare parts kit.
