Diesel 30kW Electric Generator Silent Weichai Genset With Watercooled Engine For Construction Sites
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG41WCSD6 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging or Polywooden Package |
| Delivery Time | 20 Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Soundproof | Frequency | 60Hz / 1800rpm |
|---|---|---|---|
| Voltage | 230V | Engine Brand | Weichai |
| Engine Model | WP2.3D41E201 | Alternator Model | TGI184S30 |
| Output | 30kW / 38kVA | Color | Customed |
| Highlight | 30kW weichai generator,Electric weichai generator,Construction Sites weichai generator |
||
Product Description

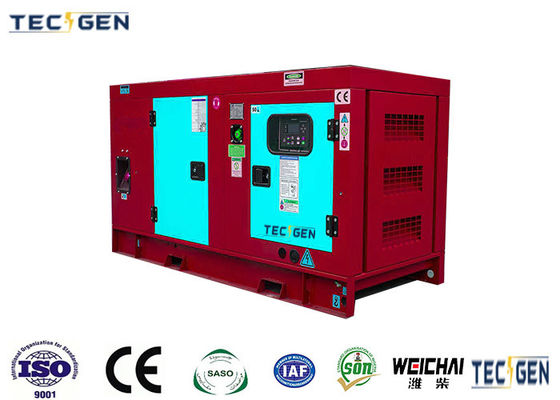

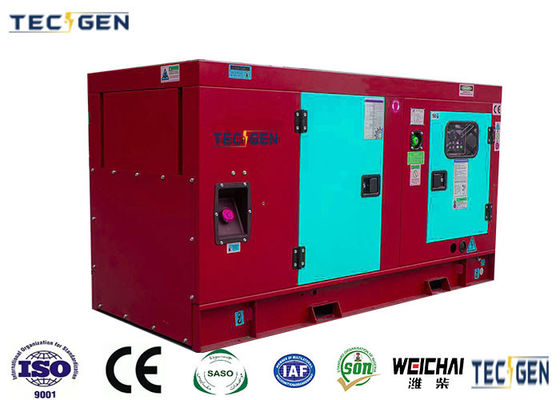

Diesel 30kW electric generator silent Weichai genset with watercooled engine for construction sites
Standard Features:
Introducing our premium Diesel 30kW Electric Generator, powered by a reliable Weichai genset. This generator set combines robust performance with silent operation, making it ideal for a wide range of applications. Standard features include a 60Hz frequency, 230V voltage, and three-phase power output, ensuring compatibility with most electrical systems. With a rated current of 95.4A, it delivers prime power of 30kW / 38kVA and standby power of 33kW / 41kVA, providing ample energy for your needs.
Key Features:
- Silent Operation: The Silent model, TG41WCSD6, features advanced sound-damping technology to minimize noise pollution, making it suitable for residential and sensitive commercial environments.
- Weichai Engine: Equipped with the powerful WP2.3D41E201 engine from Weichai, known for its durability and fuel efficiency. The engine boasts a turbocharged aspiration and indirect injection system, delivering smooth and reliable power.
- Smartgen Controller: The Smartgen HGM6120N controller offers advanced monitoring and control functions, including AMF (Automatic Mains Failure) module, static auto battery charger, emergency stop push button, and ATS (Automatic Transfer Switch) connection.
- Compact Design: With dimensions of 2300mm (L) x 980mm (W) x 1460mm (H) and a weight of 1300kg, this generator is designed for easy transportation and installation.
Diesel 30kW Electric Generator Datasheets:
| Technical Specification: | ||
| Diesel 30kW Electric Generator Specification | ||
| Genset Model | TG41WCD6 | TG41WCSD6 |
| Open | Silent | |
| Frequency | 60Hz | |
| Voltage | 230V | |
| Phase | 3 | |
| Rate Current | 95.4A | |
| Prime Power | 30kW / 38kVA | |
| Standby Power | 33kW / 41kVA | |
| Engine Model | WP2.3D41E201 | |
| Alternator Model | TGI184S30 | |
| Controller | Smartgen HGM6120N | |
| Weight & Dimensions | ||
| Length (mm) | 1750 | 2300 |
| Width (mm) | 840 | 980 |
| Height (mm) | 1360 | 1460 |
| Weight (kgs) | 900 | 1300 |
| Engine Specification | ||
| Brand | Weichai | |
| Engine Model | WP2.3D41E201 | |
| Prime/Standby power | 37kW / 41kW | |
| Injection | Indirect | |
| Aspiration | Turbocharged | |
| No. of cylinders | 4 | |
| Bore of Stroke | 89 x 92MM | |
| Displacement | 2.3L | |
| Cooling | water | |
| Compression Ratio | 17.3:1 | |
| Engine Oil capacity (L) | 6.7 | |
| Coolant Capacity ( In radiator) | 6.7 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 8.2 | |
| 75% Load (L/h) | 6.2 | |
| 50% Load (L/h) | 4.1 | |
| 25% Load (L/h) | 2.1 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI184S30 | |
| Rate Output | 30kW | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Smartgen | |
| Model | HGM6120N | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Usage:
Our Diesel 30kW Electric Generator is perfect for a variety of applications, including emergency backup power, construction sites, remote locations, and industrial settings. Its silent operation and compact design make it an excellent choice for hospitals, schools, and other institutions requiring reliable and quiet power solutions.
Advantages:
- High Efficiency: The Weichai engine operates at peak efficiency, reducing fuel consumption and operational costs. At 50Hz, fuel consumption is as low as 2.1L/h at 25% load.
- Durability: With a robust construction and high-quality components, this generator is built to last, providing years of reliable service.
- Versatility: The generator can be configured with optional equipment such as an ATS box, switch box, remote control, and daily fuel tank, tailored to meet your specific needs.
- User-Friendly: The Smartgen controller simplifies operation and maintenance, with intuitive controls and comprehensive monitoring capabilities.
Options:
- ATS Box: Automatically transfers power between the generator and the main grid, ensuring seamless power supply during outages.
- Remote Control: Allows for remote monitoring and control of the generator, enhancing convenience and safety.
- Daily Fuel Tank: Provides a convenient fuel source for daily operation, reducing the need for frequent refueling.
- Engine Heater: Keeps the engine warm in cold climates, ensuring smooth startup and extending engine life.
- Trailer Type: Enables easy transportation of the generator to various locations.
FAQ:
Q: What is the noise level of the silent model?
A: The silent model, TG41WCSD6, operates at a significantly reduced noise level, making it suitable for noise-sensitive environments.
Q: How fuel-efficient is the Weichai engine?
A: The Weichai engine is highly fuel-efficient, with fuel consumption as low as 2.1L/h at 25% load.
Q: Can the generator be configured with additional options?
A: Yes, the generator can be customized with a range of optional equipment, including an ATS box, remote control, and daily fuel tank.
By choosing our Diesel 30kW Electric Generator with Silent Weichai Genset, you're investing in a reliable, efficient, and versatile power solution. With its advanced features, user-friendly controls, and customizable options, this generator is designed to meet your specific needs and exceed your expectations. For more information or to place an order, visit our website today.
