Standby 39kW Silent weichai diesel generator Genset With Multi Colors Soundproof Canopy
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG48WCSD6 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging or Polywooden Package |
| Delivery Time | 20 Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Soundproof | Frequency | 60Hz / 1800rpm |
|---|---|---|---|
| Voltage | 230V | Engine Brand | Weichai |
| Engine Model | WP2.3D47E201 | Alternator Model | TGI224S35 |
| Output | 39kW/48kVA | HS CODE | 8502110000 |
| Highlight | 39kW weichai diesel generator,Silent weichai diesel generator,Soundproof Canopy weichai diesel generator |
||
Product Description

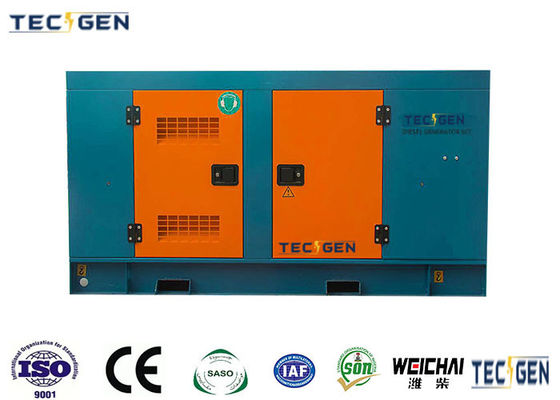

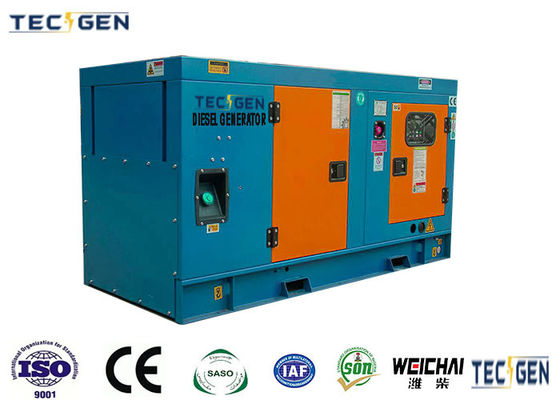

Standby 39kW silent genset Weichai diesel generator with multi colors soundproof canopy
1.1.1Standard Features
Introducing the Weichai Diesel Generator – Standby 39kW Silent Genset, a powerful and reliable solution tailored for your backup power needs. This generator set comes equipped with a robust Weichai engine, model WP2.3D47E201, known for its durability and efficiency. Running at a rated speed of 1800rpm, it produces a standby power of 39kW/48kVA and a prime power of 35kW/44kVA, ensuring you have ample power during emergencies. The frequency is set at 60Hz, with a rated voltage of 220V and a rate current of 115.5A, making it compatible with most electrical systems.
1.1.2Key Features
- Powerful Engine: The Weichai engine boasts a displacement of 2.3 liters and is turbocharged for enhanced performance. It features an inline cylinder arrangement with 4 cylinders, a bore x stroke of 89x92mm, and a compression ratio of 17:1. This ensures smooth and efficient operation, even under heavy loads.
- Silent Operation: Encased in a soundproof canopy, the generator operates at a noise level of just 72db(A) at 7 meters, making it ideal for residential and commercial applications where quietness is a priority.
- Electric Governor: The electric governor provides precise control over the engine's RPM, ensuring stable power output and minimizing wear and tear.
- Forced Water Cooling: The engine is equipped with a forced water-cooled system, maintaining optimal operating temperatures even in harsh conditions.
- ATS Integration: Comes with a 125A wall-mounted ATS box and a 63A auto transfer switch, allowing seamless transition to backup power during power outages.
Standby 39kW Silent Genset Datasheets:
| Technical Parameter for Weichai Engine Genset | Genset Model | TG48WCSD6 |
| Prime Power | 35kW/44kVA | |
| Standby Power | 39kW/48kVA | |
| Frequency | 60Hz | |
| Speed | 1800rpm | |
| Rated Voltage | 220V | |
| Rate Current | 115.5 A | |
| Power Factor | 0.8 | |
| Governor | ELECTRIC | |
| Noise level (7m) | 72db(A) | |
| Engine Brand | Weichai | |
| Engine Model | WP2.3D47E201 | |
| Alternator Brand | Copy Stamford | |
| Alternator Brand | TGI224S35 | |
| ATS | 125A Wall Mounted ATS Box | |
| Dimension | Open: L1600 x W800 x H950mm | |
| Silent: L2200 x W1000 x H1150 | ||
| Fuel Tank Capacity | 90L | |
| Engine General Data | Engine Brand | WEICHAI |
| Engine Model | WP2.3D47E201 | |
| Rated Output | 43kW | |
| Rated Speed | 1800rpm | |
| Number of Cylinders | 4 | |
| Cylinder arrangement | In-line | |
| Displacement (L) | 2.3 | |
| Aspiration | Turbocharged | |
| Bore×Stroke (mm×mm) | 89x92 | |
| Compression Ratio | 17:1 | |
| Cooling | Forced Water Cooled | |
| Fuel Consumption at 100% load(L/H) | 10.5 | |
| Alternator Data | Model | TGI224S35 |
| Brand | Tecgen | |
| Rate Output | 35kW | |
| Frequency | 60Hz | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Bearing | Single | |
| Voltage Regulator | AVR | |
| Protection Grade | IP 23 | |
| Steady StateVoltage Regulater | 1% | |
| Opetion | Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator | |
|
Control System |
Brand | Smartgen |
| Model | HGM6120N | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| Optional brands | Deepsea, ComAp, Mebay | |
| Battery Capacity | 12/24V Varta Maintenance free Battery | |
| Cooling System | Water-cooled, 50℃ radiator with Cooper | |
| Circuit breaker | Delixi Brand 160A Breaker | |
| Auto Transfer Switch | 63A ATS | |
| Genset Options | Output Socket | |
| Integrated Fuel Tank | ||
| Trailer & Silent Canopy for Genset | ||
| Sync Panel | ||
| Water Heater & Engine Heater | ||
| Engine Brand Options | ||
| Cummins, Perkins, Weifang Ricardo, Yangdong, Quanchai, FAWDE, Weichai, Deutz, SDEC, Yuchai, Isuzu, Doosan, VMAN, Mitsubishi, MTU, Googol, Shanghai Engine | ||
1.1.3Usage
The Standby 39kW Silent Genset is perfect for a wide range of applications, including hospitals, data centers, industrial facilities, and residential complexes. Its compact design and silent operation make it an excellent choice for use in environments where noise pollution is a concern. The generator can be easily integrated into existing power systems, providing a reliable and cost-effective backup power solution.
1.1.4Advantage
- High Efficiency: The Weichai engine is designed for optimal fuel efficiency, with a fuel consumption rate of just 10.5 liters per hour at 100% load. This helps reduce operational costs and environmental impact.
- Reliability: With a powerful and durable engine, this generator set is designed to provide years of trouble-free service. The electric governor and forced water cooling system further enhance its reliability and longevity.
- Versatility: The generator set comes with a variety of options, including an integrated fuel tank, trailer, and silent canopy, making it suitable for various installation scenarios.
- Easy Maintenance: The generator's design allows for easy access to critical components, making maintenance and repairs quick and straightforward.
1.1.5Options
- Output Socket: Customize the generator with various outlet configurations to match your specific power needs.
- Integrated Fuel Tank: Option for an integrated fuel tank for added convenience and reduced fuel handling.
- Trailer & Silent Canopy: Ideal for mobile applications or temporary power solutions, the generator can be mounted on a trailer with a silent canopy for reduced noise pollution.
- Sync Panel: Allows for synchronization of multiple generator sets, providing increased power capacity and redundancy.
- Water Heater & Engine Heater: Protect your investment by keeping the engine and cooling system warm during cold weather conditions.
1.1.6FAQ
Q: What is the noise level of the generator?
A: The generator operates at a noise level of 72db(A) at 7 meters, making it ideal for silent environments.
Q: What is the fuel consumption rate of the generator?
A: The generator consumes 10.5 liters of fuel per hour at 100% load.
Q: Can the generator be used for commercial applications?
A: Yes, the Standby 39kW Silent Genset is suitable for a wide range of commercial and industrial applications.
In conclusion, the Weichai Diesel Generator – Standby 39kW Silent Genset offers a combination of power, reliability, and efficiency, making it the perfect choice for your backup power needs. With its silent operation, versatile design, and range of options, this generator set is ready to meet your power requirements, no matter the situation. For more information or to place an order, visit our website today.
