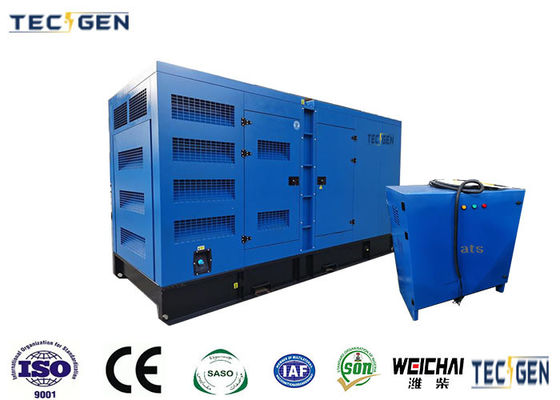

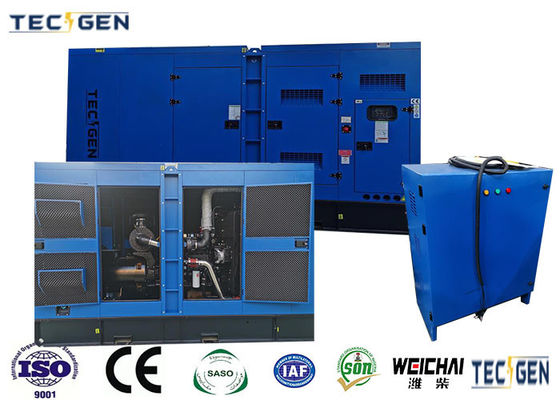

Silent type 300kW genset Weichai diesel generator with 630A ATS box for automatically transfers loads

Silent type 300kW genset Weichai diesel generator with 630A ATS box for automatically transfers loads

Standard Features:

Introducing the Silent Type 300kW Genset powered by a robust Weichai Engine, model WP13D385E200. This generator set is designed for reliability, efficiency, and silent operation, making it ideal for various applications. With a prime output of 375kVA / 300kW and a max output of 413kVA / 330kW, it provides ample power to meet your energy needs. The open-frame design ensures easy maintenance and accessibility.

The genset is equipped with an HCI 444FS alternator from Stamford, renowned for its durability and performance. The alternator operates at a frequency of 50Hz and a speed of 1500rpm, delivering a stable voltage of 400/230V through a 3-phase, 4-wire system. The current rating is 541.3A, ensuring smooth and consistent power output.

Key Features:

1. Silent Operation: The silent canopy design significantly reduces noise levels, making it suitable for residential and commercial areas where noise pollution is a concern.
2. Powerful Engine: The Weichai WP13D385E200 engine, with a max power of 385kW, features direct injection, turbocharging, and intercooling for enhanced performance and fuel efficiency.
3. Advanced Controller: The DEIF SGC-420 controller offers comprehensive monitoring and protection functions, including AMF/ATS capabilities, PLC programming, and communication through RS485 and CAN interfaces.
4. Flexible Options: A variety of optional accessories, such as an anti-condensation heater, parallel operation capability, and an automatic load transfer screen (ATS), enhance the genset's versatility and adaptability.

Silent type 300kW Genset Specifications:

Usage:

The Silent Type 300kW Genset is perfect for a wide range of applications, including hospitals, data centers, commercial buildings, and industrial facilities. It serves as a reliable backup power source during power outages or as a primary power supply in remote or off-grid locations.

Advantage:

1. Reliability: With a reputable brand like Weichai and a robust design, the genset ensures consistent and reliable power output.
2. Efficiency: The direct injection engine and water-cooled cooling system contribute to high fuel efficiency and minimal maintenance requirements.
3. Quiet Operation: The silent canopy design ensures minimal noise pollution, making it suitable for sensitive environments.
4. Versatility: A wide range of optional accessories allows for customization to meet specific power requirements and operational needs.

Option:

In addition to the standard features, several optional accessories are available to enhance the functionality and performance of the Silent Type 300kW Genset:

• ATS Automatic Load Transfer Screen: Automatically transfers loads between the genset and the main power supply, ensuring uninterrupted power supply.
• Heavy Duty Secondary Muffler: Further reduces noise levels, making the genset even more suitable for noise-sensitive environments.
• Remote Control System: Allows for remote monitoring and control of the genset, improving operational efficiency and convenience.
• Integrated Fuel Tank: Provides a longer runtime without the need for frequent refueling.

FAQ:

1. What is the fuel consumption of the Silent Type 300kW Genset?
   • The fuel consumption is 229g/kW.h, making it efficient and cost-effective to operate.
2. Can the genset be used in residential areas?
   • Yes, the silent canopy design significantly reduces noise levels, making it suitable for residential use.
3. What kind of engine does the genset use?
   • The genset is powered by a Weichai WP13D385E200 engine, known for its reliability and performance.
4. Are there any optional accessories available?
   • Yes, a variety of optional accessories are available to enhance the functionality and performance of the genset.
