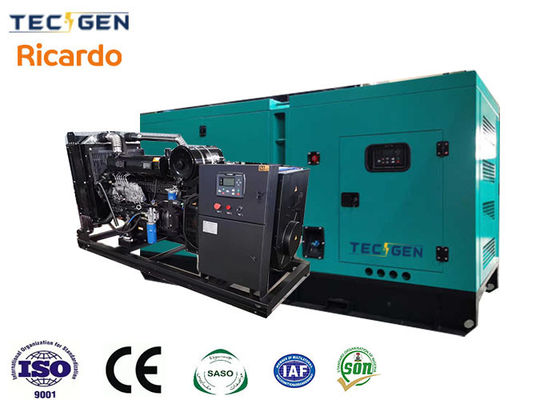

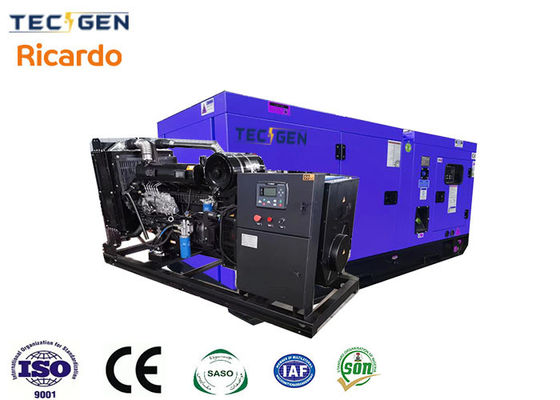

Weifang 225kVA diesel engine genset silent Ricardo generator for for emergency use
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG248NSD6 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging |
| Delivery Time | 20 - 40 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Silent Type | Product Name | Ricardo Diesel Generator Set |
|---|---|---|---|
| Frequency | 50Hz / 1500rpm | Engine Model | TH6126ZD |
| Alternator Model | TGI274S180 | Prime Genset Power | 180kW / 225kVA |
| Standby Genset Power | 198kW / 248kVA | Engine Power | 234kW |
| Highlight | Emergency Use diesel engine genset,225kVA diesel engine genset,Silent Ricardo diesel engine genset |
||
Product Description
Weifang 225kVA diesel engine genset silent Ricardo generator for for emergency use
Standard Features:
Introducing the Weifang 225kVA Diesel Engine Genset, a powerful and reliable energy solution designed to meet your diverse power needs. This genset boasts a Ricardo Diesel Engine Generator, renowned for its robust performance and fuel efficiency. The standard model, TG248NS, is available in both open and silent configurations, ensuring versatility for any application. With a frequency of 60Hz and a voltage of 220V, this three-phase, four-wire system provides a steady and consistent power supply, ideal for both prime and standby power requirements.
Key Features:
- Powerful Engine: Equipped with the Ricardo TH6126ZD diesel engine, this genset offers prime power of 180kW / 225kVA and standby power of 198kW / 248kVA. The engine features indirect injection, turbocharging, and intercooling for enhanced performance and durability.
- Efficient Alternator: The TECGEN TGI274S180 alternator ensures a steady output of 180kW, with an insulation class of H and an IP23 enclosure for added safety and protection. The four-pole design and star winding connections provide a reliable and stable power supply.
- Advanced Control System: The DEIF SGC-420 controller system offers comprehensive control features, including AMF (Automatic Mains Failure) module, static auto battery charger, emergency stop push button, and ATS (Automatic Transfer Switch) connection. This ensures seamless operation and easy monitoring.
- Compact Design: The genset's compact dimensions (Length: 2400/2900mm, Width: 950/1100mm, Height: 1550/1700mm) and weight (1650/2250kg) make it easy to transport and install, even in tight spaces.
Weifang 225kVA Diesel Engine Genset Datasheets:
| Technical Specification: | ||
| Weifang 225kVA Diesel Engine Genset Specification | ||
| Genset Model | TG248ND6 | TG248NSD6 |
| Open | Silent | |
| Frequency | 60Hz | |
| Voltage | 220V | |
| Phase | 3 Phase, 4 Wires | |
| Rate Current | 1022.7A | |
| Prime Power | 180kW / 225kVA | |
| Standby Power | 198kW / 248kVA | |
| Engine Model | TH6126ZD | |
| Alternator Model | TGI274S180 | |
| Controller | DEIF | |
| Weight & Dimensions | ||
| Length (mm) | 2400 | 2900 |
| width (mm) | 950 | 1100 |
| Height (mm) | 1550 | 1700 |
| Weight (kgs) | 1650 | 2250 |
| Engine Specification | ||
| Brand | RICARDO | |
| Engine Model | TH6126ZD | |
| Prime power | 234kW | |
| Injection | Indirect | |
| Aspiration | Turbocharged & Intercooled | |
| No. of cylinders | 6 | |
| Bore of Stroke (mm) | 126 x 130 | |
| Displacement (L) | 9.726 | |
| Cooling | water | |
| Compression Ratio | 16:1 | |
| Engine Oil capacity (L) | 25 | |
| Coolant Capacity ( In radiator) | 25 | |
| Governor | MECH | |
| Air Filter | Dry Element | |
| Fuel consumption | @ 60Hz | |
| 100% Load (L/h) | 49.3 | |
| 75% Load (L/h) | 37.0 | |
| 50% Load (L/h) | 24.6 | |
| 25% Load (L/h) | 12.3 | |
| Alternator Specification | ||
| Brand | TECGEN | |
| Model | TGI274S180 | |
| Rate Output | 180kW | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | DEIF | |
| Model | SGC-420 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, ABB Breaker, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Generator Heater, Parallel Panel, Fuel-water separator, Super Silent type, Trailer Type, 3000Hours Spare Parts | ||
Usage:
The Weifang 225kVA Diesel Engine Genset is perfect for a wide range of applications, including industrial, commercial, and residential use. It serves as an ideal backup power source for hospitals, data centers, construction sites, and other critical facilities. The silent model is particularly suitable for noise-sensitive environments, such as residential areas or schools.
Advantages:
- Reliability: With a Ricardo diesel engine, you can trust the genset's reliability and durability, even under the most demanding conditions.
- Fuel Efficiency: The engine's advanced injection and turbocharging technology ensure optimal fuel consumption, reducing operational costs.
- Quiet Operation: The silent model offers reduced noise levels, making it ideal for use in noise-sensitive areas.
- Easy Maintenance: The genset's design makes it easy to access and maintain, ensuring long-term performance and efficiency.
Options:
Upgrade your Weifang 225kVA Diesel Engine Genset with a range of optional equipment, including an ATS Box, Switch Box, ABB Breaker, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Generator Heater, Parallel Panel, Fuel-Water Separator, Super Silent Type, Trailer Type, and 3000-Hour Spare Parts Kit. These options allow you to customize the genset to meet your specific needs and preferences.
FAQ:
- What is the prime power of the Weifang 225kVA Diesel Engine Genset?
- The prime power is 180kW / 225kVA.
- Is the genset available in a silent configuration?
- Yes, the TG248NS model is available in both open and silent configurations.
- What type of engine does the genset use?
- The genset is powered by a Ricardo TH6126ZD diesel engine.
- What is the fuel consumption at 100% load?
- The fuel consumption at 100% load is 49.3 liters per hour.
- Can the genset be customized with additional options?
- Yes, a range of optional equipment is available to customize the genset to your specific needs.
In conclusion, the Weifang 225kVA Diesel Engine Genset, powered by a Ricardo Diesel Engine Generator, offers a reliable, efficient, and versatile power solution for a wide range of applications. With its advanced features, compact design, and customizable options, this genset is the perfect choice for meeting your power needs. Don't miss out on this top-quality product – order yours today and experience the difference!
