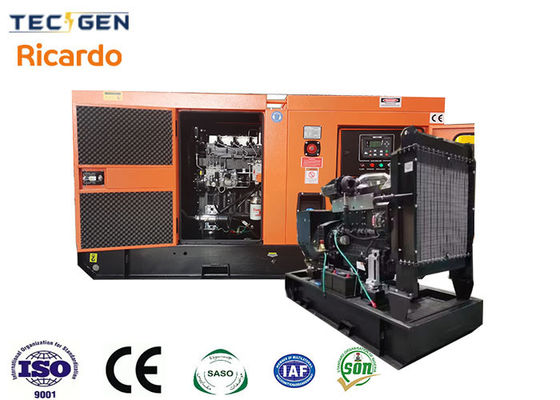

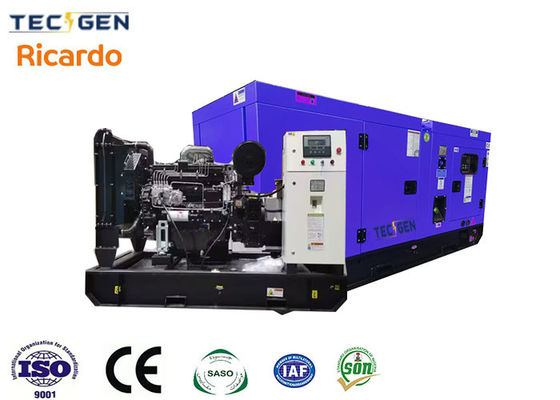

Emergency 145kW diesel genset Ricardo generator set with soundproof canopy for backup use
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG199NSD6 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging |
| Delivery Time | 20 - 40 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Silent Type | Product Name | Ricardo Diesel Generator Set |
|---|---|---|---|
| Frequency | 50Hz / 1500rpm | Engine Model | TH6XD-1 |
| Alternator Model | TGI274S145 | Prime Genset Power | 181kVA / 145kW |
| Standby Genset Power | 199kVA / 160kW | Engine Power | 160KW/1800RPM |
| Highlight | 145kW diesel genset,Ricardo diesel genset,Backup diesel genset |
||
Product Description
Emergency 145kW diesel genset Ricardo generator set with soundproof canopy for backup use
Standard Features of the Emergency 145kW Diesel Genset (Ricardo Generator Set):
Our Emergency 145kW Diesel Genset, powered by the reliable Ricardo engine (model TH6XD-1), is engineered to provide consistent and dependable power in critical situations. The genset comes equipped with a high-performance alternator (model TGI274S145) from Fujian Tecgen Power Co., Ltd., ensuring clean and stable energy output. Standard features include a robust Deutz engine with a forced water-cooling system, a brushless self-excited control system, and a Delixi breaker for enhanced safety and performance.
Key Features Highlighting the Ricardo Generator Set:
- High Power Output: The Ricardo Generator Set boasts a rated output of 181kVA / 145kW and a standby output of 199kVA / 160kW, making it ideal for emergency power requirements in various industries.
- Turbocharged Engine: The TH6XD-1 engine features turbocharging technology, which boosts engine efficiency and power output, while maintaining low fuel consumption.
- Stable Voltage Regulation: The alternator is equipped with AVR (Automatic Voltage Regulator) technology, providing voltage regulation within ±1%, ensuring stable and reliable power supply.
- User-Friendly Controller: The DEIF SGC-420 controller panel offers intuitive controls and monitoring capabilities, making it easy to manage and maintain the genset.
- Compact and Durable Design: Built with a sturdy aluminum water tank and a compact footprint (L3100 * W1600 * H1800mm), the genset is both durable and space-saving.
Emergency 145kW Diesel Genset Specifications:
| Emergency 145kW Diesel Genset Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |
| TG199NSD6 | TH6XD-1 | TGI274S145 | 6110U | 145kW | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of 145kW Ricardo Generator Set | |||||
| Engine Model | TH6XD-1 | ||||
| Alternator Mode | TGI274S145 | ||||
| Rated Output | 181kVA / 145kW | ||||
| Standby Output | 199kVA / 160kW | ||||
| Rated Speed | 1800 RPM | ||||
| Frequency | 60 HZ | ||||
| Rated Voltage | 480V | ||||
| Rated Current | 377.6A | ||||
| Breaker | 400A Delixi Breaker | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 72dB(A) | ||||
| Net Weight | 2900KGS | ||||
| Genset size | L3100 * W1600 * H1800mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for 145kW Ricardo Generator Set | |||||
| Manufacture | Deutz | ||||
| Model | TH6XD-1 | ||||
| Rated Output/Speed | 160KW/1800RPM | ||||
| Standby Output/Speed | 176KW/1800RPM | ||||
| Aspiration | Turbocharged | ||||
| Speed Governor | MECH | ||||
| Engine Type | 6 cylinders in line | ||||
| Bore X Stroke | 108*135mm | ||||
| Displacement | 7.42 L | ||||
| Compression ratio | 16:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1800rpm | ||||
| Fuel Consumption/rated output | 41.8 L / h | ||||
| Fuel Consumption/standby output | 43 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for 145kW Ricardo Generator Set | |||||
| Alternator Model | TGI274S145 | ||||
| Manufacture | Fujian Tecgen Power Co., Ltd | ||||
| Rate Output | 145kW | ||||
| Rated voltage(V) | 480V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of 145kW Ricardo Generator Set | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | DEIF SGC-420 | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 degree celsius radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Usage of the Emergency 145kW Diesel Genset:
Our Emergency 145kW Diesel Genset is perfect for a wide range of applications, including hospitals, data centers, industrial facilities, and commercial buildings. It provides a reliable backup power source during power outages, ensuring continuous operation of critical equipment and systems.
Advantages of Choosing the Ricardo Generator Set:
- Reliability: The Ricardo engine is known for its durability and long service life, ensuring minimal downtime and maximum uptime.
- Efficiency: The turbocharged engine and AVR technology optimize fuel consumption and energy output, reducing operational costs.
- Quiet Operation: With a noise level of just 72dB(A) at 7 meters, the genset operates quietly, minimizing disturbance to surrounding areas.
- Easy Maintenance: The genset's modular design and user-friendly controller make maintenance and troubleshooting straightforward and efficient.
- Customizable Options: A variety of optional features, such as an integrated fuel tank, water heater, ATS, PMG generator, and SYNC function, allow for tailored solutions to meet specific needs.
Optional Features for the Ricardo Generator Set:
- Integrated Fuel Tank: Extend operational time without the need for frequent refueling.
- Water Heater: Ensure optimal engine performance in cold climates.
- ATS (Automatic Transfer Switch): Automatically switches to backup power during outages.
- PMG Generator: Provides a stable power supply for critical loads.
- SYNC Function: Synchronizes multiple gensets for increased power capacity.
FAQs About the Emergency 145kW Diesel Genset:
- What is the delivery time for the Ricardo Generator Set? Delivery is typically within 15 working days.
- What payment terms are accepted? We offer FOB Fuzhou Port and require a 30% deposit with the remaining 70% payable before delivery.
- How long is the price valid for? Prices are valid for 30 days.
- What is the noise level of the genset? The noise level is 72dB(A) at 7 meters.
- Can the genset be customized with additional features? Yes, a variety of optional features are available to suit specific needs.
By choosing our Emergency 145kW Diesel Genset (Ricardo Generator Set), you're investing in a reliable, efficient, and customizable power solution that will meet your emergency power requirements with ease. Contact us today for more information and to place your order.
