Prime 75kVA electric genset 60Hz diesel generator with soundproof canopy backup use

Prime 75kVA electric genset 60Hz diesel generator with soundproof canopy backup use

Standard Features of the Prime 75kVA Electric Genset

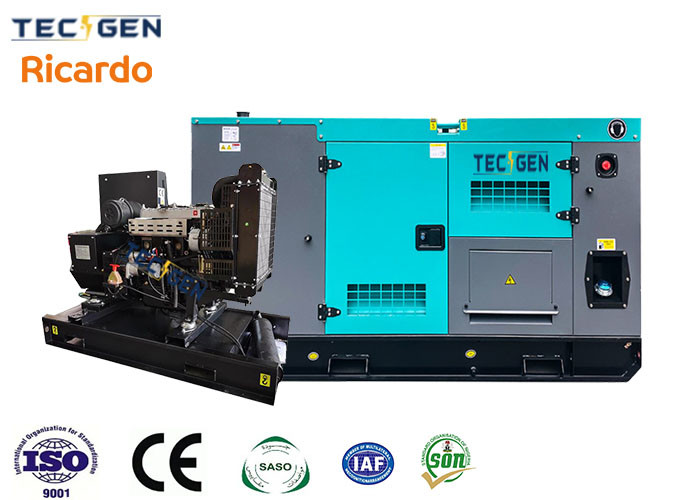

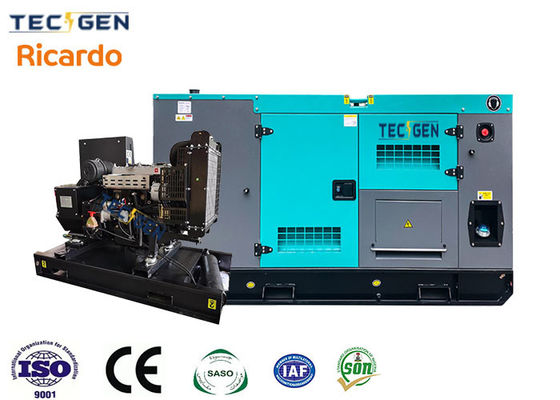

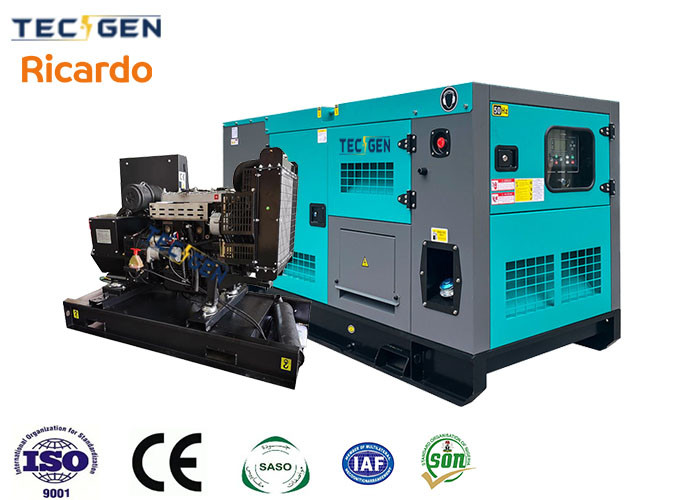

Introducing the TG83NS, a robust and reliable 60Hz diesel generator designed to meet your prime and standby power needs. With a prime power rating of 60kW/75kVA and a standby power of 66kW/83kVA, this generator is perfect for a wide range of applications. Running at a speed of 1800rpm and producing a rated voltage of 220V with a current of 340.9A, it ensures a stable and consistent power supply. The power factor of 0.8 ensures efficient energy utilization, while the electric governor maintains stable engine speed and power output.

Key Features of the 60Hz Diesel Generator

1. High Performance Engine: Powered by a Ricardo ZH4105ZLD engine, this generator boasts a rated output of 70kW and a rated speed of 1800rpm. With 4 in-line cylinders, a displacement of 4.15 liters, and a turbocharged & intercooled aspiration system, it delivers exceptional performance and durability. The engine is forced water-cooled to maintain optimal operating temperatures, ensuring long-term reliability.
2. Efficient Alternator: The Copy Stamford TGI224S60 alternator provides a rate output of 60kW and operates at a frequency of 60Hz. With an insulation class of H and a single bearing design, it ensures smooth and efficient power generation. The AVR (Automatic Voltage Regulator) maintains steady-state voltage regulation within 1%, providing a stable power supply even under fluctuating loads.
3. Advanced Control System: Equipped with a Tecgen 6120U control system, this generator offers a range of functions including AMF (Automatic Mains Failure) module, static with auto battery charger, emergency stop push button, and ATS (Automatic Transfer Switch) connection. Optional brands such as Deepsea, ComAp, and Mebay are also available for customized control solutions.
4. User-Friendly Design: With a noise level of 72db(A) at 7 meters, this generator is designed for quiet operation. The open dimensions of L1900 x W900 x H1250mm and silent dimensions of L2700 x W1100 x H1550mm make it suitable for various installation environments. The 150L fuel tank capacity ensures extended operation without the need for frequent refueling.

Prime 75kVA Electric Genset Specifications:

Usage of the Prime 75kVA Electric Genset

The Prime 75kVA Electric Genset is ideal for a wide range of applications including commercial, industrial, and residential use. It can be used as a primary power source for businesses, hospitals, schools, and other critical infrastructure. It is also suitable as a standby power generator for homes and emergency services during power outages.

Advantages of Choosing Our 60Hz Diesel Generator

1. Reliability and Durability: Built with high-quality components and materials, this generator is designed to withstand the rigors of daily use and provide years of reliable service.
2. Efficient Power Generation: The combination of a powerful engine and efficient alternator ensures that this generator produces clean and stable power, ideal for sensitive electronic equipment.
3. User-Friendly Operation: With an intuitive control system and easy-to-use features, this generator is designed for both professional and novice users.
4. Customizable Options: A range of optional features and accessories are available to suit your specific needs and preferences, including output sockets, integrated fuel tanks, sync panels, water heaters, and engine heaters.

Optional Features for the Prime 75kVA Electric Genset

1. Output Socket: Easily connect your electrical devices to the generator with a range of output socket options.
2. Integrated Fuel Tank: Increase the generator's fuel capacity and extend its operating time with an integrated fuel tank.
3. Sync Panel: Synchronize multiple generators for increased power capacity and reliability.
4. Water Heater & Engine Heater: Keep the generator's engine and cooling system warm during cold weather conditions to ensure optimal performance.

FAQs

1. What is the noise level of the Prime 75kVA Electric Genset?
   • The noise level of the generator is 72db(A) at 7 meters.
2. What is the fuel tank capacity of the generator?
   • The fuel tank capacity is 150 liters.
3. Can the generator be synchronized with other generators?
   • Yes, a sync panel is available as an optional feature to synchronize multiple generators.
4. What is the warranty period for the generator?
   • Please contact us for information on our warranty policy.

By choosing the Prime 75kVA Electric Genset, you can enjoy the benefits of reliable, efficient, and user-friendly power generation. Whether you need a primary power source or a standby generator for emergency situations, this generator is designed to meet your needs. With its high-performance engine, efficient alternator, and advanced control system, it is the perfect choice for a wide range of applications. Don't miss out on this opportunity to invest in a high-quality diesel generator that will provide years of reliable service.
