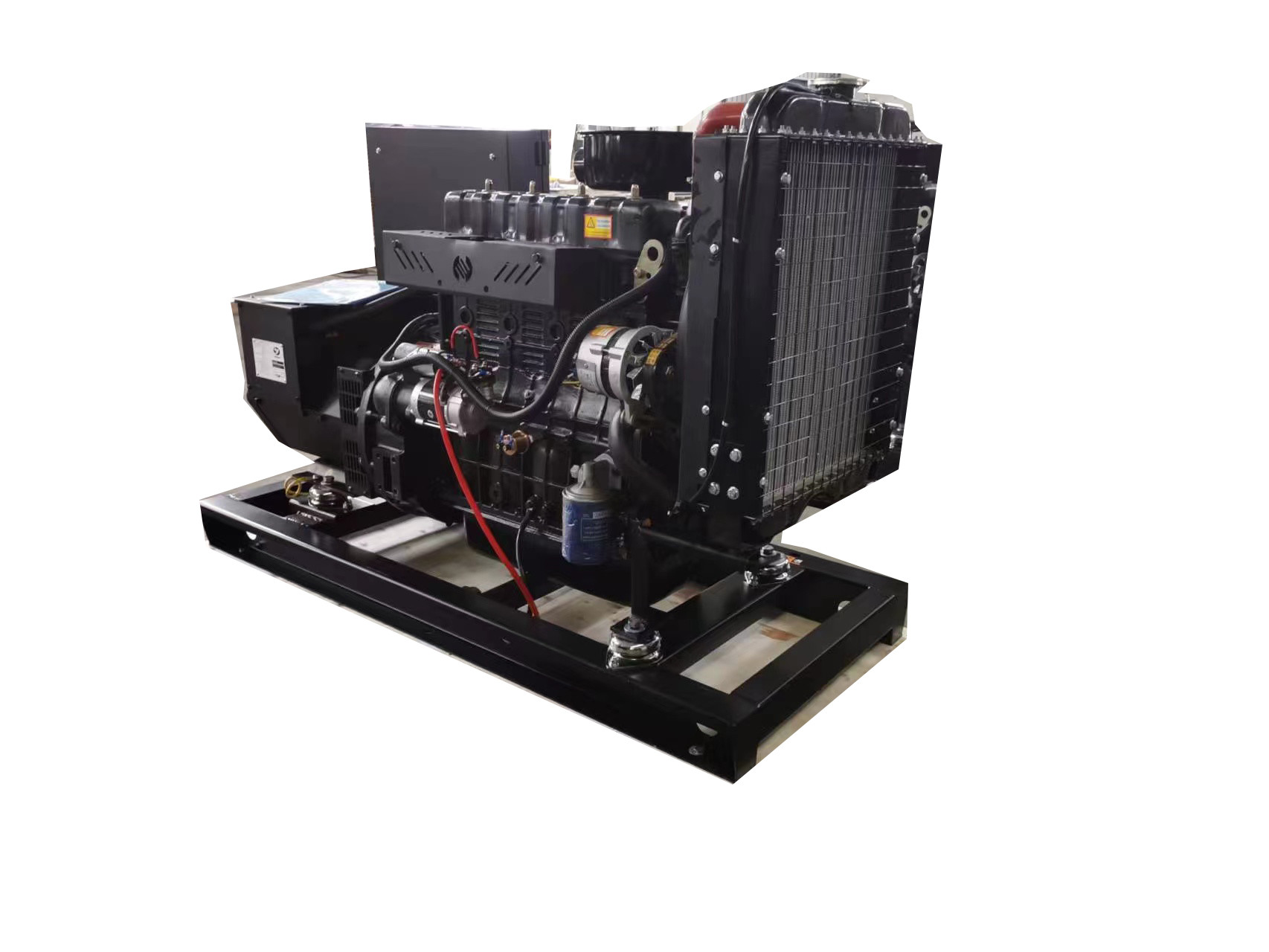

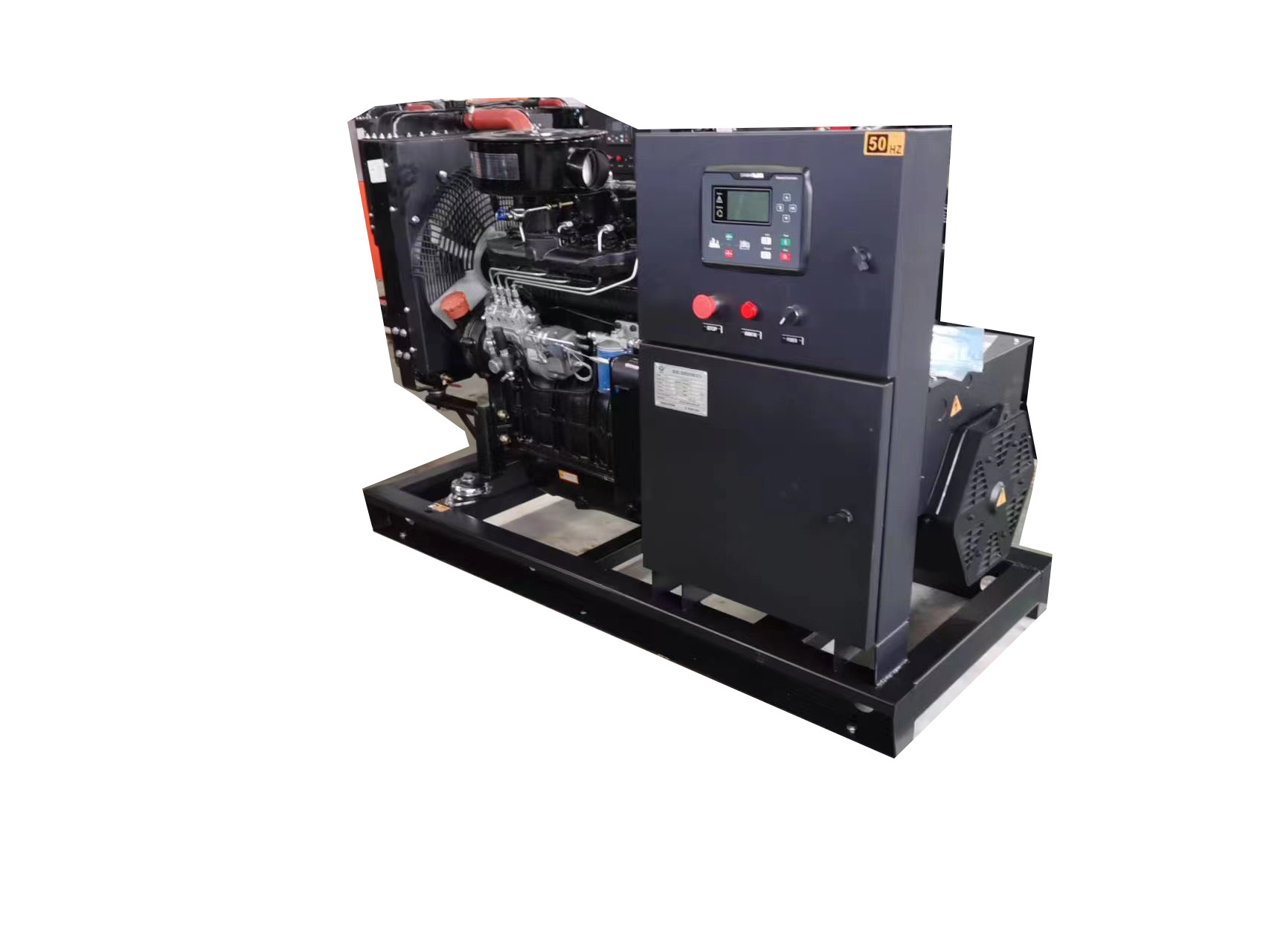

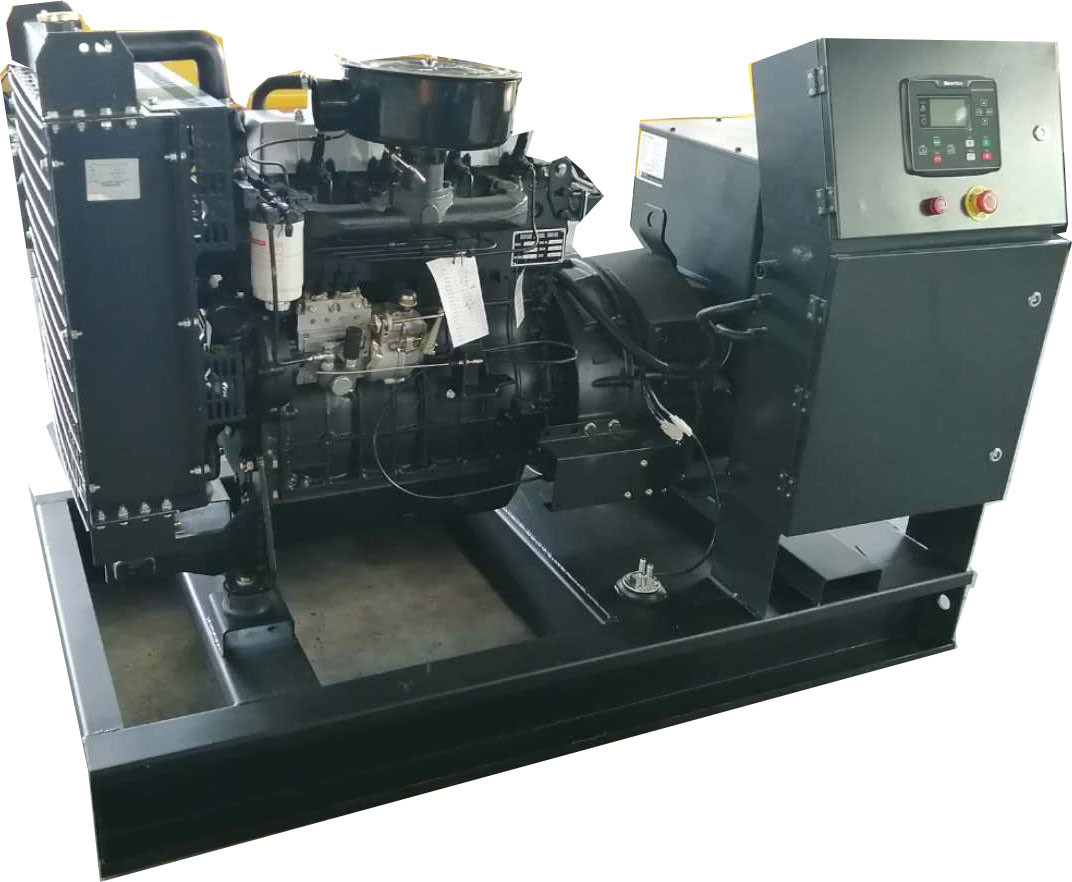

15kW Open Type Diesel Generators
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| After-sales Service | Online/Onsite | Control System | Automatic/Manual |
|---|---|---|---|
| Cooling System | Water | Efficiency | >80% |
| Frequency | 50 | Fuel Type | Diesel |
| Installation | Fixed/Portable | Noise Level | <65dB |
| Power Capacity | 15kW | Starting System | Electric |
| Structure | Open | Voltage | 380V/220V |
| Warranty | 1-2 Years | ||
| Highlight | 15kW Open Type Diesel Generators,19kVA Open Type Diesel Generators,220V open type genset |
||
Product Description
Competitive Back-up Power Genset15kW Ricardo Series Emergency Standby Generators 19kVA Lowest Cost Power Up Business
China Diesel Engine Ricardo Series Back-up Generator Features:
- Powered by KOFO Ricardo engines with China brand brushless type alternator
- Generators power range from 13kVA to 375kVA prime
- Radiator 50°C max, fans driven by belt, with safety guard
- 12//24V DC start motor and storage battery
- Brushless, self-excited, IP22/23, insulation class H alternator
- Absorber to reduce vibration
- Dry type air filter, fuel filter, oil filter
- Main line circuit breaker
- Control system: Standard configuration is key start control panel, optional digital auto start or ATS system
- 10 hours operation base fuel tank
- High efficient muffler to reduce noise
- Ripple flex exhaust pipe, exhaust siphon and flange, etc.
- Genset type: open type or soundproof/silent type, or trailer type
- Maintenance and operation manual, quality certificate, etc.
- Rigorous testing must be done before delivery, including 50% load, 75% load, 100% load and 110% load test and all protection functions (over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
- Certificate: ISO9001:2000, CE (ESC/070119), SASO, IAF
The SKT series automatic transfer switch (ATS) is the most advanced 3rd generation ATS. It has a one-piece structure and PC Class. SKT2 series is the most compact type with just 50% size of the standard SKT.
TECHNICAL DATA:
| Technical Specification: | ||
| Generator Set Specification | ||
| Genset Model | TG21R | TG21RS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 400/230V | |
| Phase | 3 | |
| Rate Current | 27.4A | |
| Prime Power | 15kW / 19kVA | |
| Standby Power | 17kW / 21kVA | |
| Engine Model | 4YT23-20D | |
| Alternator Model | TGI184S15 | |
| Controller | Mebay DC52D | |
| Weight & Dimensions | ||
| Length (mm) | 1400 | 1900 |
| Width (mm) | 760 | 850 |
| Height (mm) | 1000 | 1100 |
| Weight (kgs) | 600 | 800 |
| Engine Specification | ||
| Brand | KOFO Ricardo Series | |
| Engine Model | 4YT23-20D | |
| Prime power (kW) | 20 | |
| Injection | Indirect | |
| Aspiration | Naturally Aspirated | |
| No. of cylinders | 4 | |
| Bore of Stroke (mm) | 88 x 95 | |
| Displacement (L) | 2.31 | |
| Cooling | water | |
| Compression Ratio | 18:1 | |
| Engine Oil capacity (L) | 5.5 | |
| Coolant Capacity ( In radiator) | 5.5 | |
| Governor | Mech | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 4.0 | |
| 75% Load (L/h) | 3.0 | |
| 50% Load (L/h) | 2.0 | |
| 25% Load (L/h) | 1.0 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI184S15 | |
| Rate Output (kVA) | 19 | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Mebay | |
| Model | DC52D | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Tecgen Power Generator Feature:
1, Output range: 10kVA to 3000kVA Heavy Duty diesel generator.
2, Different brands of engine, alternator and controller as options
3, Coupled with Stamford alternator, Marathon alternator or Chinese APT Power alternator
4, Open type, silent type, super silent type or mobile type generator.
5, CE, ISO9001-2008, SONCAP, SASO and SGS certified
6, Starter System with maintenance-free battery
7, Control Panel with Key Start (Power Switch)
8, With 100% fire-resistant sound attenuating sponge
9, 10% of rate output of overload for 1hours in every 12hours
10, Spare parts are easy to get from worldwide market with much cheaper price
11, Perfect after-service network
12, Both 50Hz and 60Hz
13, Chint circuit breaker
14, Three-phase output meets differing requirements
15, ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
16, Working Hours Base Fuel Tank
17, Anti-Vibration Mounted
18, Industrial silencer and flexible exhaust hose
19, 0-110% load test for each unit before delivery
20, Warranty with 1000 hours or one year, which comes first.
perfect and luxury for advertising.
All stand machine can install wheel. It depends on your requirements. If we done this, the machine can move around easily.
