Backup 138kVA Open Type Diesel Generators 110kW Ensuring Continuous Power Home Emergency Use
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Open DG Set |
| Certification | ISO / CE / SASO / CIQ /CO |
| Model Number | TG138R |
| Minimum Order Quantity | 1 SET |
| Price | Negotiation |
| Packaging Details | Plastic film package or Polywooden Package |
| Delivery Time | 10 Working Days |
| Payment Terms | T/T / L/C |
| Supply Ability | 400 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Generator Type | Open-frame | Frequency | 50Hz |
|---|---|---|---|
| Engine Brand | Weifang Ricardo | Warranty | 18Months/1500hours |
| Governor | MECH | Power Rating | 138KVA |
| Cooling System | Water | Alternator Type | Brushless / Single Bearing |
| Highlight | 138kVA Open Type Diesel Generators,Backup Open Type Diesel Generators,110kW emergency diesel generator |
||
Product Description
Product Description:

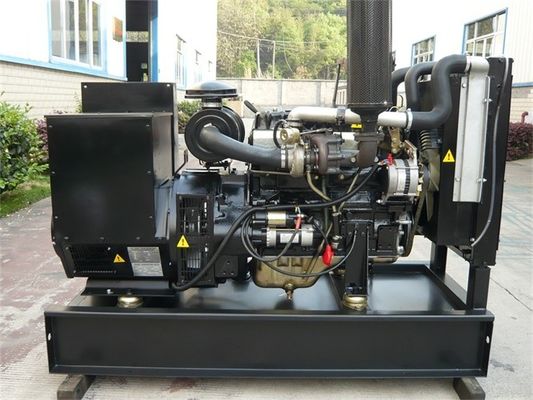

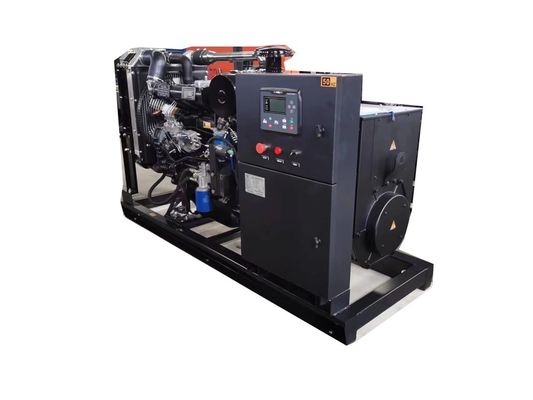

Open Type Diesel Generators are diesel-powered generators that are designed for reliable, cost-efficient power generation. These Ricardo Generators are open type generators and come with a governor that is manually adjusted for a more precise control over the power output. The frequency of these Ricardo Generators is 50Hz, and their engine brand is Weifang Ricardo. The cooling system of these generators is both air and water-based, and the alternator type is brushless and single bearing.
Features:
- Product Name: Open Type Diesel Generators
- Generator Type: Open-frame
- Frequency: 50Hz
- Cooling System: Water
- Power Rating: 138KVA
- Warranty: 18Months/1500hours
- Diesel-Powered Generator
- Open-Type Diesel Generator
- Weifang Ricardo Genset
Technical Parameters:
| Technical Specification: | ||
| 110kW Ricardo Weifang Engine Generator Set Specification | ||
| Genset Model | TG138R | TG138RS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 400/230V | |
| Phase | 3 Phase, 4 Wires | |
| Rate Current | 144.3A | |
| Prime Power | 100kW / 125kVA | |
| Standby Power | 110kW / 138kVA | |
| Engine Model | 4RT55-110D | |
| Alternator Model | TGI274S100 | |
| Controller | Mebay DC52D | |
| Weight & Dimensions | ||
| Length (mm) | 1800 | 2450 |
| width (mm) | 950 | 1100 |
| Height (mm) | 1150 | 1450 |
| Weight (kgs) | 1550 | 2050 |
| Engine Specification | ||
| Brand | KOFO Ricardo Series | |
| Engine Model | 4RT55-110D | |
| Prime power (kw) | 110 | |
| Injection | Indirect | |
| Aspiration | Turbocharged & InterCooled | |
| No. of cylinders | 4 | |
| Bore of Stroke (mm) | 110 x 140 | |
| Displacement (L) | 5.32 | |
| Cooling | water | |
| Compression Ratio | 17:1 | |
| Engine Oil capacity (L) | 12 | |
| Coolant Capacity ( In radiator) | 12 | |
| Governor | Mech | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 27.8 | |
| 75% Load (L/h) | 20.5 | |
| 50% Load (L/h) | 13.7 | |
| 25% Load (L/h) | 6.8 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI274S100 | |
| Rate Output | 100kW | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Mebay | |
| Model | DC52D | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Applications:
Tecgen Open DG Set, with brand name Tecgen and model number TG138R, is a type of open-frame generator powered by Weifang Ricardo diesel engine. It is certified by ISO, CE, SASO, CIQ and CO, and the minimum order quantity is 1 SET. The price is negotiable and the packing details can be either plastic film package or polywooden package. The delivery time is 10 working days and the payment terms are T/T and L/C. The Tecgen open-type diesel generator set is capable of supplying 400 units per month with a frequency of 50Hz. The cooling system is either air or water and the alternator type is either brushless or single bearing. The power rating of the generator is 138KVA.
Tecgen open-type diesel generator set is specially designed for reliable power supply for a wide range of applications, such as factories, mines, and hospitals. It is renowned for its excellent performance, low fuel consumption and cost-effectiveness. Moreover, the open-frame generator set is easy to install and maintain. Therefore, the Tecgen open-type diesel generator set is an ideal choice for those who require high quality and reliable power supply.
Customization:
Customized Open Type Diesel Generators
Our Open Type Diesel Generators are ideal for emergency backup power and can provide reliable power for different applications. These diesel-driven generators feature an open-frame design, and come with a manual governor, air/water cooling system, and brushless/single bearing alternator.
- Brand Name: Tecgen Open DG Set
- Model Number: TG138R
- Place of Origin: Fuzhou, China
- Certification: ISO / CE / SASO / CIQ /CO
- Minimum Order Quantity: 1 SET
- Price: Negotiation
- Packaging Details: Plastic film package or Polywooden Package
- Delivery Time: 10 Working Days
- Payment Terms: T/T / L/C
- Supply Ability: 400 Units Per Month
- Cooling System: Water
- Frequency: 50Hz
- Governor: Manual
- Alternator type: Brushless / Single Bearing
- Generator Type: Open-frame
Packing and Shipping:
Packaging and Shipping Open Type Diesel Generators
Open type diesel generators are typically shipped in a wooden crate for added protection. The size and weight of the generator will determine the size of the crate.
The crate should include at least 2" of material around the generator. The generator should be secured to the inside of the crate with straps or brackets. The generator must be firmly secured to the crate and all necessary precautions must be taken to reduce the possibility of it shifting during transit.
The outside of the crate should be labeled with the contents and the destination address. Proper packaging and labeling will ensure that the generator is not damaged during shipping.
FAQ:
Q & A
- Q: What is the brand name of the Open Type Diesel Generators?
A: The brand name of the Open Type Diesel Generators is Tecgen Open DG Set. - Q: What is the model number?
A: The model number is TG138R. - Q: Where is the Open Type Diesel Generators made?
A: The Open Type Diesel Generators is made in Fuzhou, China. - Q: What certifications does the Open Type Diesel Generators have?
A: The Open Type Diesel Generators has ISO / CE / SASO / CIQ /CO certifications. - Q: What is the minimum order quantity?
A: The minimum order quantity is 1 SET.
