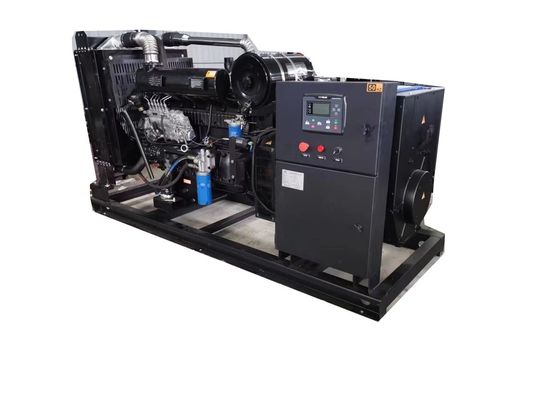

3 Phase 140kVA Standby Diesel Generator 154kVA water cooled diesel generators Emergency Use

Place of Origin Fuzhou, China
Brand Name Tecgen Open DG Set
Certification ISO / CE / SASO / CIQ /CO
Model Number TG154R
Minimum Order Quantity 1 SET
Price Negotiation
Packaging Details Plastic film package or Polywooden Package
Delivery Time 10 Working Days
Payment Terms T/T / L/C
Supply Ability 400 Units Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Generator Type Open-frame Frequency 50Hz
Power Rating 140KVA Engine Brand Weifang Ricardo
Alternator Type Brushless / Single Bearing Governor MECH
Cooling System Water Warranty 18Months/1500hours
Highlight

140kVA standby diesel generator

,

3 Phase standby diesel generator

,

154kVA Water Cooled Diesel Generators

Leave a Message
Product Description

Product Description:

Open Type Diesel Generators powered by Weifang Ricardo diesel engines offer 18 Months/1500hours warranty, 50Hz frequency and 140KVA power rating. Its cooling system is Air/Water. These Ricardo Diesel Engine Generators are highly reliable and come with superior performance. They are a great choice for your business. Ricardo Diesel Engine Generators are designed with the highest standards and offer superior quality. Weifang Ricardo diesel engines provide optimal performance and are known for their durability and reliability. Trust Ricardo Diesel Engine Generators to power your business for years to come.



Features:

  • Open Type Diesel Generators: Open-frame Generator, Diesel-Powered Generator, Open-Type Generator
  • Cooling System: Water
  • Frequency: 50Hz
  • Generator Type: Open-frame
  • Governor: Manual
  • Warranty: 18Months/1500hours
3 Phase 140kVA Standby Diesel Generator 154kVA water cooled diesel generators Emergency Use 0

Technical Parameters:



Technical Specification:
140kVA Standby China Generator Set Specification
Genset Model TG154R TG154RS
Open Silent
Frequency 50Hz
Voltage 400/230V
Phase 3 Phase, 4 Wires
Rate Current 202.1A
Prime Power 112kW / 140kVA
Standby Power 123kW / 152kVA
Engine Model 6RT80-132D
Alternator Model TGI274S120
Controller Mebay DC52D
Weight & Dimensions
Length (mm) 1950 2600
width (mm) 1000 1150
Height (mm) 1400 1700
Weight (kgs) 1550 2050
Engine Specification
Brand KOFO Ricardo Series
Engine Model 6RT80-132D
Prime power (kw) 132
Injection Indirect
Aspiration Turbocharged
No. of cylinders 4
Bore of Stroke (mm) 110 x 140
Displacement (L) 7.98
Cooling water
Compression Ratio 17:1
Engine Oil capacity (L) 10
Coolant Capacity ( In radiator) 10
Governor Mech
Air Filter Dry Element
Fuel consumption at 50Hz
100% Load (L/h) 30.7
75% Load (L/h) 23
50% Load (L/h) 15.3
25% Load (L/h) 7.7
Alternator Specification
Brand Tecgen
Model TGI274S120
Rate Output 120kW
Pole 4
Winding Connections Star
Insulation Class H
Enclosure IP23
Altitude (m) ≤1000
Voltage Regulator AVR
Steady State Voltage Regulator 1%
Bearing Single
Controller System
Brand Mebay
Model DC52D
Functions Control with AMF module
Static with auto. battery charger
Emergency stop push button
ATS Connection
OPTIONAL EQUIPMENTS
ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts



3 Phase 140kVA Standby Diesel Generator 154kVA water cooled diesel generators Emergency Use 1

Applications:

Tecgen Open DG Set is a high-quality Open-Type Generator Set which is manufactured by Weifang Ricardo Genset. Its model number is TG154R, and it is certified with ISO / CE / SASO / CIQ /CO. It has a manual governor and air/water cooling system, and it is available with a brushless or single bearing alternator with a 50Hz frequency. It comes with a minimum order quantity of 1 SET and a competitive price. It also offers a generous supply of 400 Units Per Month, and it is packaged with either plastic film or polywooden packages. The delivery time is 10 working days, and the payment terms are T/T / L/C.



Customization:

Tecgen Open DG Set – Open-Type Diesel Generator

Tecgen Open DG Set is an emergency backup generator that is powered by Diesel. It is an open-type diesel generator with a power rating of 140KVA. It is built with a Weifang Ricardo engine and has a governor of manual type. The frequency is 50Hz and it is certified with ISO / CE / SASO / CIQ /CO. This generator set is available with a minimum order quantity of 1 SET and the price is negotiable.

Packaging Details: Plastic film package or Polywooden Package
Delivery Time: 10 Working Days
Payment Terms: T/T / L/C
Supply Ability: 400 Units Per Month
Place of Origin: Fuzhou, China
Model Number: TG154R



Packing and Shipping:

Packaging and Shipping for Open Type Diesel Generators

Open type diesel generators are packed in wooden boxes, then placed on pallets and securely strapped together. The boxes are then wrapped in plastic to ensure no moisture enters the boxes. After that, the boxes are transported to the shipping dock.

At the shipping dock, each box is inspected for integrity. Once the inspection is complete, the boxes are loaded onto the truck for transport to the destination. The truck driver will follow company protocols and drive safely to the delivery location.

Once the diesel generators arrive at the destination, the customer is required to check the boxes for any damage or missing parts. If all is well, the customer can begin using the generators right away.

3 Phase 140kVA Standby Diesel Generator 154kVA water cooled diesel generators Emergency Use 23 Phase 140kVA Standby Diesel Generator 154kVA water cooled diesel generators Emergency Use 33 Phase 140kVA Standby Diesel Generator 154kVA water cooled diesel generators Emergency Use 4

FAQ:

Q1: What is the Brand Name of the Open Type Diesel Generators?

A1: The Brand Name is Tecgen Open DG Set.

Q2: What is the Model Number of the Open Type Diesel Generators?

A2: The Model Number is TG154R.

Q3: Where is the Place of Origin of the Open Type Diesel Generators?

A3: The Place of Origin is Fuzhou, China.

Q4: What are the Certifications of the Open Type Diesel Generators?

A4: The Certifications are ISO / CE / SASO / CIQ /CO.

Q5: How many Units can be supplied Per Month?

A5: 400 Units can be supplied Per Month.
