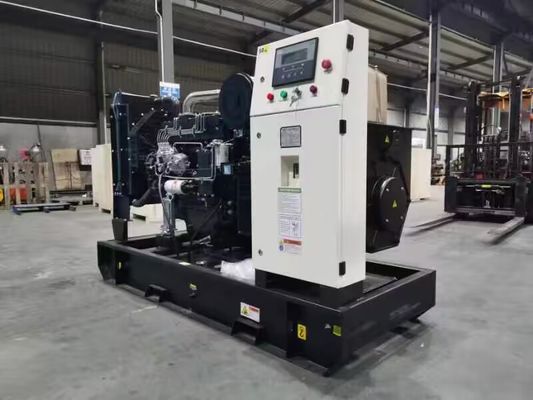

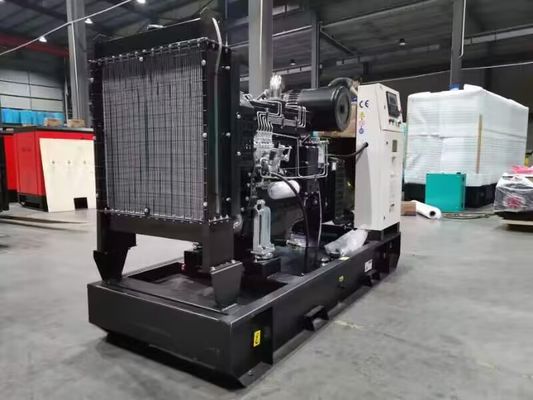

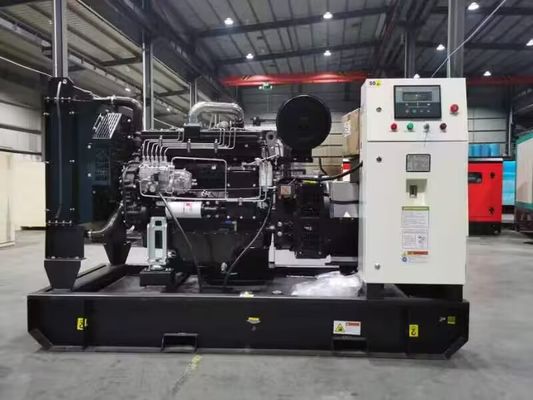

150kVA Open Type Diesel Generators High Performance 220-440V Fuel Type Diesel
| Place of Origin | China |
|---|---|
| Brand Name | Tecgen China Engine Genset |
| Certification | CE/SONCAP/SASO/SGS |
| Model Number | TG |
| Minimum Order Quantity | 1 Uint |
| Price | Negotiation |
| Packaging Details | Plywood case package or By Foam and PE film package |
| Delivery Time | 15 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 400 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Fuel Type | Diesel | Power Range | 8kW - 400KW |
|---|---|---|---|
| Speed | 1500/1800rpm | Cooling System | Water Cooled |
| Frequency | 50/60Hz | Voltage | 220-440V |
| Warranty | 1500 Running Hours | Product Name | China Made Genset |
| Highlight | 150kVA Open Type Diesel Generators,Open Type Diesel Generators High Performance,440V 150kva generator |
||
Product Description
150kVA High-Performance Chinese Diesel Generators Voltage 220-440V Fuel Type Diesel
Product Description:
China Made Genset is a reliable and durable diesel generating set that provides silent, efficient and cost-effective power. It is equipped with Chinese engines with power range from 8kW to 400KW, and comes with a water-cooled cooling system that ensures its long-term operation. It is also designed with a low fuel consumption and low emission rate, providing a safe and environment-friendly operation. With its superior performance and safety features, China Made Genset is the ideal choice for customers looking for a generator set that offers reliable and cost-effective power.
Features:
- China Diesel Generator: China Made Genset
- SDEC Diesel Generator: Fuel Type: Diesel
- China DG Genset: Voltage: 220-440V, Warranty: 1500 Running Hours, Speed: 1500/1800rpm
Technical Parameters:
Specifications:
| Technical Parameter for Diesel Generator | Genset Model | TG165R |
| Prime Power | 150kVA/120kW | |
| Standby Power | 165kVA/132kW | |
| Frequency | 50Hz | |
| Rated Voltage | 400V | |
| Power Factor | 0.8 | |
| Engine Brand | KOFO | |
| Engine Model | 6RT80-132D | |
| Alternator Brand | Tecgen | |
| Alternator Model | TGI274S-120 | |
| Engine General Data | Engine Power(kW) | 132 |
| Cyl / Arrangement | 6L | |
| DSPL | 7.98 | |
| Aspiration Type | Turbocharged | |
| Speed Governor | Mechanical | |
| Fuel Consumption (g/kw.h)) | 231 | |
| Alternator Data | Model | TGI274S-120 |
| Brand | Tecgen Stamford | |
| Rate Output | 150kVA/120kW | |
| Frequency | 50Hz | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Protection Grade | IP 23 | |
| Control System | Brand | Smartgen |
| Model | HGM6120N | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| Alarm | ||
| Optional brand | ComAp, Deepsea | |
| Starting Voltage | 24V | |
Customization:
Customized Chinese Diesel Generators
We offer customized Chinese diesel generators with brand name Tecgen China Engine Genset and model number TG. These generators are CE/SONCAP/SASO/SGS certified and the minimum order quantity is 1 unit. Price is negotiable and packages are provided in plywood case or by foam and PE film package. Delivery time is 15 working days and payment terms are T/T, L/C. We can supply up to 400 units per month. The speed is 1500/1800 rpm, cooling system is water cooled, fuel type is diesel, voltage is 220-440V and power range is 8kW - 400KW.
Support and Services:
Chinese Diesel Generators offers technical support and services for its products. The technical support includes online solutions, telephone support, remote technical assistance, and on-site technical assistance. The service includes installation and commissioning, maintenance, and after-sales service.
