15KW 20KW Open Type Diesel Generators 30KW 40KW 50KW 80KW 100KW 150KW Ricardo Diesel Generator

  • 15KW 20KW Open Type Diesel Generators 30KW 40KW 50KW 80KW 100KW 150KW Ricardo Diesel Generator
  • 15KW 20KW Open Type Diesel Generators 30KW 40KW 50KW 80KW 100KW 150KW Ricardo Diesel Generator
  • 15KW 20KW Open Type Diesel Generators 30KW 40KW 50KW 80KW 100KW 150KW Ricardo Diesel Generator
  • 15KW 20KW Open Type Diesel Generators 30KW 40KW 50KW 80KW 100KW 150KW Ricardo Diesel Generator
Place of Origin China
Brand Name Ricardo
Certification CE/SONCAP/FCC/SGS
Model Number TG30R
Minimum Order Quantity 1 Unit
Price Negotiation
Packaging Details Plywood case Package
Delivery Time 15-20 working days after received deposit
Payment Terms T/T, L/C
Supply Ability 300 Units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Diesel Generator Set Engine Brand Ricardo
Alternator Brand Tecgen Control System AMF/ATS
Output Type AC Three Phase Cooling Method Water Cooling
Conditions Of Use Land Use Ambient Temp ≤40 C
Genset Type Open Or Silent Color Color Is Optional
High Light

20KW Open Type Diesel Generators

,

15KW Open Type Diesel Generators

,

150KW Ricardo Diesel Generator
Leave a Message
Product Description

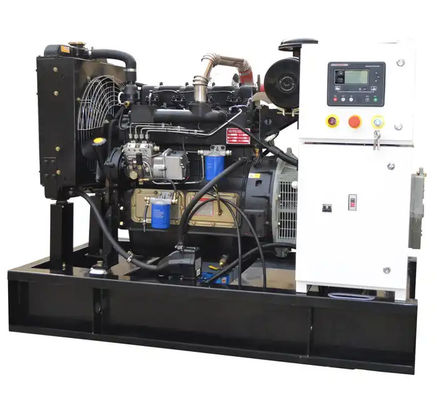

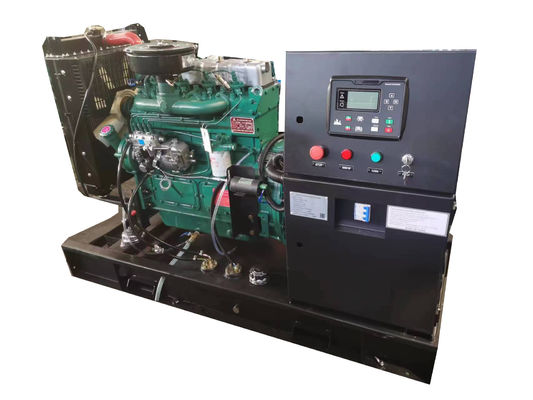

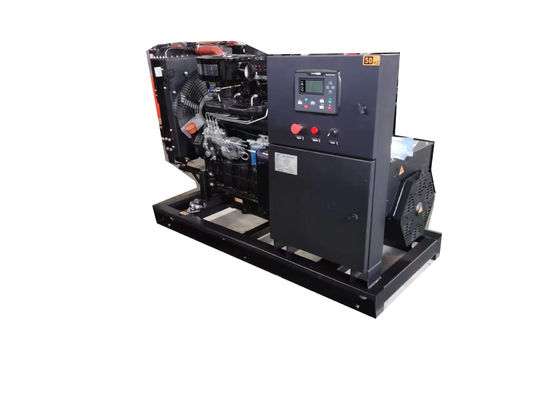

15KW 20KW 30KW 40KW 50KW 80KW 100KW 150KW Open Type Diesel Genset Ricardo Diesel Generator Set



Open Type Diesel Generators



1) Engine: Ricardo diesel engine, Water-cooled

2) Alternator: Tecgen Stamford Tech Alternator

Brushless H class insulation, Self excitation, IP 23 protection, AVR regulator,THF < 5%,low radio interference.

3) 3 phase 4 wires / 1 phase 2 wires

4) Three phase voltage Available :208V/220V/230V/240V/380V/390V/400V/415V/440V/460V/480V

Single phase available:100-250V



PRODUCTS DETAILS



50HZ 3Phase 380V

Genset Model Standby Power Prime Power Diesel Engine Alternator
KVA KW KVA KW Ricardo Tecgen Stamford
TG14N 14 11 13 10 M4D18 TG164S-10
TG18N 18 14 16 13 M4D18 TG164S-13
TG21N 21 17 19 15 M4D18 TG184S-15
TG25R 25 20 23 18 K490D TG184S-18
TG28R 28 22 25 20 K4100D TG184S-20
TG30R 30 24 28 22 K4100D TG184S-22
TG34R 34 28 31 25 K4100D TG184S-25
TG41R 41 33 38 30 KT40D TG184S-30
TG44R 44 35 40 32 K4100ZD TG184S-32
TG47R 47 37 43 34 K4102ZD TG224S-34
TG55R 55 44 50 40 ZH4105ZD TG224S-40
TG62R 62 50 56 45 ZH4105ZD TG224S-45
TG69R 69 55 63 50 ZH4105ZLD TG224S-50
TG76R 76 61 69 55 N4105ZLD TG224S-55
TG88R 88 70 80 64 R4108IZLD TG224S-64
TG103R 103 83 94 75 R6105ZD TG274S-75
TG110R 110 88 100 80 R6105AZD TG274S-80
TG138R 138 110 125 100 R6105AZLD TG274S-100
TG165R 165 132 150 120 R6105IZLD TG274S-120
TG206R 206 165 188 150 R6110ZLD TG274S-150
TG220R 220 176 200 160 R6113ZLD TG274S-160



15KW 20KW Open Type Diesel Generators 30KW 40KW 50KW 80KW 100KW 150KW Ricardo Diesel Generator 015KW 20KW Open Type Diesel Generators 30KW 40KW 50KW 80KW 100KW 150KW Ricardo Diesel Generator 1





Tecgen Power Generator Feature:

1, Output range: 10kVA to 3000kVA Heavy Duty diesel generator.

2, Different brands of engine, alternator and controller as options

3, Coupled with Stamford alternator, Leroy Somer alternator, Marathon alternator or Tecgen Power alternator

4, Open type, silent type, super silent type or mobile type generator.

5, CE, ISO9001-2008, SONCAP, SASO and SGS certified

6, Starter System with maintenance-free battery

7, Control Panel with Key Start (Power Switch)

8, With 100% fire-resistant sound attenuating sponge

9, 10% of rate output of overload for 1hours in every 12hours

10, Spare parts are easy to get from worldwide market with much cheaper price

11, Perfect after-service network

12, Both 50Hz and 60Hz

13, Chint circuit breaker

14, Three-phase output meets differing requirements

15, ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option

16, Working Hours Base Fuel Tank

17, Anti-Vibration Mounted

18, Industrial silencer and flexible exhaust hose

19, 0-110% load test for each unit before delivery

20, Warranty with 1000 hours or one year, which comes first.





Service:
1)Before-sale Service:
We provide detailed product technical parameters for equipment choosing and system designing.
2)Service quality assurance:
Our sale staffs are all experlence and professional ,who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service:
We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.
4)Spare parts supply:
We provide all kinds of spare parts and technical support.
