CKD Type open type diesel generator set
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen CKD-type Genset |
| Certification | ISO / CE / SASO / CIQ /CO |
| Model Number | TG500C |
| Minimum Order Quantity | 1 SET |
| Price | Negotiation |
| Packaging Details | Plastic film package or Polywooden Package |
| Delivery Time | 10 Working Days |
| Payment Terms | T/T / L/C |
| Supply Ability | 400 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency | 50Hz | Genset Standby Ouput | 60kW / 80kVA |
|---|---|---|---|
| Number Of Cylinders | 6 CYLINDER | Voltage Range | 220-440V |
| Genset Type | CKD Type Diesel Generators | Voltage Regulation | AVR |
| Maintenance | Easy | Speed Governor | ECU |
| Highlight | 400kW open type diesel generator set,CKD open type diesel generator set,80kVA open type diesel generators |
||
Product Description

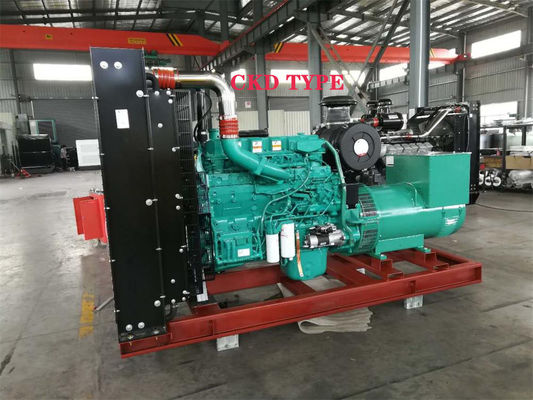

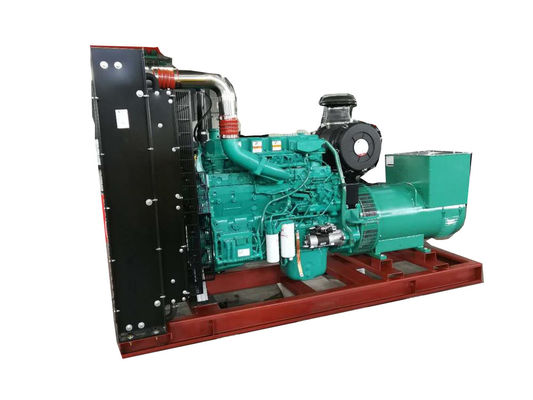

400kW CKD type diesel generator couple AC alternator with 50C radiator Installed temporary iron base
Product Description:
Introducing CKD-Type Diesel Generators, the perfect diesel-fueled generator solution for your needs. These CKD-type generators are designed to be reliable, with features such as an electric speed governor and AVR voltage regulation, providing a wide voltage range from 220 to 440V. The generators also come with an easy maintenance option, making upkeep simple. With a genset standby output of 400kW/500kVA, these open-type diesel generators are a reliable and cost-efficient energy source for your business needs.
Features:
- Product Name: CKD Type Diesel Generators
- Frequency: 50Hz
- Voltage Regulation: AVR
- Number of Cylinders: 6 CYLINDER
- Genset Type: CKD Type Diesel Generators
- Maintenance: Easy
- Engine: DCEC Cummins Diesel Engine
- Generator: CKD Open-frame Generator
- Manufacturer: Cummins Diesel Engine
Technical Parameters:
| Technical Specification: | ||
| 450kVA CKD Type Generator Set Specification | ||
| Genset Model | TG500C | TG500CS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 400/230V | |
| Phase | 3 | |
| Rate Current | 649.5A | |
| Prime Power | 360kW / 450kVA | |
| Standby Power | 400kW / 500kVA | |
| Engine Model | QSZ13-G2 | |
| Alternator Model | TGI354S360 | |
| Controller | DSE7320 | |
| Weight & Dimensions | ||
| Length (mm) | 3400 | 4200 |
| width (mm) | 1270 | 1730 |
| Height (mm) | 2100 | 2230 |
| Weight (kgs) | 4166 | 5300 |
| Engine Specification | ||
| Brand | Cummins | |
| Engine Model | QSZ13-G2 | |
| Prime (kw) | 400 | |
| Injection | Indirect | |
| Aspiration | Turbocharged and Air-air Intercooled | |
| No. of cylinders | 6 | |
| Bore of Stroke (mm) | 130 x 163 | |
| Displacement (L) | 25.8 | |
| Cooling | water | |
| Compression Ratio | 17:1 | |
| Engine Oil capacity (L) | 23.1 | |
| Coolant Capacity ( In radiator) | 23.1 | |
| Governor | ECU | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 70.4 | |
| 75% Load (L/h) | 50.8 | |
| 50% Load (L/h) | 44.5 | |
| 25% Load (L/h) | 20.9 | |
| Alternator Specification | ||
| Brand | Leroy Somer | |
| Model | TGI354S360 | |
| Rate Output | 360kW | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Deepsea | |
| Model | DSE7320 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Applications:
Tecgen CKD-type Genset is the most reliable and cost-effective diesel-driven generator for emergency backup generator. This CKD-type generator is made of top grade components and materials, certified by ISO / CE / SASO / CIQ /CO. It comes with a voltage range from 220-440V with 50Hz frequency and 6 CYLINDER. With advanced electric speed governor, it ensures smooth and quiet operation and offers stability in power supply. It has a minimum order quantity of 1 SET, and the price is negotiable. It can be packaged either with plastic film or polywooden to protect it from damage. The delivery time is 10 working days, and the payment terms are T/T / L/C. The maximum supply ability is 400 units per month.
Customization:
Customized Service for Tecgen CKD-type Genset (Model TG500C)
Product Attributes:
- Brand Name: Tecgen CKD-type Genset
- Model Number: TG500C
- Place of Origin: Fuzhou, China
- Certification: ISO / CE / SASO / CIQ /CO
- Minimum Order Quantity: 1 SET
- Price: Negotiation
- Packaging Details: Plastic film package or Polywooden Package
- Delivery Time: 10 Working Days
- Payment Terms: T/T / L/C
- Supply Ability: 400 Units Per Month
- Voltage Regulation: AVR
- Frequency: 50Hz
- Number of Cylinders: 6 CYLINDER
- Maintenance: Easy
- Genset Standby Ouput: 400kW / 500kVA
We offer customized service for Tecgen CKD-type Genset (Model TG500C), which is powered by diesel engine. It is designed to provide reliable power for industrial, commercial and residential application. This diesel-powered generator is convenient to maintain and has a voltage regulation of AVR, frequency of 50Hz and standby output of 400kW/500kVA. It also has 6 cylinders and is certified with ISO/CE/SASO/CIQ/CO.
Packing and Shipping:
Packaging and Shipping for CKD Type Diesel Generators
All Open Type Diesel Generators are securely packaged and shipped with the following precautions:
- Metal frames and other heavy parts are covered with plastic film to protect them from moisture.
- The generator is packed in a wooden box or carton to avoid damage during transportation.
- The generator is loaded into the package with special care and attention to ensure that it is not damaged during shipping.
- The package is clearly labeled with the product information and shipping details.
```
FAQ:
Q&A about Tecgen Open-type Genset TG500C
- Q: What is the Brand Name of this product?
A: The Brand Name is Tecgen Open-type Genset. - Q: What is the Model Number?
A: The Model Number is TG500C. - Q: Where is the Place of Origin?
A: The Place of Origin is Fuzhou, China. - Q: What are the Certifications?
A: The Certifications are ISO / CE / SASO / CIQ /CO. - Q: What is the Minimum Order Quantity?
A: The Minimum Order Quantity is 1 SET.
