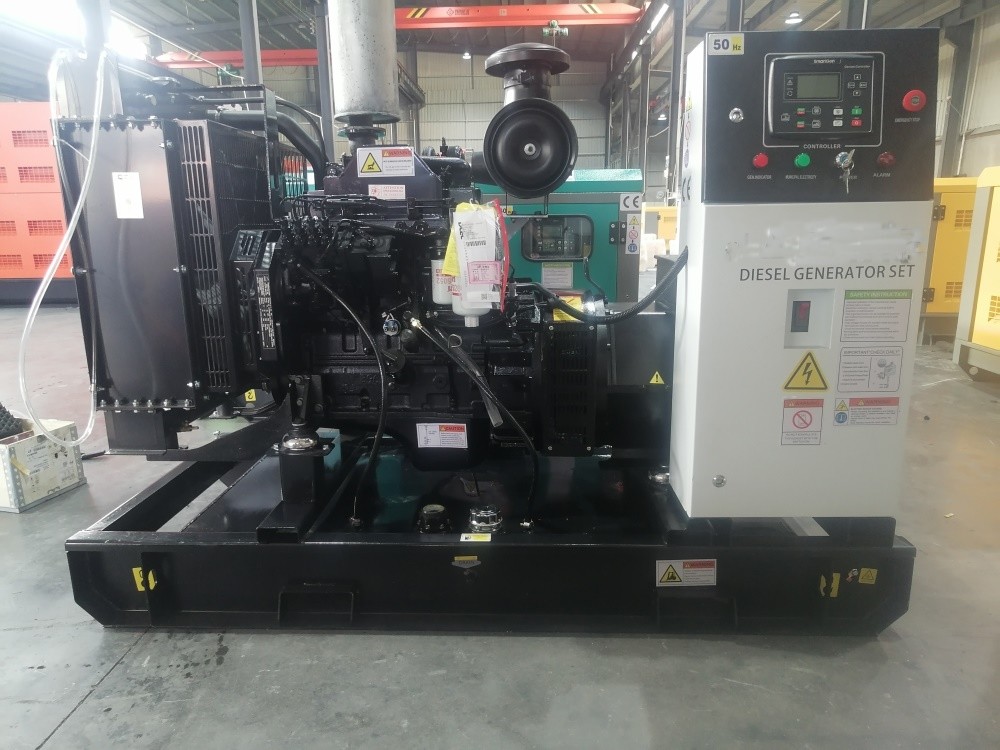

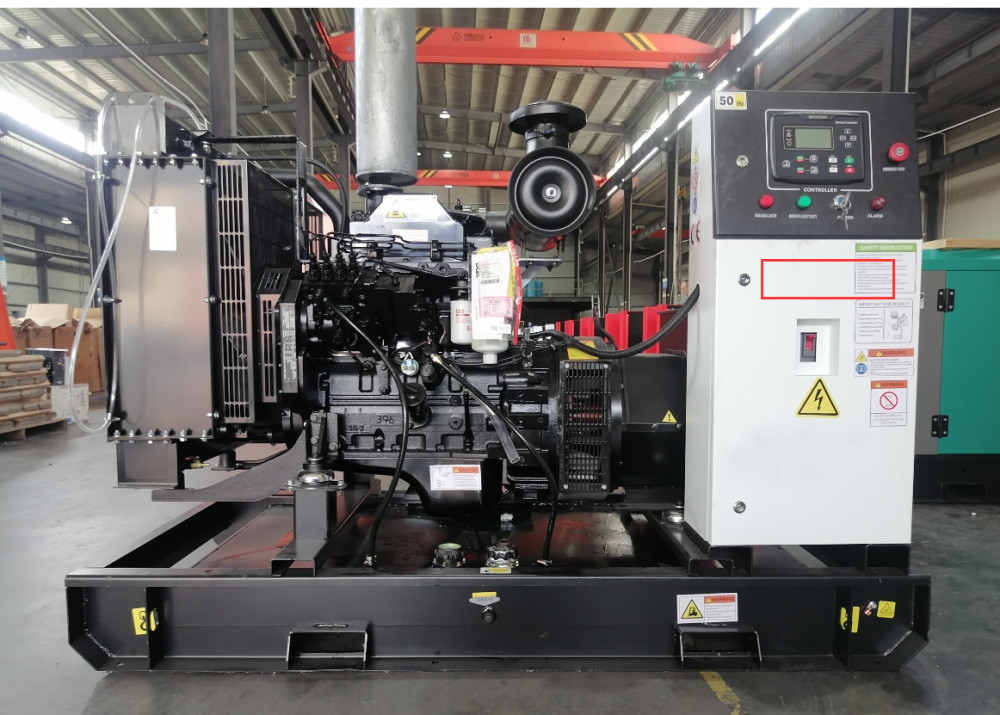

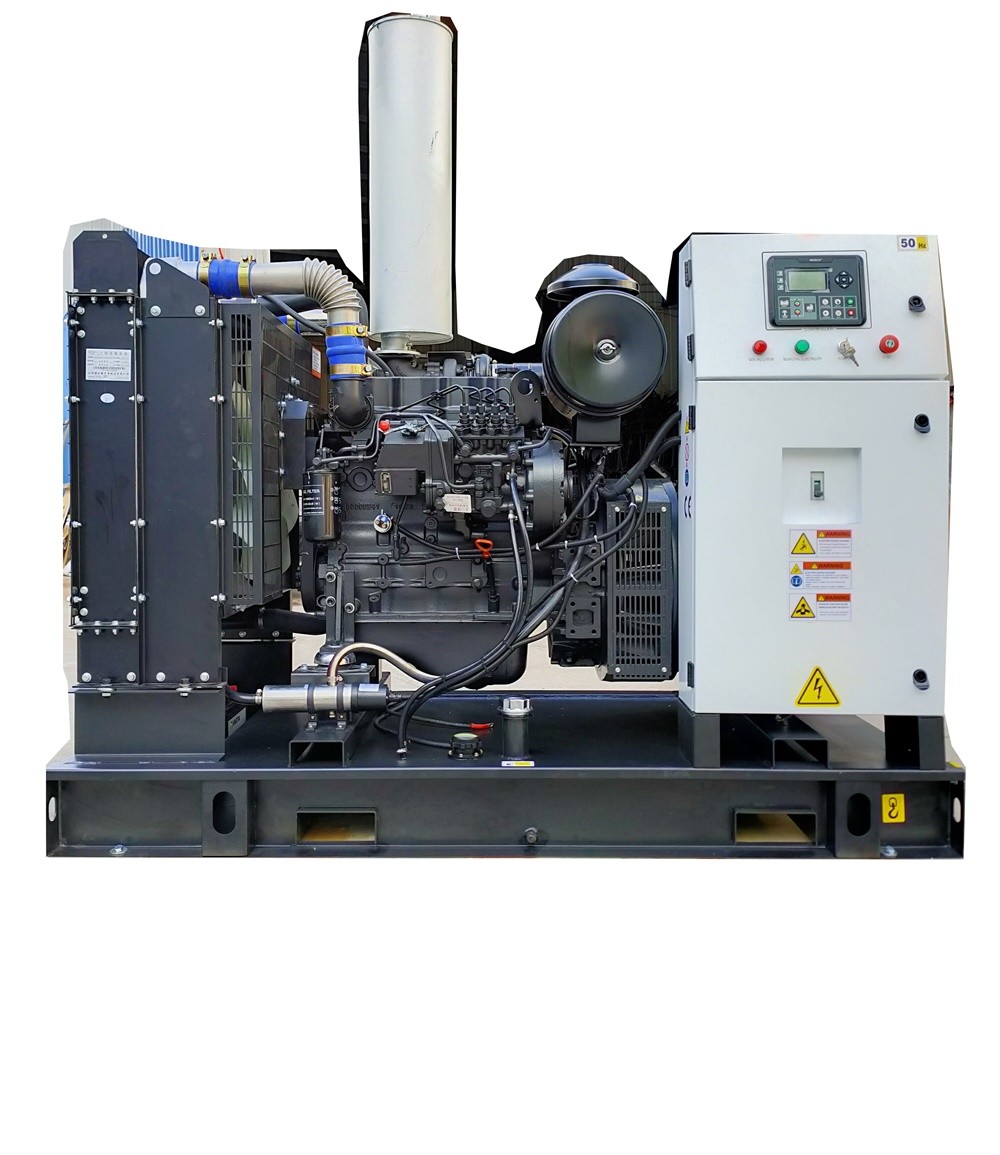

50kVA 60kVA 40kW 48kW Open Frame Diesel Generators With Smartgen ATS Controller
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Open Type Diesel Generators | Engine Brand | DCEC Cummins |
|---|---|---|---|
| Alternator Brand | Copy Stamford | Frequency | 50Hz |
| Genset Phase | 3 Phase, 4 Wire | Genset Output | 50kVA & 60kVA Prime |
| Controller | Smartgen HGM6120N | Breaker | Aisikai MCCB Breaker |
| Fuel Tank Capacity | 150L | Delivery Time | 7 Working Days |
| Highlight | 48kW Open Frame Diesel Generators,40kW Open Frame Diesel Generators,60kVA 50kva diesel generator |
||
Product Description
50kVA & 60kVA Open Type Diesel Generator 40kW & 48kW Open Frame Diesel Generators with Smartgen ATS Controller
GENERATORS STANDARD SUPPLY SCOPE
| Exhaust silencer | Flexible pipes | Flange | Base frame | Main circuit breaker |
| Starting battery | Battery wires | Battery charger | Float battery charger | AVR |
| Cooling radiator | Wires diagram | Manual books | Auto control panel | Forklift Mount |
GENERATORS OPTIONAL PARTS
| Engine & Radiator | Alternator part | Electric part | Fuel tank part | Others |
| Water preheater | PMG | ATS | External daily fuel tank | Weatherproof canopy |
| Lub oil pre-heater | Anti-condensation heater | Synchronization panel | Automatic fuel pump | Mobile trailer |
| Spare parts | Parallel droop | ABB breaker | Oil drain pump | Containerized |
CUMMINS 50kVA & 60kVA DIESEL GENERATOR SPECIFICATIONS:
| Technical Specification: | ||||
| Cummins Generating Set Specification | ||||
| Genset Model | TG55C | TG55CS | TG66C | TG66CS |
| Open | Silent | Open | Silent | |
| Frequency | 50Hz | |||
| Voltage | 400/230V | |||
| Phase |
3 3 |
|||
| Rate Current (A) | 72.2 | 86.6 | ||
| Prime Power (KW/KVA) | 40/50 | 48/60 | ||
| Standby Power(KW/KVA) | 44/55 | 53/66 | ||
| Engine Model | 4BTA3.9-G2 | 4BTA3.9-G2 | ||
| Alternator Model | TGI224S40 | TGI224S48 | ||
| Controller | Smartgen HGM6120N | |||
| Fuel Tank Capacity | 150L | |||
| Weight And Dimensions | ||||
| Length (mm) | 1750 | 2300 | 1750 | 2300 |
| width (mm) | 840 | 980 | 840 | 980 |
| Height (mm) | 1360 | 1460 | 1360 | 1460 |
| Weight (kgs) | 930 | 1290 | 930 | 1290 |
| Engine Specification | ||||
| Engine Model | 4BTA3.9-G2 | |||
| Prime/Standby power (kw) | 58/64 | |||
| Injection | Indirect | |||
| Aspiration | Turbocharged & Intercooled | |||
| No. of cylinders | 4 | |||
| Bore of Stroke (mm) | 102x120 | |||
| Displacement (L) | 3.9 | |||
| Cooling | water | |||
| Compression Ratio | 17.3:1 | |||
| Engine Oil capacity (L) | 8.3 | |||
| Coolant Capacity ( In radiator) | 8.3 | |||
| Governor | Electric | |||
| Air Filter | Dry Element | |||
| Fuel consumption | at 50Hz | at 50Hz | ||
| 100% Load (L/h) | 14.9 | 14.9 | ||
| 75% Load (L/h) | 11.4 | 11.4 | ||
| 50% Load (L/h) | 8.1 | 8.1 | ||
| 25% Load (L/h) | 4.8 | 4.8 | ||
| Alternator Specification | ||||
| Brand | Tecgen | Tecgen | ||
| Model | TGI224S40 | TGI224S48 | ||
| Rate Output (kVA) | 50 | 60 | ||
| Pole | 4 | |||
| Winding Connections | Star | |||
| Insulation Class | H | |||
| Enclosure | IP23 | |||
| Altitude (m) | ≤1000 | |||
| Voltage Regulator | AVR | |||
| Steady State Voltage Regulator | 1% | |||
| Bearing | single | |||
| Controller System | ||||
| Brand | Smartgen | |||
| Model | HGM6120N | |||
| Functions | Control with AMF module | |||
| Static with auto. battery charger | ||||
| Emergency stop push button | ||||
| ATS Connection | ||||
| OPTIONAL EQUIPMENTS | ||||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||||
Product Description
1 Brand new water-cooled diesel engine with 50 ºC tropical radiator.
2 Brand new AC brushless alternator, 2 years warranty.
3 Smartgen digital controller.
4 Maintenance-free starter battery with battery cable, battery terminal caps and battery isolator switch.
5 Oil, Coolant, Fuel and Water Drain on the base frame. Let genset clean more easy
6 Anti-vibration mountings between engine/alternator and base frame.
7 0%, 25%, 50%, 75%,100%,110% loading test by load bank for each generator unit before shipping standard.
8 Genset with 8-10 hours fuel tank.
9 General catalog in English in PDF format that illustrates the quality and added values of manufacturing.
10 An additional kit of filters and basic spare parts is provided, on all models.
11 Using 100% free-resistant sound attenuation material, has very good adhesive strength and ensures that the sound attenuation materials do not fall off over time.
12 Manufacure strictly according to ISO9001-2008, GB/T19001-2008 international quality management system.
FAQ:
Q1.Are you a factory or trading company?
We have THREE modern factory. We have 50 factory workers and 5 of them are quality control and engineer guys. Welcome to visit our factory.
Q2. Is Your products the lowest price?
TECGEN take the quality into consideration prior. The price is based on the quality level and the order quantity. We have different quality level products for buyers option and discount is available from us when the order is big.
Q3.What's your warranty?
Re: All our products we offer one year warranty or 1500 hours which comes first.
Q4. If the goods in transit damage, how to do?
First of all, we will use stable packing, the possibility of the goods damaged during the shipping is low. If the goods is damaged during shipping and we covered the insurance, we will claim the insurance company and let them cover the loss. If there is no insurance cover, we will claim the shipping company and some times, we cover the loss of the goods for client.
Q5. Can we add our logo on products?
Yes, there are several ways to do this. We can put the label of your logo on the products or make the silk print of your logo on the products. It is free.
Q6. can we customize genset?
OEM and ODM are welcomed from Tecgen. We have rich experiences in this area.
Q7. What's your delivery time?
Re: 7-20 work days after we get the down payment, if your order is some special engine and alternator, then the delivery time is longer.
Q8. What's your payment?
Re: We accept T/T, L/C.
