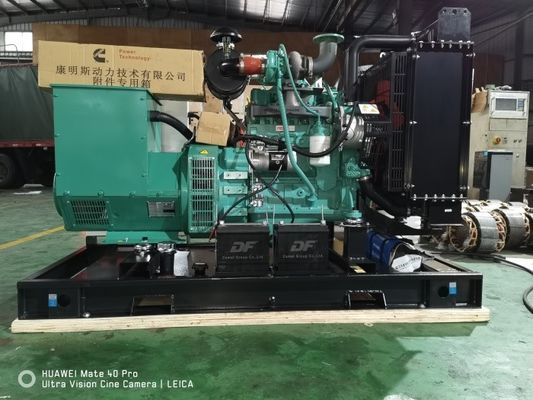

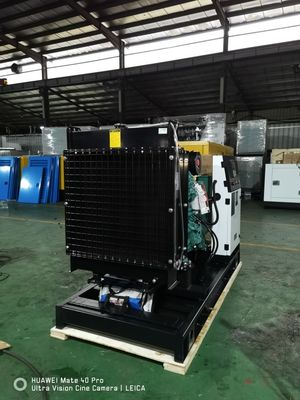

240kW 60Hz Diesel Generator Set With Electric Speed Governor AC Brusless Alternator
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Open-type Genset |
| Certification | ISO / CE / SASO / CIQ /CO |
| Model Number | TG300CD6 |
| Minimum Order Quantity | 1 SET |
| Price | Negotiation |
| Packaging Details | Plastic film package or Polywooden Package |
| Delivery Time | 10 Working Days |
| Payment Terms | T/T / L/C |
| Supply Ability | 400 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Number Of Cylinders | 6 CYLINDER | Voltage Regulation | AVR |
|---|---|---|---|
| Speed Governor | Electric | Frequency | 60Hz |
| Maintenance | Easy | Genset Type | Open Type Diesel Generators |
| Genset Standby Ouput | 240kW / 300kVA | Voltage Range | 120-480V |
| Highlight | 60Hz diesel generator set,240kW diesel generator set,480V diesel engine generator set |
||
Product Description
240kW 60Hz Diesel Generator set with electric speed governor AC brusless alternator
Product Description:
Tecgen Cummins Genset is a diesel-driven generator that is designed for the most demanding applications. Our open type diesel generators provide efficient and reliable power, with Genset Standby Output up to 240kW/300kVA, Speed Governor of Electric, Frequency of 50Hz and Number of Cylinders of 6 Cylinders. Tecgen Cummins Genset is the perfect solution for your need of reliable power supply.
Our open type diesel generators are designed with advanced technology and quality components, so they can help you reduce operating costs while providing reliable and efficient power. Our gensets have high-efficiency engines and reliable controls, which make them the perfect choice for your energy needs. Tecgen Cummins Genset will provide you with the most reliable and efficient power solution.
We provide a full range of open type diesel generators, from compact and lightweight models to larger and more powerful models. Our gensets are easy to install and maintain, and they come with a variety of features to meet your specific needs. Our experienced technicians are available to help you with any questions you may have.
Tecgen Cummins Genset is the perfect choice for your power needs. With our reliable and efficient power solutions, you can be sure that your business will be running smoothly and efficiently. Our open type diesel generators are designed to provide you with the most reliable and efficient power solutions, so you can be sure that your business will be running smoothly and efficiently.
Features:
- Product Name: DCEC Cummins Open Type Diesel Generators
- Voltage Range: 120-480V
- Frequency: 50Hz
- Speed Governor: Electric
- Genset Type: Open Type Diesel Generators
- Number of Cylinders: 6 CYLINDER
- Features: Emergency backup generator, Diesel-Driven Generator
Technical Parameters:
| Technical Specification: | ||
| 240kW Cummins Generator Set Specification | ||
| Genset Model | TG300CD6 | TG300CSD6 |
| Open | Silent | |
| Frequency | 60Hz | |
| Rate Speed | 1800RPM | |
| Voltage | 208/120V | |
| Phase | 3 Phase, 4 or 12 Wires | |
| Rate Current | 763.4A | |
| Prime Power | 220kW / 275kVA | |
| Standby Power | 240kW / 300kVA | |
| Engine Model | Cummins 6LTAA8.9-G2 | |
| Alternator Model | TGI274S220 | |
| Controller | DSE6020 | |
| Weight & Dimensions | ||
| Length (mm) | 2700 | 3600 |
| Width (mm) | 1100 | 1200 |
| Height (mm) | 1600 | 1800 |
| Weight (kgs) | 2050 | 2900 |
| Engine Specification | ||
| Brand | DCEC Cummins | |
| Engine Model | 6LTAA8.9-G2 | |
| Prime/Standby power | 235kW / 258kW | |
| Injection | Indirect | |
| Aspiration | Turbocharged & Charge Air Cooled | |
| No. of cylinders | 6 | |
| Speed | 1800RPM | |
| Bore of Stroke (mm) | 114 x 145 | |
| Displacement (L) | 8.9 | |
| Cooling | Water Cooled | |
| Compression Ratio | 16.6:1 | |
| Engine Oil capacity (L) | 11.1 | |
| Coolant Capacity ( In radiator) | 11.1 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | @ 60Hz | |
| 100% Load (L/h) | 59 | |
| 75% Load (L/h) | 44 | |
| 50% Load (L/h) | 30 | |
| 25% Load (L/h) | 17 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI274S220 | |
| Rate Output | 275kVA | |
| Speed | 1800RPM | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Deepsea | |
| Model | DSE6020 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Applications:
Tecgen Open-type Genset, powered by DCEC Cummins diesel engine, is a diesel-fueled generator that is designed for a wide range of applications. This open-type genset is certified by ISO/CE/SASO/CIQ/CO and comes with minimum order quantity at 1 SET. With its reliable and maintenance-free power supply, this Tecgen genset is suitable for both domestic and international markets. It has a frequency of 60Hz and a voltage range of 120-480V. It also features 4 cylinders and can be easily maintained. The packaging details are plastic film package or polywooden package, and the delivery time is 10 working days. Besides, the payment terms are T/T/L/C and the supply ability is 400 units per month. The price is negotiable.
Customization:
Tecgen Open-Type Genset: Customized Services
Tecgen Open-Type Genset is a reliable and efficient open-type generator, which is designed to provide emergency backup power for various occasions. With the following attributes, Tecgen Open-Type Genset is the perfect emergency backup generator.
- Brand Name: Tecgen Open-Type Genset
- Model Number: TG300CD6
- Place of Origin: Fuzhou, China
- Certification: ISO / CE / SASO / CIQ /CO
- Minimum Order Quantity: 1 SET
- Price: Negotiation
- Packaging Details: Plastic film package or Polywooden Package
- Delivery Time: 10 Working Days
- Payment Terms: T/T / L/C
- Supply Ability: 400 Units Per Month
- Maintenance: Easy
- Frequency: 60Hz
- Voltage Range: 120-480V
- Genset Standby Ouput: 240kW / 300kVA
- Voltage Regulation: AVR
Tecgen Open-Type Genset is the perfect solution for emergency backup power. With its reliable and efficient design, you can count on it when you need it.
Packing and Shipping:
Open Type Diesel Generators are packaged and shipped in an orderly and secure manner. Each generator is carefully packed and labeled to ensure that it reaches its destination in perfect condition.
The packaging of Open Type Diesel Generators includes use of a sturdy cardboard box that is lined with foam and bubble wrap to reduce the risk of damage during shipping. The box is then sealed with tape to ensure it is secure. The generators are then placed in the box and secured with foam inserts. The box is further reinforced with straps or padding to reduce the risk of damage.
The shipping of Open Type Diesel Generators is done using reputable carriers that provide insurance and tracking numbers. The shipping cost is calculated based on the weight and size of the package and the destination of the shipment. The package is insured to ensure that any damage or loss that may occur during shipping is covered.
FAQ:
- Q: What is the Brand Name of the Open Type Diesel Generators?
- A: The Brand Name of the Open Type Diesel Generators is Tecgen Open-type Genset.
- Q: What is the Model Number of the Open Type Diesel Generators?
- A: The Model Number of the Open Type Diesel Generators is TG300CD6.
- Q: Where is the Open Type Diesel Generators from?
- A: The Open Type Diesel Generators is from Fuzhou, China.
- Q: What is the Certificates of the Open Type Diesel Generators?
- A: The Certificates of the Open Type Diesel Generators is ISO / CE / SASO / CIQ /CO.
- Q: What is the Minimum Order Quantity of the Open Type Diesel Generators?
- A: The Minimum Order Quantity of the Open Type Diesel Generators is 1 SET.
