600kW Open Type Diesel Generators Perkins 6 Cylinder Diesel Engine Generator 750kVA

Place of Origin Fuzhou, China
Brand Name Tecgen Open-type Genset
Certification ISO / CE / SASO / CIQ /CO
Model Number TG821P
Minimum Order Quantity 1 SET
Price Negotiation
Packaging Details Plastic film package or Polywooden Package
Delivery Time 10 Working Days
Payment Terms T/T / L/C
Supply Ability 400 Units Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Genset Type Open Type Diesel Generators Frequency 50Hz
Genset Prime Ouput 600kW / 750kVA Voltage Regulation AVR
Voltage Range 220-440V Maintenance Easy
Speed Governor Electric Number Of Cylinders 6 CYLINDER
Highlight

600kW Open Type Diesel Generators

,

Perkins Open Type Diesel Generators

,

750kVA 6 cylinder diesel engine generator

Leave a Message
Product Description

600kW Perkins 6 cylinder diesel generator 750kVA open type genset with Easy Maintenance

Product Description:

Open Type Diesel Generators are the perfect choice for emergency backup needs. These generators use a 6-cylinder Perkins UK engine that is powered by diesel fuel, providing reliable power when needed most. The voltage regulation is provided by an AVR, making it easy to maintain and regulate the generator. With a PRIME output of 600kW / 750kVA, these diesel-powered generators provide a dependable power source for a variety of applications.

These Open Type Diesel Generators are designed for maximum efficiency and reliability. The 6-cylinder engine is capable of providing the power you need when electricity is not available or insufficient. The easy maintenance makes it simple to keep the generator running optimally, while the voltage regulation ensures that the power output is consistent. With a PRIME output of 600kW / 750kVA, these generators are the perfect choice for emergency backup needs.



Features:

  • Product Name: Perkins UK Open Type Diesel Generators
  • Number of Cylinders: Perkins 6 CYLINDER
  • Voltage Regulation: AVR
  • Maintenance: Easy
  • Frequency: 50Hz
  • Genset Type: Open Type Diesel Generators

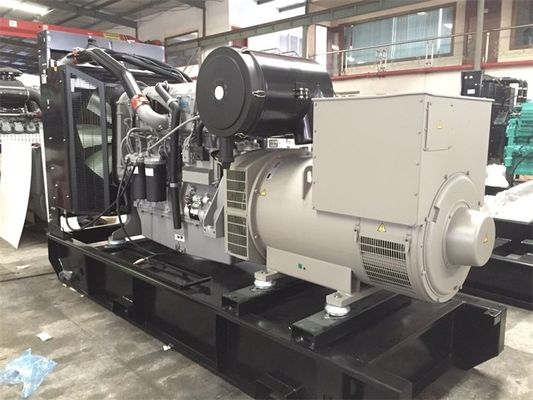

600kW Open Type Diesel Generators Perkins 6 Cylinder Diesel Engine Generator 750kVA 0

Technical Parameters:

Technical Specification:
600kW Perkins Generator Set Specification
Genset Model TG821P TG821PS
Open Silent
Frequency 50Hz
Voltage 400/230V
Phase 3
Rate Current 866.1A
Prime Power 600kW / 750kVA
Standby Power 656kW / 821kVA
Engine Model 4006-23TAG2A
Alternator Model HCI 634G
Controller ComAP IL-AMF 25
Weight & Dimensions
Length (mm) 4010 5100
width (mm) 1710 2100
Height (mm) 2100 2300
Weight (kgs) 5700 7200
Engine Specification
Brand Perkins (UK)
Engine Model 4006-23TAG2A
Prime power 654kW
Injection Indirect
Aspiration Turbocharged
No. of cylinders 6
Bore of Stroke (mm) 160 x 190
Displacement (L) 22.921
Cooling water
Compression Ratio 13.6:1
Engine Oil capacity (L) 22
Coolant Capacity ( In radiator) 22
Governor Electric
Air Filter Dry Element
Fuel consumption at 50Hz
100% Load (L/h) 131
75% Load (L/h) 122
50% Load (L/h) 83
25% Load (L/h) 41.5
Alternator Specification
Brand Stamford
Model HCI 634G
Rate Output 640kW
Pole 4
Winding Connections Star
Insulation Class H
Enclosure IP23
Altitude (m) ≤1000
Voltage Regulator AVR
Steady State Voltage Regulator 1%
Bearing Single
Controller System
Brand ComAp
Model IL-AMF 25
Functions Control with AMF module
Static with auto. battery charger, overcurrent
Emergency stop push button
RS232, CAN
OPTIONAL EQUIPMENTS
ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts

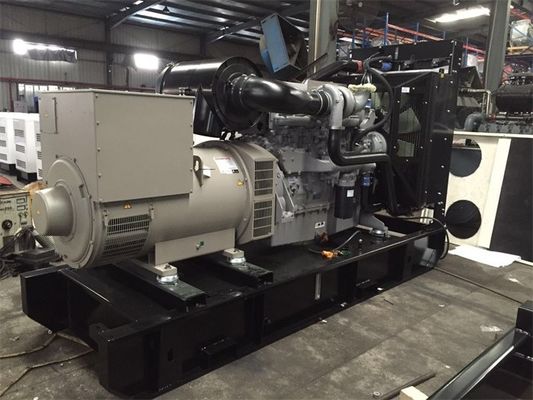

600kW Open Type Diesel Generators Perkins 6 Cylinder Diesel Engine Generator 750kVA 1

Applications:

Tecgen Open-Type Genset is a diesel-fueled generator that is powered by a Perkins UK Diesel engine. It has a model number of TG821P and is certified by ISO / CE / SASO / CIQ / CO. This open-type generator has a minimum order quantity of one set and can be negotiated for the price. The packaging details include a plastic film package or a polywooden package and the delivery time is within 10 working days. Payment terms can be done through T/T or L/C. The Tecgen Open-Type Genset has a supply ability of 400 units per month. It has 6 cylinders and a voltage range of 220-440V. Its genset PRIME output is 600kW/ 750kVA and it has a frequency of 50Hz.



Customization:

Tecgen Open-type Genset

Brand Name: Tecgen Open-type Genset
Model Number: TG821P
Place of Origin: Fuzhou, China
Certification: ISO / CE / SASO / CIQ /CO
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Plastic film package or Polywooden Package
Delivery Time: 10 Working Days
Payment Terms: T/T / L/C
Supply Ability: 400 Units Per Month
Maintenance: Easy
Genset Type: Open Type Diesel Generators
Frequency: 50Hz
Voltage Range: 220-440V
Genset Standby Ouput: 660kW / 821kVA

Tecgen Open-type Genset is a diesel-powered generator, also known as an open-frame generator. It is a diesel-powered generator set with a standby output of 656kW / 821kVA, 50Hz frequency, and voltage range of 220-440V.

This generator set is certified with ISO / CE / SASO / CIQ /CO, and comes with a minimum order quantity of 1 SET. The price is negotiable and delivery time is 10 working days. It is easy to maintain and comes with a Plastic film package or Polywooden Package.



Packing and Shipping:

Packaging and Shipping of Open Type Diesel Generators

Open type diesel generators are packaged in a way that ensures the product arrives safely and without damage. Depending on the size of the generator, the packaging may include:

  • Heavy duty cardboard boxes
  • Protective foam padding
  • Bubble wrap
  • Shipping labels

The generator will be shipped using a reliable and reputable shipping company. The estimated shipping time will vary depending upon the destination. Customers should ensure that they have provided the correct shipping address and contact information.

600kW Open Type Diesel Generators Perkins 6 Cylinder Diesel Engine Generator 750kVA 2600kW Open Type Diesel Generators Perkins 6 Cylinder Diesel Engine Generator 750kVA 3600kW Open Type Diesel Generators Perkins 6 Cylinder Diesel Engine Generator 750kVA 4

FAQ:

A1: Our Open Type Diesel Generators Brand Name is Tecgen.
A2: Our Open Type Diesel Generators Model Number is TG821P.
A3: Our Open Type Diesel Generators Place of Origin is Fuzhou, China.
A4: Our Open Type Diesel Generators has ISO / CE / SASO / CIQ /CO Certifications.
A5: The Minimum Order Quantity for our Open Type Diesel Generators is 1 SET.
