220kW DG Diesel Generator 300kVA Standby Water Cooled Diesel Generator With Digital Controller
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Open-type Genset |
| Certification | ISO / CE / SASO / CIQ /CO |
| Model Number | TG275C |
| Minimum Order Quantity | 1 SET |
| Price | Negotiation |
| Packaging Details | Plastic film package or Polywooden Package |
| Delivery Time | 10 Working Days |
| Payment Terms | T/T / L/C |
| Supply Ability | 400 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Number Of Cylinders | 6 CYLINDER | Voltage Regulation | AVR |
|---|---|---|---|
| Voltage Range | 220-440V | Speed Governor | Electric |
| Frequency | 50Hz | Genset Type | Open Type Diesel Generators |
| Maintenance | Easy | Genset Standby Ouput | 220kW / 275kVA |
| Highlight | 220kW DG Diesel Generator,DG Diesel Generator 300kVA,50Hz Water Cooled Diesel Generator |
||
Product Description

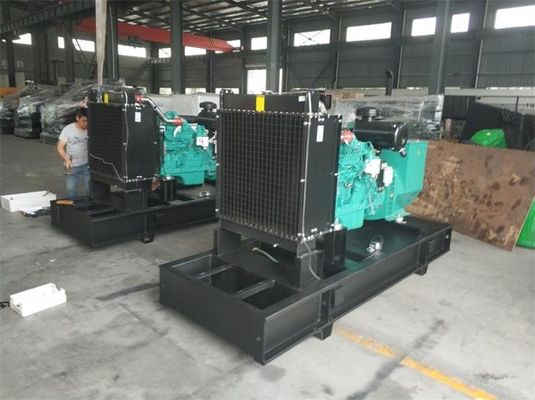

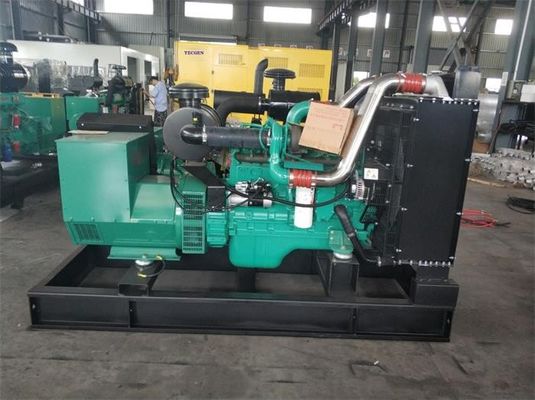

220kW DG Diesel generator 300kVA standby water cooled diesel genereator with digital controller
Product Description:
Our Open Type Diesel Generators are powered by CCEC Cummins Genset, and are designed to provide emergency backup power for residential, commercial and industrial applications. With a standby output of 220kW / 275kVA and a voltage regulation of AVR, these generators are easy to maintain and have an electric speed governor with high accuracy. Our Open Type Diesel Generators are the perfect emergency backup solution for customers who require reliable and efficient power when the power grid fails.
Features:
- Product Name: Open Type Diesel Generators
- Voltage Regulation: AVR
- Voltage Range: 220-440V
- Maintenance: Easy
- Frequency: 50Hz
- Genset Standby Ouput: 220kW / 275kVA
- Open-frame Generator
- CCEC Cummins Generators
- CCEC Cummins Diesel Engine
Technical Parameters:
| Technical Specification: | ||
| 220kW DG Generator Set Specification | ||
| Genset Model | TG275C | TG275CS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 400/230V | |
| Phase | 3 | |
| Rate Current | 360.9A | |
| Prime Power | 200kW / 250kVA | |
| Standby Power | 220kW / 275kVA | |
| Engine Model | QSNT-G6 | |
| Alternator Model | UCI 274K | |
| Controller | DSE7120 | |
| Weight & Dimensions | ||
| Length (mm) | 2700 | 3600 |
| width (mm) | 1100 | 1200 |
| Height (mm) | 1650 | 1850 |
| Weight (kgs) | 2100 | 2950 |
| Engine Specification | ||
| Brand | CCEC Cummins | |
| Engine Model | QSNT-G6 | |
| Prime (kw) | 257 | |
| Injection | Indirect | |
| Aspiration | Turbocharged | |
| No. of cylinders | 6 | |
| Bore of Stroke (mm) | 140 x 152 | |
| Displacement (L) | 14 | |
| Cooling | water | |
| Compression Ratio | 16.7.:1 | |
| Engine Oil capacity (L) | 17 | |
| Coolant Capacity ( In radiator) | 17 | |
| Governor | ECU | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 49.8 | |
| 75% Load (L/h) | 37.3 | |
| 50% Load (L/h) | 24.9 | |
| 25% Load (L/h) | 12.4 | |
| Alternator Specification | ||
| Brand | Stamford | |
| Model | UCI 274K | |
| Rate Output (kW) | 200 | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Deepsea | |
| Model | DSE7120 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Applications:
Tecgen Open-type Genset is powered by Cummins QSNT-G6 Diesel Engine, is designed to provide reliable power in various application scenarios, such as telecommunications, factories, hospitals, airports, ships, and mining, etc. Its model number is TG275C, with ISO/CE/SASO/CIQ/CO certification, and a minimum order quantity of 1 SET. It features high efficiency, energy efficient and low noise, and has a voltage range of 220-440V, and a genset standby output of 220kW/275kVA. Its frequency is 50Hz, and it comes with voltage regulation AVR. It is easy to install and maintain, and comes with a competitive price and a 10 working days delivery time. It has a plastic film package or polywooden package, and a supply ability of 400 units per month. Tecgen Open-type Genset is the perfect choice for anyone in need of reliable Cummins Generators Sets or Open Type Diesel Generators.
Customization:
Customized Open Type Diesel Generators - Tecgen Open-type Genset Model TG275C
Our company provides customized open type diesel generators with Tecgen Open-type Genset Model TG275C. It is manufactured in Fuzhou, China and has obtained certifications such as ISO / CE / SASO / CIQ /CO. It has a minimum order quantity of 1 SET and the price is negotiable. The packaging is plastic film package or Polywooden Package and the delivery time is 10 working days. The payment terms are T/T / L/C and the supply ability is 400 units per month. It has a genset standby output of 60kW / 80kVA and a voltage range of 220-440V. It is a diesel-powered generator with open-frame generator and CCEC Cummins Genset. It also includes a voltage regulation of AVR and easy maintenance.
Packing and Shipping:
Packaging and Shipping for Open Type Diesel Generators
Open type diesel generators are packed in a crate or box and shipped on a pallet with the generator securely fastened. The packaging is designed to protect the generator from damage during transport and handling. The outside of the crate or box is clearly labeled with the product name, model number, and serial number. The crate or box also contains all the necessary installation instructions and manuals.
These generators are shipped via a variety of freight carriers. The shipping cost and transit time depend on the carrier and the destination. All shipments are fully insured and tracked for your peace of mind.
FAQ:
- Q: What is the Brand Name of Tecgen Open-type Genset?
- A: The Brand Name of Tecgen Open-type Genset is Tecgen.
- Q: What is the Model Number of Tecgen Open-type Genset?
- A: The Model Number of Tecgen Open-type Genset is TG275C.
- Q: Where is the Place of Origin of Tecgen Open-type Genset?
- A: The Place of Origin of Tecgen Open-type Genset is Fuzhou, China.
- Q: What Certifications does Tecgen Open-type Genset have?
- A: Tecgen Open-type Genset is certified by ISO / CE / SASO / CIQ / CO.
- Q: What is the Minimum Order Quantity for Tecgen Open-type Genset?
- A: The Minimum Order Quantity for Tecgen Open-type Genset is 1 SET.
