50Hz Frequency Open Type Diesel Generators 110kW Diesel DG Generator With ATS
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Open-type Genset |
| Certification | ISO / CE / SASO / CIQ /CO |
| Model Number | TG138C |
| Minimum Order Quantity | 1 SET |
| Price | Negotiation |
| Packaging Details | Plastic film package or Polywooden Package |
| Delivery Time | 10 Working Days |
| Payment Terms | T/T / L/C |
| Supply Ability | 400 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Genset Type | Open Type Diesel Generators | Frequency | 50Hz |
|---|---|---|---|
| Maintenance | Easy | Voltage Regulation | AVR |
| Voltage Range | 220-440V | Number Of Cylinders | 6 CYLINDER |
| Speed Governor | Electric | Genset Standby Ouput | 110kW / 138kVA |
| Highlight | 50Hz Open Type Diesel Generators,Open Type Diesel Generators 110kW,ATS dg generator |
||
Product Description

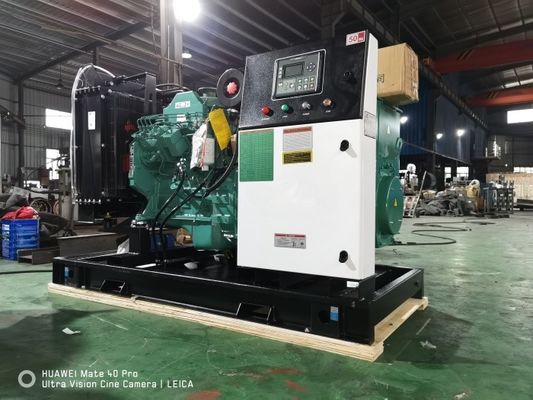

50Hz Frequency Open Type Diesel Generators 110kW diesel DG generator set with ATS
Product Description:
Open Type Diesel Generators are an ideal solution for emergency backup power as well as for a reliable source of electricity in remote locations. They are highly efficient, diesel-fueled generators with an open-type design that offers a wide voltage range of 220-440V. The generators feature four cylinders and provide a standby output of 110kW/138kVA. They are also designed with easy maintenance in mind, making it simple to keep them running smoothly. Open Type Diesel Generators are the perfect choice for those seeking a reliable and cost-effective source of electricity.
Features:
- Product Name: Open-Type Diesel Generators
- Voltage Range: 220-440V
- Maintenance: Easy
- Genset Standby Output: 110kW / 138kVA
- Genset Type: Open-frame Generator
- Frequency: 50Hz
- Power Source: Diesel-Powered Generator
Technical Parameters:
| Technical Parameter for Diesel Generator | Genset Model | TG138C |
| Prime Power | 100kW/125kVA | |
| Standby Power | 110kW/138kVA | |
| Frequency | 50Hz | |
| Rated Voltage | 1500RPM | |
| Power Factor | 0.8 | |
| Engine Brand | Cummins | |
| Engine Model | 6BTA5.9-G2 | |
| Alternator Brand | Tecgen | |
| Alternator Brand | TGI274S110 | |
| Engine General Data | Max Output (kW) | 116 |
| Number of Cylinders | 6 | |
| Cylinder arrangement | Vertical in-line | |
| Displacement (L) | 5.9 | |
| Aspiration | Turbocharged & Aftercooled | |
| Bore×Stroke (mm×mm) | 102x120 | |
| Compression Ratio | 17.3:1 | |
| Speed Governor | Electric | |
| Fuel Consumption at 100% load(L/H) | 27 | |
| Alternator Data | Model | TGI274S110 |
| Brand | Tecgen | |
| Rate Output | 138kVA | |
| Frequency | 50Hz | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Protection Grade | IP 23 | |
| Opetion | Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator | |
|
Control System |
Brand | Smartgen |
| Model | HGM6110N | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| Alarm | ||
| Optional brands | Deepsea, ComAp, Mebay | |
| Battery Capacity | 12/24V | |
| Cooling System | Water-cooled, 50℃ radiator with Cooper | |
| Fuel Tank Capacity | 113L | |
Applications:
Tecgen Open-type Genset is an ideal choice for those who need a reliable and durable Diesel-Driven Generator. With certification of ISO / CE / SASO / CIQ /CO, the Ricardo Generators from Tecgen is of high quality and safety. It is powered by diesel fuel and has a standby output of 110kW / 138kVA, and its maintenance is relatively easy. It has a frequency of 50Hz and a speed governor of Electric. The Open-Type Diesel Generator from Tecgen is available with a minimum order quantity of 1 SET and a reasonable price. It is packaged in plastic film package or Polywooden Package and can be delivered in 10 Working Days. Payment terms are T/T / L/C and the monthly supply ability is 400 Units.
Customization:
Customized Open Type Diesel Generators – Tecgen Open-type Genset TGC
Tecgen Open-type Genset TG138C is a diesel-fueled generator with an open-frame design by Ricardo Generators. With its advanced technology, it is certified by ISO, CE, SASO, CIQ, and CO. Moreover, it has a minimum order quantity of 1 SET, and a competitive price that is negotiable. The packaging details for this product are plastic film package or polywooden package. A 10 working days delivery time is expected, and payment terms via T/T or L/C are accepted.
This Tecgen Open-type Genset TG138C has a supply ability of 400 units per month. It has 6 cylinders, and is easy to maintain. It also has an Automatic Voltage Regulation (AVR) for better performance. The voltage range for this generator is 220-440V.
Packing and Shipping:
Packaging and Shipping for Open Type Diesel Generators
Our open type diesel generators are packaged with extra care to ensure they remain in perfect condition. We use high-quality packing materials and ensure that the generator is securely packed so that it does not get damaged during transit.
We ship our open type diesel generators via air, land, or sea, depending on the customer's preference. We work with the best shipping companies in the industry to ensure that the product is delivered safely and on time.
FAQ:
- Q: What is the Brand Name of the Open Type Diesel Generators?
- A: The Brand Name of the Open Type Diesel Generators is Tecgen Open-type Genset.
- Q: What is the Model Number of the Open Type Diesel Generators?
- A: The Model Number of the Open Type Diesel Generators is TG138C.
- Q: Where is the Open Type Diesel Generators manufactured?
- A: The Open Type Diesel Generators is manufactured in Fuzhou, China.
- Q: What certifications does the Open Type Diesel Generators have?
- A: The Open Type Diesel Generators have ISO / CE / SASO / CIQ /CO certifications.
- Q: What is the Minimum Order Quantity of the Open Type Diesel Generators?
- A: The Minimum Order Quantity of the Open Type Diesel Generators is 1 SET.
