50Hz 380V 40kW 50kVA Open Type Diesel Generator Set Diesel Standby Generator
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Open-type Genset |
| Certification | ISO / CE / SASO / CIQ /CO |
| Model Number | TGR |
| Minimum Order Quantity | 1 SET |
| Price | Negotiation |
| Packaging Details | Plywood case package or By Foam and PE film package |
| Delivery Time | 15 Working Days |
| Payment Terms | T/T / L/C |
| Supply Ability | 400 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency | 50Hz/60Hz | Cooling Method | Water Cooled |
|---|---|---|---|
| Genset Type | Open Type Diesel Generators | Output | AC Three Phase |
| Maintenance | Easy | Voltage Range | 220-480V |
| Genset Standby Ouput | 10kVA --2000kVA | Conditions Of Use | Land Use |
| Highlight | 50kVA open type diesel generator set,40kW open type diesel generator set,50Hz Diesel Standby Generator |
||
Product Description

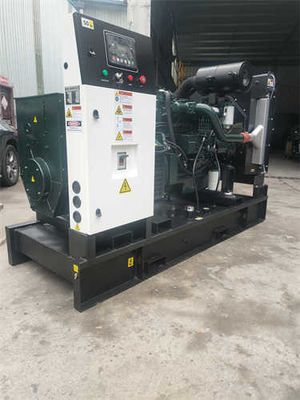

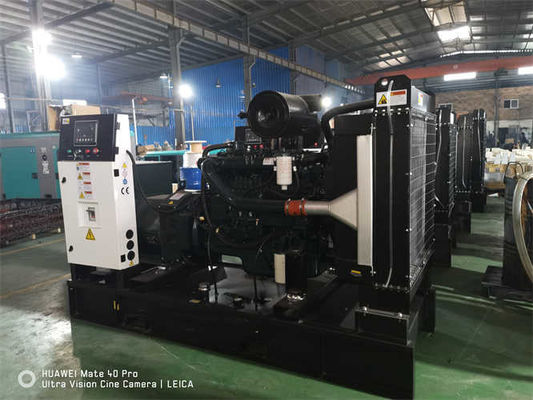

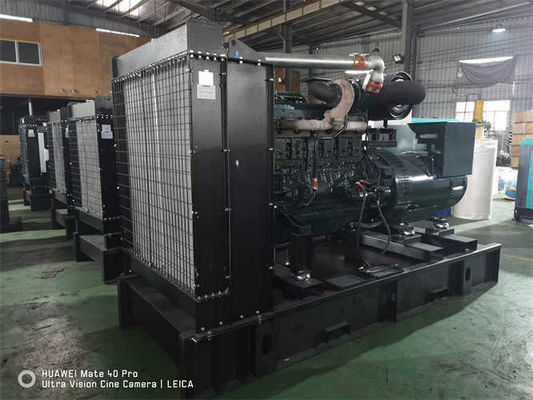

50Hz 380V 40kW 50kVA Open Type Diesel Generators Standby Generator
Product Description:
Open Type Diesel Generators are manufactured by Weifang Ricardo to provide a reliable source of three-phase power output. These generators are powered with diesel fuel, providing efficient, cost-effective, and easy-to-maintain energy. Open-Type Generators can be used in a variety of applications with a frequency of 50Hz/60Hz. As a result of their water-cooled system, these generators are able to provide optimal performance in a variety of conditions. With these generators, you can be sure of dependable energy for an array of applications.
Features:
- Product Name: Open Type Diesel Generators
- Genset Standby Output: 10kVA -- 400kVA
- Genset Type: Open-frame Generator
- Engine: Ricardo Diesel Engine
- Output: AC Three Phase
- Cooling Method: Water Cooled
- Frequency :50Hz/60Hz
Technical Parameters:
Specifications:
| Technical Parameter for Diesel Generator | Genset Model | TG55R |
| Prime Power | 50kVA/40kW | |
| Standby Power | 55kVA/44kW | |
| Frequency | 50Hz | |
| Rated Voltage | 400V | |
| Power Factor | 0.8 | |
| Engine Brand | Ricardo | |
| Engine Model | ZH4105ZD | |
| Alternator Brand | Tecgen | |
| Alternator Model | TGI224S-40 | |
| Engine General Data | Engine Power(kW) | 50 |
| Cyl / Arrangement | 4L | |
| Air Intake way | Turbo | |
| Bore×Stroke (mm×mm) | 105x125 | |
| Speed Governor | Mechanical | |
| Fuel Consumption (g/kw.h)) | 239 | |
| Alternator Data | Model | TGI224S-40 |
| Brand | Tecgen Stamford | |
| Rate Output | 50kVA/40kW | |
| Frequency | 50Hz | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Protection Grade | IP 23 | |
| Control System | Brand | Smartgen |
| Model | HGM6120N | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| Alarm | ||
| Optional brand | ComAp, Deepsea | |
| Starting Voltage | 24V | |
Applications:
Tecgen Open Type Diesel Generators, developed by Ricardo Generators, are designed with open-frame generator, diesel-driven generator, and Tecgen Genset. These high-performance generators are certified by ISO / CE / SASO / CIQ /CO, and have a minimum order quantity of 1 SET. They are available at a competitive price and can be packaged in plywood cases or foam/PE film packages. With a supply ability of 400 units per month, Tecgen Open Type Diesel Generators are ideal for land use with a frequency of 50Hz/60Hz. These generators are easy to maintain and have a water cooling method for efficient operation. Delivery time is 15 working days, and payment terms are T/T / L/C.
Customization:
Tecgen Open-type Genset provides emergency backup generator with Ricardo Diesel Engine, Diesel-Fueled Generator and Cummins engine. It is certified with ISO / CE / SASO / CIQ /CO and its minimum order quantity is 1 SET. The price is negotiable and the packaging is Plywood case package or By Foam and PE film package. It will be delivered in 15 working days and payment can be made by T/T / L/C. It has 400 Units Per Month supplied ability and easy maintenance. Its output is AC Three Phase and the standby output is from 10kVA to 2000kVA. It has frequency of 50Hz/60Hz and is an open type diesel generator.
Support and Services:
Open Type Diesel Generators Technical Support and Services
We provide technical support and services for Open Type Diesel Generators. Our team of experienced technicians are available to troubleshoot any issue you may have with your generator. We offer solutions and advice to help you get the most out of your diesel generator.
Our services include:
- Installation and start-up support
- Emergency repair service
- Regular maintenance
- Fuel delivery
- Oil and filter changes
We also offer technical advice and support to help you get the most out of your diesel generator. If you have any questions, please don't hesitate to contact our team.
