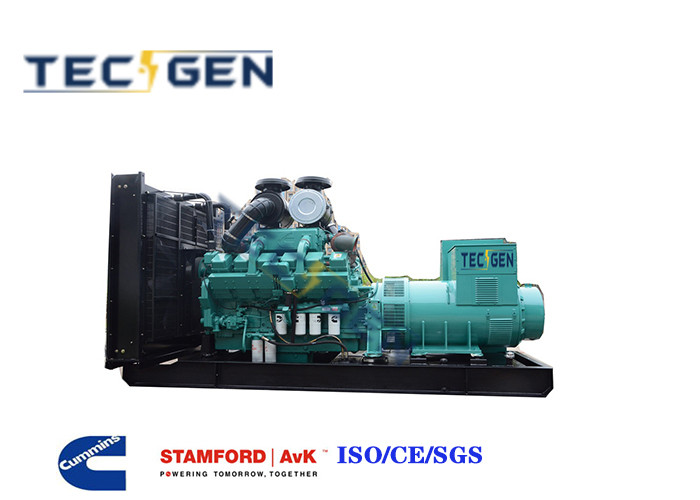

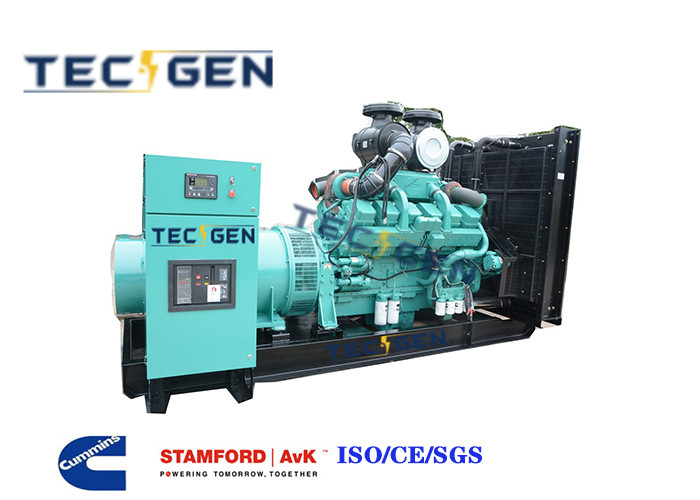

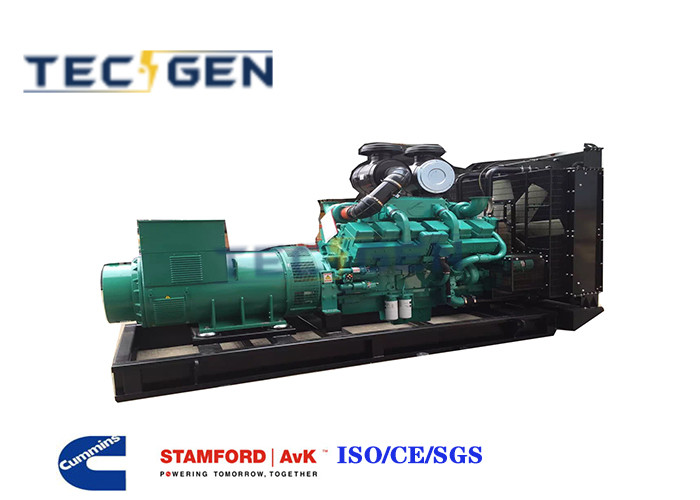

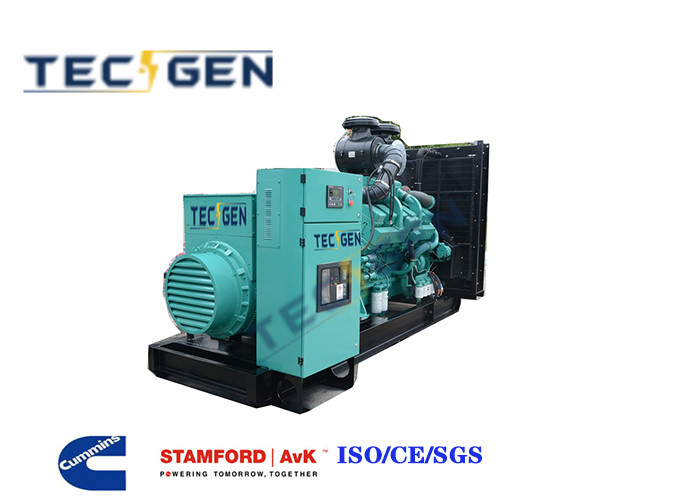

725kva Continuous Diesel Generator Heavy Generating Set For Uninterrupted Power

Continuous diesel generator 725kVA Heavy generating set for Uninterrupted Power

Δ Standard Configuration of Cummins Open Type

1. Powered by Cummins engine
2. Tecgen alternator (Stamford, Meccalte, Leroy Somer for option)
3. DEIF SGC-420 control panel as standard, AMF Control Panel Deepsea DSE7320 & Smartgen HGM6120N for Option, ATS for Option
4. CHINT breaker as standard, ABB, Schneider Breaker for Option
5. 8 Working Hours Base Fuel Tank (for the genset ≤ 650kVA prime, only Base Frame for other models), Integrated-fuel-tank for option
6. Anti-Vibration Mounted System
7. Battery and battery switch
8. Industrial silencer and flexible exhaust hose

For open type, the genset will be much easier to maintain and repair with more durable performance and longer service life, resulting in higher cost performance.

Δ More Technical Data

Our gensets comply with all major standards, including: GB/T2820, ISO8528, IEC34, CE, EPA Tier4 Standard.
Prime output power: 20KVA - 1500 KVA
Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V and more.
Phase/connection: 3 phase, 4 wire.
Rated frequency: 50Hz@1500rpm, 60Hz@1800rpm
Alternator type: Brushless, self-excited or PMG
Insulation: Class H
Protection: IP21~IP23
Voltage regulation: AVR automatic control with 1% accuracy
Altitude above sea level: ≤1000 meters
Ambient air temperature: ≤40°C
Relative air humidity: ≤90%

Δ GENSET FEATURES

1. Genuine Cummins industrial diesel engine

2. Radiator with a maximum temperature of 50°C, fans driven by belts with safety guards

3. Genuine Stamford, Leroy Somer, Marathon, Mecc Alte, Tecgen alternators

4. Choice of manual/auto control panels and protection systems, including AMF control panels

5. Digital auto-start panel for easy operation

6. Anti-Vibration Suspension Absorber for stable operation

7. Dry-type air, fuel, and oil filters for reliable filtration

8. 10-hour operation base tank for extended runtime

9. Moulded case circuit breaker for safe operation

10. 24V DC start motor and storage battery for reliable starting

11. 24V charge alternator for efficient charging

12. 24V batteries, rack, and cables for convenient installation

13. Ripple flex exhaust pipe, exhaust siphon, flange, and muffler for improved performance

14. Compliance with ISO and CE standards for worldwide operation

15. All generator sets undergo rigorous testing before being released to the market, including 50% load, 75% load, 100% load, and all protection functions (over-speed stop, high water temperature, low oil pressure, battery charging failure, emergency stop).

Frequently Asked Questions (FAQ)

Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer.

Q2: What is the power range of your diesel generators?
A2: We offer diesel generators with a power range of 7KW to 2400KW, along with comprehensive power supply solutions.

Q3: What is the delivery time?
A3: The delivery time is approximately 10-20 working days.

Q4: What is your minimum order quantity (MOQ)?
A4: The minimum order quantity is 1 set.

Q5: What are your terms of payment?
A5: We require a 20% advance payment by TT and the balance of 80% before shipment.

Q6: What is your warranty period?
A6: Our warranty period is 18 months or 1500 hours, whichever comes first. However, for specific items, we can extend the warranty period.

Q7: Do you provide OEM services?
A7: Yes, we do.

Q8: How can I trust you?
A8: If you are not satisfied with the pictures, videos, boarding reports, load tests, customer feedback, and sales staff's understanding of the generators you are interested in, we invite you to visit our extensive storage facilities and witness your generators in person. We also offer on-site load testing and a chance to see our professional operations in action.

Q9: What should I do after receiving the generator set?
A9: After receiving the generator, please read the operation manual carefully. The generator comes with a user manual that includes operation, installation, maintenance, and repair guidelines.
