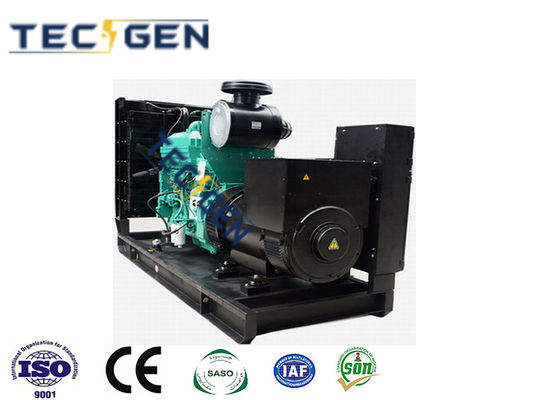

385kva Genset Open Type For Agricultural Machinery Powering Rice Mills

Place of Origin Fuzhou, China
Brand Name Cummins Genset
Certification CE
Model Number TG385C
Minimum Order Quantity 1 unit
Price Negotiation
Packaging Details Stretch film packaging
Delivery Time 15 Days
Payment Terms T/T, L/C, D/A, D/P
Supply Ability 100 Units Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output Type AC Three Phase Genset Type Open-type
Genset Output 308kW / 385kVA Engine Cummins QSNT-G2
Alternator Tecgen / Stamford / Leroy Somer / Mecc Alte Controller DEIF / DEEPSEA / Smartgen / ComAp / Tengen
Fuel Tank Capacity 8 Hours Continue Running Genset Logo Can Be Customed Logo
Highlight

385kva genset open type

,

agricultural machinery genset open type

,

385kva open type diesel generators

Leave a Message
Product Description

Diesel Generator Set with 385kVA for Agricultural Machinery: Powering Rice Mills



TECGEN Power, as part of a Global Power Supplier initiative, offers a professional solution for the design, application, and after-sales support of generators.

With a strong focus on innovation and product design flexibility, TECGEN Power has achieved success in global markets with a broad and diverse range of genset power products that can operate independently, in parallel, or remotely.

With over 10 years of experience in manufacturing and exporting energy products, the Mecca team is ready to advise you on the right product choices.



Our Advantage of Diesel Generator





  1. Partnership with Top Brands: We work closely with reputable diesel engine manufacturers like Cummins, Perkins Deutz, Yangdong, Ricardo, Weichai, FAWDE, Yuchai, SDEC and Quanchai.



  1. Brushless Alternators: We offer Stamford, Leroy Somer, Meccalte, and Tecgen (Copy Stamford) brushless alternators.



  1. Thick High-Quality Steel: All our generator sets are built with 2MM to 4MM thick high-quality steel.



  1. Sound-Absorbing Material: For superior sound insulation and fireproofing, we use high density sound-absorbing material.



  1. Heavy-Duty Covers: Our generator sets come with 2MM to 6MM thick high-quality steel covers.



  1. Complete Kit: Each generator set comes equipped with a 12V/24V DC battery with charger and battery connection wires.





  1. Long-Lasting Performance: With an 8-12 hour fuel tank and fuel indicator, you can enjoy uninterrupted power for extended hours.



  1. Easy Access: The double doors on both sides of the generator sets provide spacious access to every part of the engine and alternator.



  1. Advanced Designs: Our diesel generator sets are designed with the latest technology for silent, super silent, soundproof, and container type models.

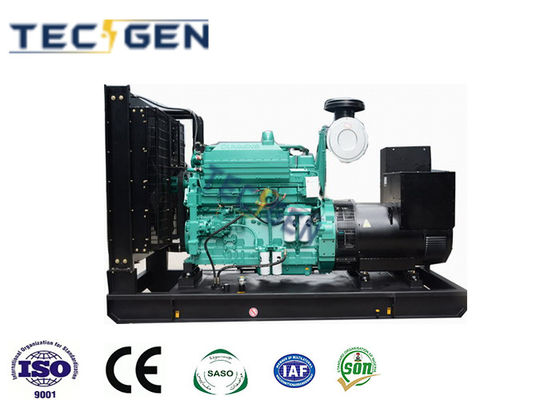

385kva Genset Open Type For Agricultural Machinery Powering Rice Mills 0





350kVA Cummins Diesel Generator Set
Genset Model TG385C
Rated Power 280kW / 350kVA
Standby Power 308kW / 385kVA
Governor ECU
Frequency 50Hz
Rated Voltage 230 / 400V
Rated Current (A) 505.2A
Dimension (mm) L3200 x W1200 x H1800
Gross Weight (kg) 3900
Diesel Engine Brand CCEC Cummins
Model QSNT-G2
Configuration Four-stroke,Water-cooling,Direct Injection
Rated Power 321kW
Rated Speed (rpm) 1500rpm
Cylinder No. 6
Bore*Stroke (mm) 140 x 152
Displacement(L) 14
Intake Turbocharged and Intercooled
Fuel Consumption (g/Kw*h) 240@100% load
Starting method 24V DC / 150Ah
Alternator Brand Tecgen
Model TGI314S280
Rated Power 350kVA
Materials 100% pure copper
Efficiency 92.50%
Voltage Regulation <=±1
Voltage Regulation Brushless, Self-excitation
Insulation Class H
Option brands Stamford / Leroy Somer / Meccalte
Control System Brand DEIF
Model SGC-420
Working Voltage DC8.0V to DC35.0V, continuous
Overall Dimensions (mm) 233*38.5*173
Panel Cutout (mm) 219*158
Working Condition 0 to 95 % RH. To IEC 60068-2-78
Functions AMF/ATS
RS485 & CAN communication
9 Inlet & 7 Outlet
PLC & BTN
Protections Under-speed
Over-speed
Configurable crank connect
Battery monitoring
Charging alternator
Pre-heat
Coolant temperature
Lube oil pressure
Fuel level detection
Fuel theft detection
ECU communication failure
ECU diagnostic lamp
Option brands Deepsea / Smartgen / ComAp / Mebay
Genset option equipment
Integrated-Fuel-Tank ATS Box / Cabinet
PMG Alternator Sync Panel
Trailer Type Engine Heater
Water Heater Fuel – Water Separator
Maintenance Timetable of Diesel Generating Set
Items Job Content Everyday Every Week Every Month Every Six Month Every Year or 250 Hours
Lubricating System Check Oil leakage
Level of engine oil
Replace Oil Filter
Engine Olil
Clean Crankcase box
Cooling System Check Oil leakage
Radiator Block
Soft Tube and Joint
Fluid

Antifreeze and

Anticorrosion


Belt Status

Add Grease

lubricant

Fan and Tensing
Belt wheel
Check Driving Belt wheel and pump
Replace Cooling Liquid Every 12 months
Clean Cooling System
Airflow System Check Oil Gas
Cleaner
Pipe Fittings and Joint
Replace Core of Air Cleaner
Fuel System Check Leakage
Quality of Fuel
Pump Nozzle
Fuel pipe and Joint
Oil Pump
Discharged Deposition of Fuel Tank
Replace Filter of oil
Check Nozzle Every Two Years
Adjust Value

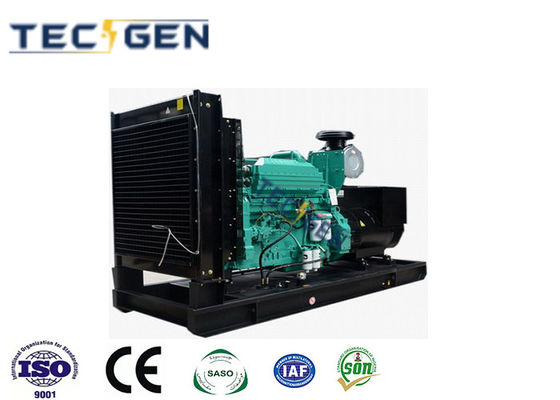

385kva Genset Open Type For Agricultural Machinery Powering Rice Mills 1



FAQ

  1. Q: What's your warranty period?
    A: Our warranty period starts from the agreed delivery date of the genset. The main parts are guaranteed for 18 months or 1500 hours, whichever comes first.



  1. Q: What's your payment terms?
    A: We accept 20% payment in advance by T/T and the balance 80% shall be paid before shipment or through L/C at sight.



  1. Q: What's your delivery time?
    A: Typically, the delivery time is 10-25 days. For urgent orders, we can communicate to expedite the process.



  1. Q: Which port do you use for exports?
    A: We often use the Fuzhou Port, but can also accommodate customer-requested ports.



  1. Q: Do you offer OEM service?
    A: Yes, we provide OEM services.



  1. Q: What's the difference between Prime power and Standby power?
    A: Prime power allows for 12 hours of continuous operation, with 10% overload allowed for every 12 hours of running. Standby power is limited to emergency use and overloading is strictly prohibited.
