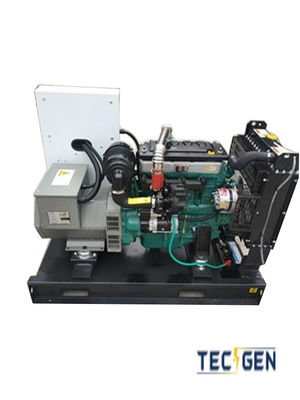

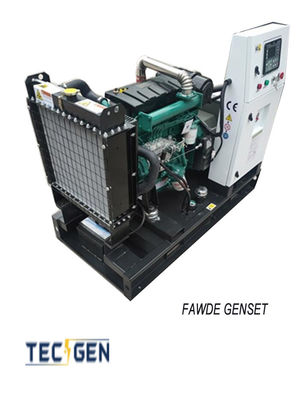

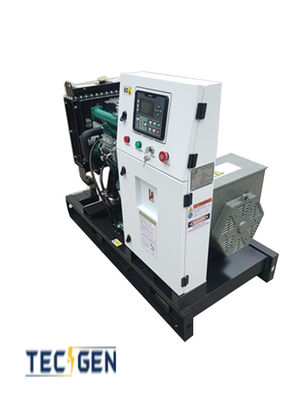

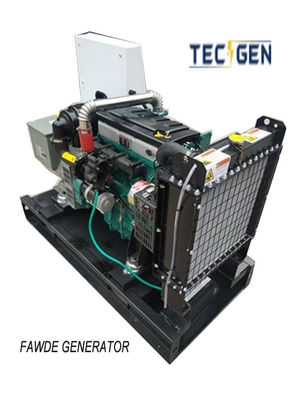

30kVA Open type diesel generator FAWDE 4DW92-39D-HMS20W Engine Genset For Standby
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE |
| Model Number | TG33FW |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging or Polywooden Package |
| Delivery Time | 7 - 15 Working Days |
| Payment Terms | T/T, L/C, D/A, D/P |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type Of Genset | Open Type | Prime Power | 30kVA / 24kW |
|---|---|---|---|
| Max Power | 33kVA / 26kW | Engine Brand | FAWDE |
| Alternator | Copy Stamford | Fuel Tank | 70L |
| Warranty | 18 Months Or 1500 Hours | Lead Time | 7 Days Fastest |
| Highlight | 30kVA genset open type,FAWDE 4DW92-39D-HMS20W Engine open type genset,30kVA open type diesel generators |
||
Product Description
Open type diesel generator 30kVA FAWDE 4DW92-39D-HMS20W engine genset for Standby
Diesel Power Generator Configuration Spec.
1) Powered by brand new original water cooled diesel engine.
2) Brand new STAMFORD, LEROY SOMER or Chinese single bearing 3 phase alternator with IP23 and H insulation class.
3) Original 50ºC radiator with engine driven fan mounted on skid.
4) Delixi or CHINT branded case circuit breaker mounted.
5) Heavy-duty fabricated steel based frame with built-in fuel tank for at least 8 hours continuous running.
6) Complete set mounted on a based frame with anti-vibration mountings.
7) Industrial 9 dB muffler exhaust system with Flexible connects and bellows.
8) Based frame with fuel, oil and coolant drain cocks for easy maintenance.
9) 12/24V DC electric start system with free maintain battery & Smartgen brand battery charger.
10) Set mounted automatic control panel, with DEIF brand AMF controller module for automatic start & stop.
11) Test report of generator, set of drawings and manuals.
12) CE, ISO9001 approved
30kVA Diesel Generator Generator Set Datasheets:
| 30kVA DIESEL POWER GENERATOR Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |
| TG33FW | 4DW92-39D-HMS20W | TGI184S24 | DEIF SGC-420 | 30kVA | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of 30kVA DIESEL POWER GENERATOR | |||||
| Engine Model | 4DW92-39D-HMS20W FAWDE | ||||
| Alternator Mode | TGI184S24 Copy Stamford | ||||
| Rated Output | 30kVA / 24kW | ||||
| Standby Output | 33kVA / 26kW | ||||
| Rated Speed | 1500 RPM | ||||
| Frequency | 50 HZ | ||||
| Rated Voltage | 220 / 380V | ||||
| Rated Current | 91.2A | ||||
| Breaker | 100A Aisikai Breaker | ||||
| ATS | 100A Built-in ATS | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 85dB(A) | ||||
| Net Weight | 680KGS | ||||
| Genset size | L1500 * W600 * H960mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for 30kVA DIESEL POWER GENERATOR | |||||
| Manufacture | FAW JIEFANG | ||||
| Model | 4DW92-39D-HMS20W | ||||
| Rated Output/Speed | 26KW/1500RPM | ||||
| Standby Output/Speed | 29KW/1500RPM | ||||
| Aspiration | Turbocharged | ||||
| Speed Governor | MECH OR Electric | ||||
| Engine Type | 4 cylinders in line | ||||
| Bore X Stroke | 90*100mm | ||||
| Displacement | 2.54 L | ||||
| Compression ratio | 17:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1500rpm | ||||
| Fuel Consumption/rated output | 7.1 L / h | ||||
| Fuel Consumption/standby output | 7.1 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for 30kVA DIESEL POWER GENERATOR | |||||
| Alternator Model | TGI184S24 | ||||
| Manufacture | Copy Stamford | ||||
| Rate Output | 30kVA | ||||
| Rated voltage(V) | 220 / 380V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of 30kVA DIESEL POWER GENERATOR | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | DEIF SGC-420 | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 Celsius degree radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Specifications:
- Model: TG33FW
- Engine: FAW JIEFANG 4DW92-39D-HMS20W
- Alternator: Copy Stamford TGI184S24
- Controller: DEIF SGC-420
- Rated Output: 30kVA / 24kW
- Standby Output: 33kVA / 26kW
- Rated Voltage: 220 / 380V
- Frequency: 50 HZ
- Fuel Tank Capacity: 8 running hours
- Noise Level: 85dB(A) @7m
- Type of Generator Set: Open Type
- Dimensions: L1500 * W600 * H960mm
- Weight: 680KGS
Key Features:
- FAWDE Turbocharged engine with 4 cylinders in-line configuration
- Speed Governor: Mechanical or Electric
- Integrated ATS (Automatic Transfer Switch) for seamless power transfer
- Voltage regulation rate: ≤±1%
- Frequency regulation rate: ≤±5%
- Brushless Self Excited Alternator (Copy Stamford)
- Control System: DEIF SGC-420
- High-quality components: Aisikai Breaker, Varta Maintenance-free Battery
- Standard protection: IP23, Class H insulation system
- Additional options available: Integrated Fuel Tank, Water Heater, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
