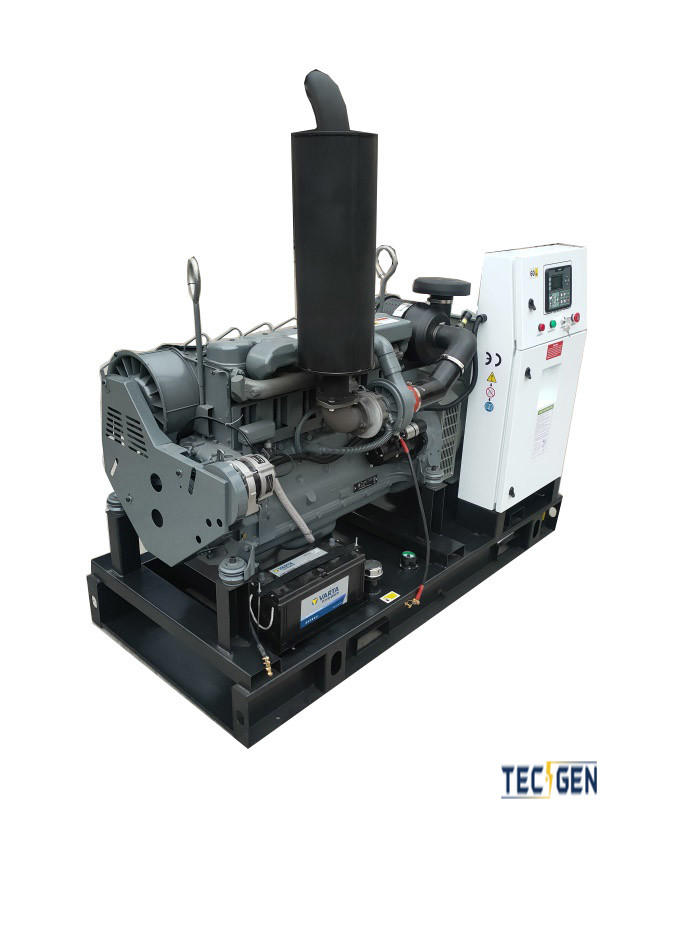

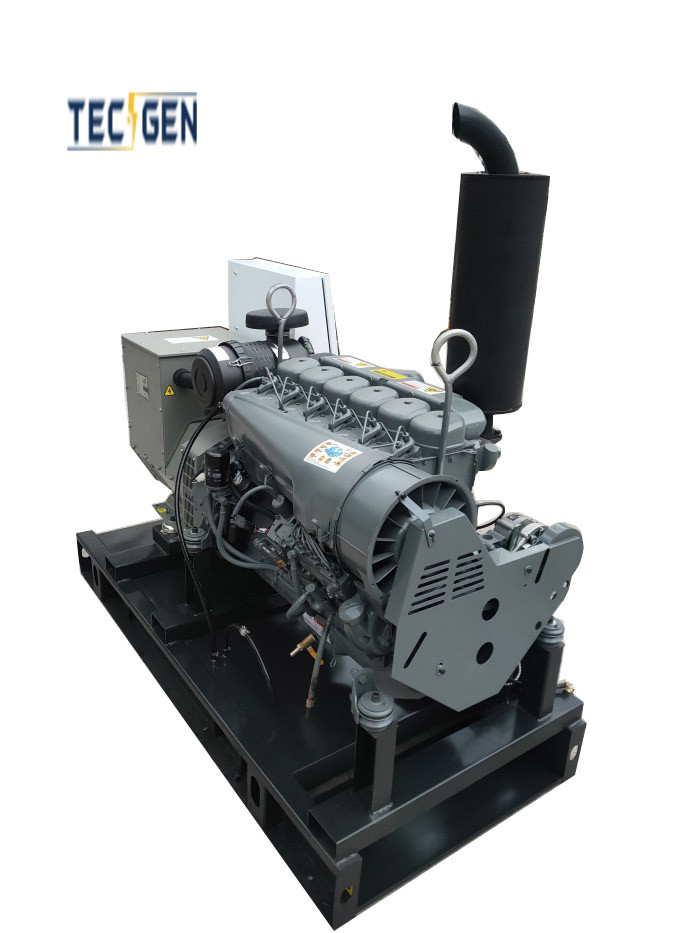

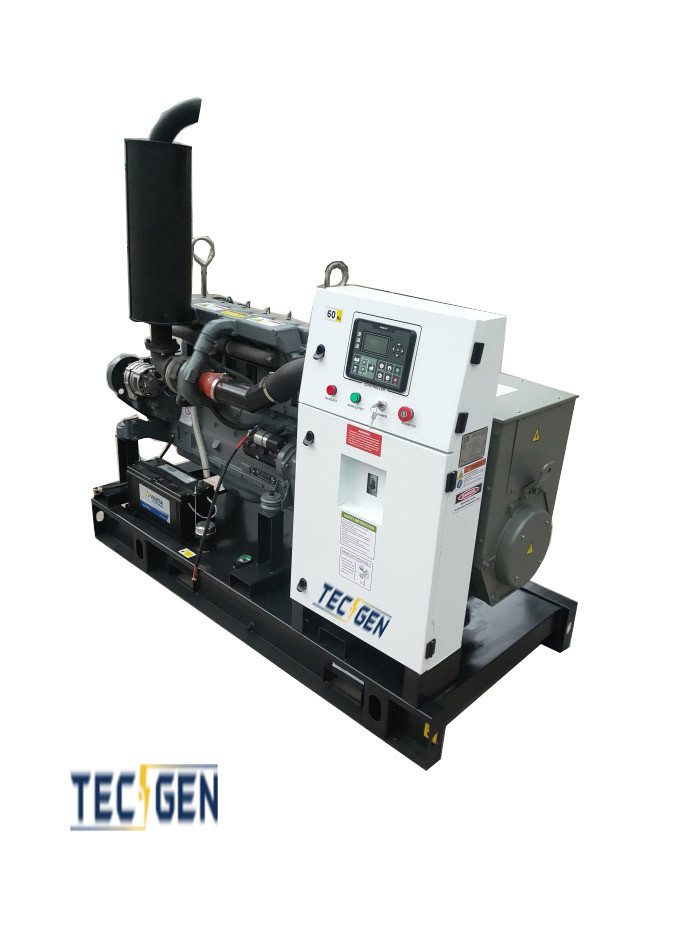

38kW Compact Air Cooled Diesel Generator With F6L912 Engine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Air Cooled Diesel Generator | Prime Power | 38kW / 48kVA |
|---|---|---|---|
| Max Power | 42kW / 52kVA | Engine | F6L912 |
| Cooling Method | Air Cooled | Engine Cylinder | 6 Cylinder In Liner |
| Engine Power | 48kW Prime | Sizes (mm) | L1400 X W700 X H1050 |
| Highlight | 38kW genset open type,Compact open type genset,F6L912 Engine open type diesel generators |
||
Product Description
Air cooled diesel generator 38kW compact aircooled generator with F6L912 engine
Air Cooled Diesel Generator Sets Overviews:
- Power Capacity: Spanning from 10kW to 104kW, our generator sets meet diverse power needs.
- Engine Variants: Wide range of engines including F2L912, F3L912, F4L912, F4L913, F4L912T, F6L912, F6L913, F6L912T, BF4L913, BF6L913, and BF6L913C.
- Alternator Brands: Stamford, Leroy Somer, Mecc, Marathon, and top-quality Chinese alternators for reliable power output.
- Frequency & Voltage Options: Available in 50Hz and 60Hz, with various voltage combinations to suit your needs.
- Phase Configuration: Choose from single phase or three phase as per your application.
- 12/24VDC Charging: Efficient charging generator for seamless operation.
- Filtration System: Complete with dry air, fuel, and oil filters for enhanced performance.
- Tank & Shock Absorber: Daily oil tank and shock absorber for smooth operation.
- Control Panel & Charger: Standard control panel with a floating charger for ease of use.
- Start Batteries & Cables: Includes 2 x 12VDC start batteries and battery connection cable.
- Exhaust System: Complete set of smoke exhaust elbow, bellows, flange, and silencer for safe operation.
- User Manual: Detailed information on generator set usage and maintenance for your convenience.
38kW Air Cooled Diesel Generator Technical Data:
| Air Cooled Diesel Generator Specifications | ||
| Genset Model | TG52B | |
| Type | Open Frame | |
| Cooling Method | Air Cooling | |
| Rated Power | 38kW / 48kVA | |
| Standby Power | 42kW / 52kVA | |
| Governor | MECH | |
| Frequency | 50Hz | |
| Rated Voltage | 240 / 415V | |
| Rated Current (A) | 66.8A | |
| Dimension (mm) | L1400 x W700 x H1050 | |
| Gross Weight (kg) | 600 | |
| Air-cooled Diesel Engine | Brand | Beinei Deutz Series Air-cooled Engine |
| Model | F6L912 | |
| Configuration | Air Cooled | |
| Rated Power | 48kW | |
| Rated Speed (rpm) | 1500rpm | |
| Cylinder No. | 6 Cylinder In line | |
| Bore*Stroke (mm) | 100 x 120 | |
| Displacement | 5.655L | |
| Intake | Nature Intake | |
| Fuel Consumption (g/Kw*h) | 228@100% load | |
| Starting method | 24V DC / 80Ah | |
| Brushless Type Alternator | Brand | Tecgen |
| Model | TGI224S38 | |
| Rated Power | 38kW | |
| Materials | 100% pure copper | |
| Efficiency | 92.50% | |
| Voltage Regulation | <=±1 | |
| Voltage Regulation | Brushless, Self-excitation | |
| Insulation Class | H | |
| Option brands | Stamford / Leroy Somer / Meccalte | |
| Control System | Brand | DEIF |
| Model | SGC-420 | |
| Working Voltage | DC8.0V to DC35.0V, continuous | |
| Overall Dimensions (mm) | 233*38.5*173 | |
| Panel Cutout (mm) | 219*158 | |
| Working Condition | 0 to 95 % RH. To IEC 60068-2-78 | |
| Functions | AMF/ATS | |
| RS485 & CAN communication | ||
| 9 Inlet & 7 Outlet | ||
| PLC & BTN | ||
| Protections | Under-speed | |
| Over-speed | ||
| Configurable crank connect | ||
| Battery monitoring | ||
| Charging alternator | ||
| Pre-heat | ||
| Coolant temperature | ||
| Lube oil pressure | ||
| Fuel level detection | ||
| Fuel theft detection | ||
| ECU communication failure | ||
| ECU diagnostic lamp | ||
| Option brands | Deepsea / Smartgen / ComAp / Mebay | |
| Air Cooled Genset option equipment | ||
| Silent Type | ATS Box / Cabinet | |
| PMG Alternator | Sync Panel | |
| Trailer Type | Alternator Heater | |
| Spare Parts | Fuel – Water Separator | |
Advantage of Air-cooled Diesel Engine F6L912:
Advanced Design and Excellent Manufacturing: Adapt to harsh working conditions, high strength, heavy duty operation.
Holset Exhaust Gas Bypass Valve: Perfect low speed performance, more powerful.
Better Reliability: Integrated design, 40% parts less than other similar engines, greatly reduced the failure rate.
Special Design of Cylinder Liner: Perfect geometric structure effectively prevent the oil leakage
High Pressure Rotor Fuel Pump: Lower fuel consumption, lower noise level.
Air-cooled diesel generator sets offer unique benefits compared to water-cooled models:
- Simplicity & Lightweight: Lacking complex water-cooling components, they're lighter and easier to transport & install.
- Easy Maintenance: Simpler air-cooling design reduces maintenance costs & time, avoiding leaks & blockages.
- Versatile Adaptability: Ideal for water-scarce or harsh environments, air-cooling excels in such conditions.
- High Thermal Efficiency: With reduced cooling air volume, they generate more electricity with the same fuel.
