50kVA Air Cooled Diesel Engine Generator With 6 Cylinder Aircooling Diesel Engine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Air Cooled Diesel Engine Generator | Type | Open-frame |
|---|---|---|---|
| Prime Power | 40kW / 50kVA | Standby Power | 44kW / 55kVA |
| Governor | Mech | Engine Model | F6L913 |
| Cooling Method | Air-cooled | Cylinder Of Engine | 6-Cylinder In Line |
| Highlight | 50kVA genset open type,Air Cooled open type genset,6 Cylinder open type diesel generators |
||
Product Description

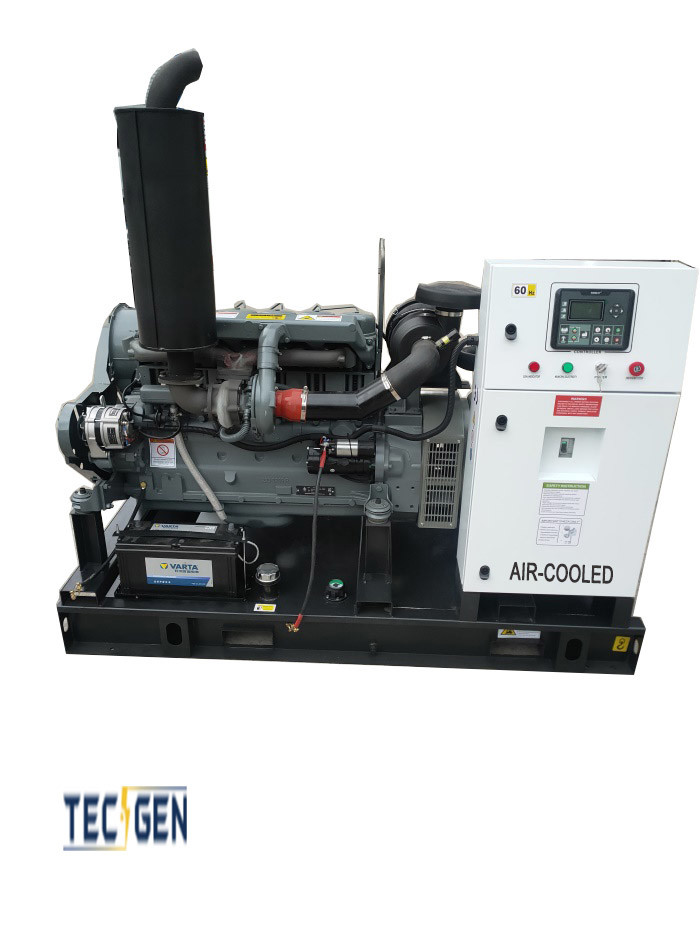

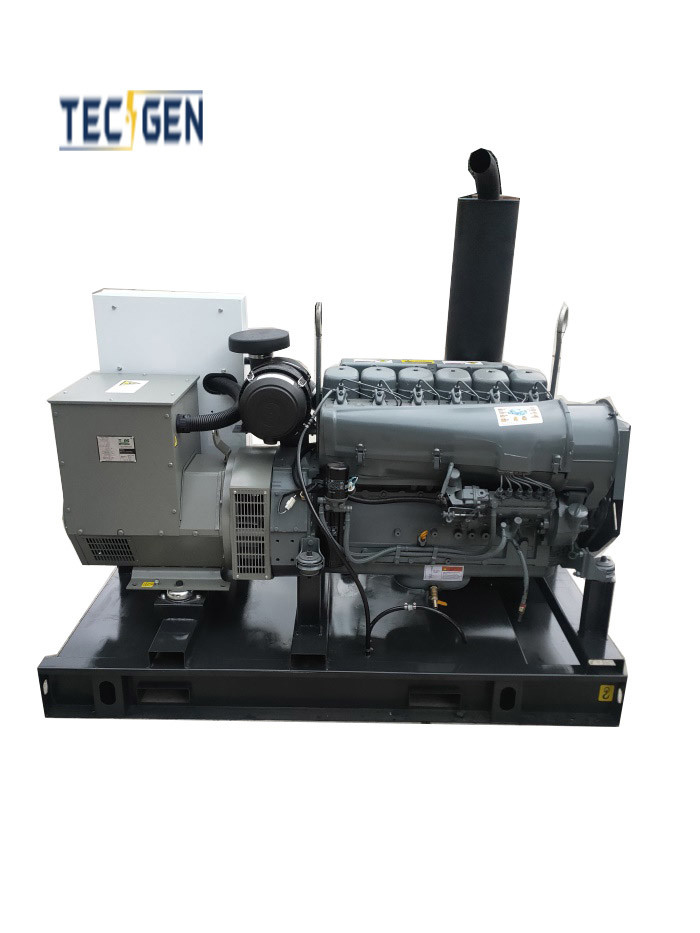

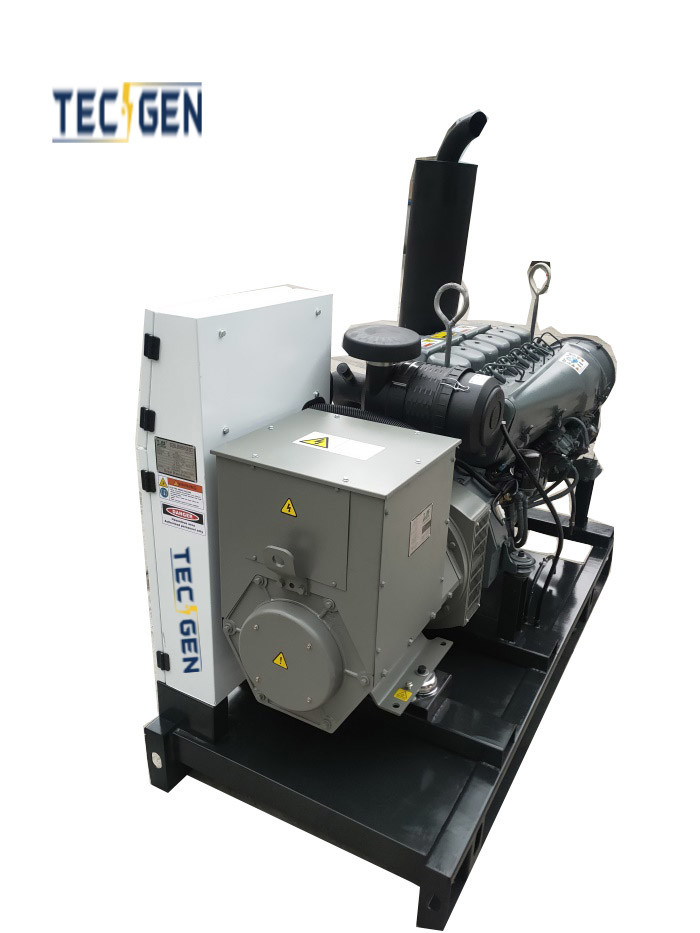

50kVA Air cooled diesel engine generator with 6-Cylinder Aircooling Diesel Engine
Air Cooled Diesel Engine Generator Overview:
- Power Output: Ranging from 10kW to 104kW.
- Air Engines: Multiple options including F2L912, F3L912, F4L912, F4L913, F4L912T, F6L912, F6L913, F6L912T, BF4L913, BF6L913, BF6L913C.
- Alternator Brands: Stamford, Leroy Somer, Mecc, Marathon, or Chinese alternators.
- Frequency & Voltage: Available in 50Hz (multiple voltages) or 60Hz (multiple voltages).
- Phase: Single or three phase.
- Charging: 12/24VDC charging generator.
- Filters: Dry air, fuel, and oil filters included.
- Oil Tank & Shock Absorber: Daily use oil tank and shock absorber provided.
- Control Panel: Standard with floating charger.
- Batteries: 2 x 12VDC start batteries with connection cable.
- Exhaust System: Complete set with smoke exhaust elbow, bellows, flange, and silencer.
- User Manual: Detailed information on usage and maintenance.
50kVA Air Cooled Diesel Engine Generator Technical Data:
| Air Cooled Diesel Engine Generator Specifications | ||
| Genset Model | TG55B | |
| Type | Open Frame | |
| Cooling Method | Air Cooling | |
| Rated Power | 40kW / 50kVA | |
| Standby Power | 44kW / 55kVA | |
| Governor | MECH | |
| Frequency | 50Hz | |
| Rated Voltage | 240 / 415V | |
| Rated Current (A) | 69.6A | |
| Dimension (mm) | L1400 x W700 x H1050 | |
| Gross Weight (kg) | 630 | |
| Air Cooled Diesel Engine | Brand | Beinei Deutz Series Air-cooled Engine |
| Model | F6L913 | |
| Configuration | Air Cooled | |
| Rated Power | 51kW | |
| Rated Speed (rpm) | 1500rpm | |
| Cylinder No. | 6 Cylinder In line | |
| Bore*Stroke (mm) | 102 x 125 | |
| Displacement | 6.128L | |
| Intake | Nature Intake | |
| Fuel Consumption (g/Kw*h) | 228@100% load | |
| Starting method | 24V DC / 80Ah | |
| Alternator | Brand | Tecgen |
| Model | TGI224S40 | |
| Rated Power | 40kW | |
| Materials | 100% pure copper | |
| Efficiency | 92.50% | |
| Voltage Regulation | <=±1 | |
| Voltage Regulation | Brushless, Self-excitation | |
| Insulation Class | H | |
| Option brands | Stamford / Leroy Somer / Meccalte | |
| Control System | Brand | DEIF |
| Model | SGC-420 | |
| Working Voltage | DC8.0V to DC35.0V, continuous | |
| Overall Dimensions (mm) | 233*38.5*173 | |
| Panel Cutout (mm) | 219*158 | |
| Working Condition | 0 to 95 % RH. To IEC 60068-2-78 | |
| Functions | AMF/ATS | |
| RS485 & CAN communication | ||
| 9 Inlet & 7 Outlet | ||
| PLC & BTN | ||
| Protections | Under-speed | |
| Over-speed | ||
| Configurable crank connect | ||
| Battery monitoring | ||
| Charging alternator | ||
| Pre-heat | ||
| Coolant temperature | ||
| Lube oil pressure | ||
| Fuel level detection | ||
| Fuel theft detection | ||
| ECU communication failure | ||
| ECU diagnostic lamp | ||
| Option brands | Deepsea / Smartgen / ComAp / Mebay | |
| Aircooled Genset option equipment | ||
| Silent Type | ATS Box / Cabinet | |
| PMG Alternator | Sync Panel | |
| Trailer Type | Alternator Heater | |
| Spare Parts | Fuel – Water Separator | |
Air-cooled diesel engine generator sets enjoy global demand, but popularity varies by region, economy, climate, electricity needs, and policies. Key markets include:
- Developing countries in Asia, Africa, and Latin America, driven by infrastructure growth and electricity demand.
- Hot climates, where their efficient heat dissipation is a plus, especially in tropical and subtropical regions.
- Areas with unstable power supply, where they serve as reliable backup or emergency power sources.
Air-cooled diesel engine generator sets offer distinct advantages over water-cooled models:
- Simplified & Lightweight Design: Lacking water pumps, radiators, and pipes, they're lighter for easy transport and installation.
- Effortless Maintenance: Simpler air-cooling system reduces costs and time spent on repairs, avoiding leaks and blockages.
- Versatile in Any Environment: Especially suitable in water-scarce or harsh conditions, they excel in adaptability.
- Enhanced Thermal Efficiency: Smaller cooling air volume means more electricity generated with the same fuel.
