Open Frame Diesel Generator 650kW Weichai Diesel Generator For Continuous Duty
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Genset Type | Open Frame | Product | Weichai Power Generator |
|---|---|---|---|
| Frequency | 50Hz / 1500rpm | Rated Output | 650kW / 813kVA |
| Standby Output | 715kW / 894kVA | Engine Model | Weichai 12M26D792E200 |
| Engine Power | 720kW Prime | Option | Silent Type / Container Silent Type |
| Highlight | Weichai Open frame diesel generator,continuous duty Open frame diesel generator,650kW Open frame diesel generator |
||
Product Description

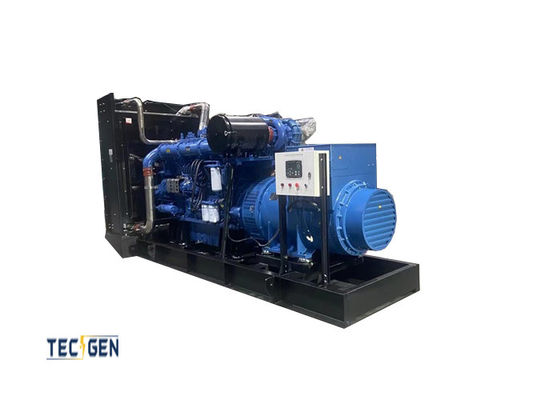

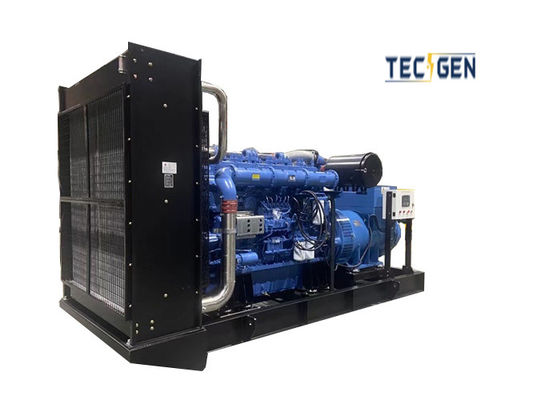

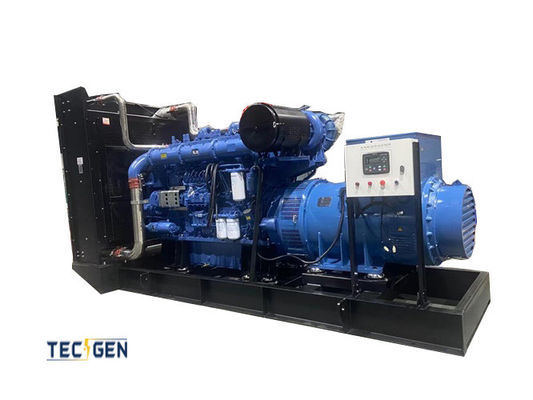

Open frame diesel generator 650kW Weichai diesel generator for continuous duty
Weichai Diesel Generator: Powerful & Reliable Energy Solution
Introducing the 650kW Weichai Diesel Generator, designed for industrial and commercial applications. With its impressive power and reliability, this generator is perfect for businesses in need of efficient and dependable power supply.
Features:
- Powerful Engine: Equipped with a Weichai 12M26D792E200, 12-cylinder, turbocharged engine.
- Efficient Generator: Chinese Alternator TGI404S650 for stable power output.
- Intelligent Control: DEIF SGC-420 multifunction controller for precise speed control.
Key Features:
- Electronic Speed Control: Ensures smooth operation.
- Maintenance-Free Battery: 24V lead-acid battery for reliable backup power.
- Industrial-Grade Components: Delixi or CHNT circuit breakers, industrial silencer, and forklift pockets.
650kW Weichai Diesel Generator General Parameters:
| Weichai Diesel Generator Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |
| TG894WC | 12M26D792E200 | TGI404S650 | DEIF SGC-420 | 650kW | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port or any ports in China (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of Weichai Power Generator | |||||
| Engine Model | Weichai 12M26D792E200 | ||||
| Alternator Mode | TGI404S650 Copy Stamford | ||||
| Rated Output | 813kVA / 650kW | ||||
| Standby Output | 894kVA / 715kW | ||||
| Rated Speed | 1500 RPM | ||||
| Frequency | 50 HZ | ||||
| Rated Voltage | 230 / 400V | ||||
| Rated Current | 1172.8A | ||||
| Breaker | 1250A Aisikai Breaker | ||||
| ATS | 1250A ATS Cabinet | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 6 running hours | ||||
| Noise level dB(A) @7m | 90dB(A) | ||||
| Net Weight | 5900KGS | ||||
| Genset size | L4300 * W1900 * H2200mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for Weichai Power Generator | |||||
| Manufacture | Weichai | ||||
| Model | 12M26D792E200 | ||||
| Rated Output/Speed | 720KW/1500RPM | ||||
| Standby Output/Speed | 792KW/1500RPM | ||||
| Aspiration | Turbocharged & Intercooled | ||||
| Speed Governor | Electric | ||||
| Engine Type | 12 cylinders in line | ||||
| Bore X Stroke | 150*150mm | ||||
| Displacement | 31.8 L | ||||
| Compression ratio | 15:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1500rpm | ||||
| Fuel Consumption/rated output | 178 L / h | ||||
| Fuel Consumption/standby output | 196 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for Weichai Power Generator | |||||
| Alternator Model | TGI404S650 | ||||
| Manufacture | Copy Stamford | ||||
| Rate Output | 650kW | ||||
| Rated voltage(V) | 230 / 400V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of Weichai Power Generator | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | DEIF SGC-420 | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 Celsius degree radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Usage:
Ideal for hospitals, factories, data centers, and critical applications requiring uninterrupted power supply.
Options:
- ATS Cabinet: Available 1250A ATS cabinet for seamless power switching.
- Enhanced Features: Choose from soundproof models, extended fuel tanks, remote monitoring, and more.
Advantages:
- High Efficiency: Engineered for maximum fuel efficiency and reduced operating costs.
- Easy Maintenance: 6-hour fuel tank and 3000-hour spare parts for convenience.
- Comprehensive Warranty: 18-month or 1500-hour after-sales service guarantee.
FAQ:
- Can I customize the generator? Yes, we offer customization options to meet your specific needs.
- What is the production capacity of your factory? Our factory produces 5000 units annually for timely delivery.
Experience the power and reliability of the Weichai Diesel Generator. Contact us today to learn more about this efficient energy solution for your critical applications.
