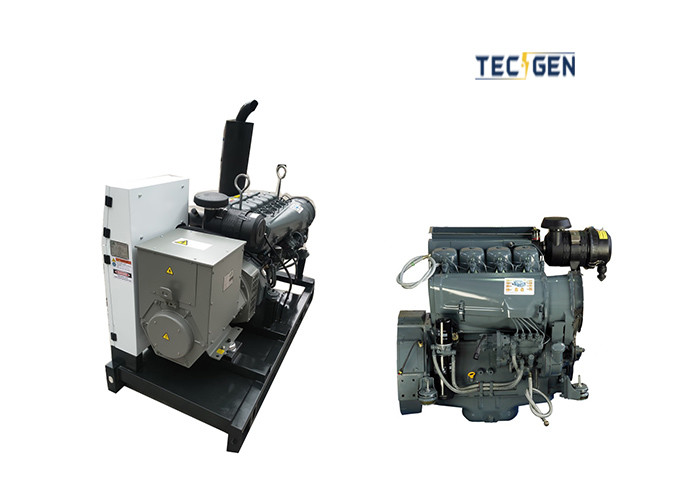

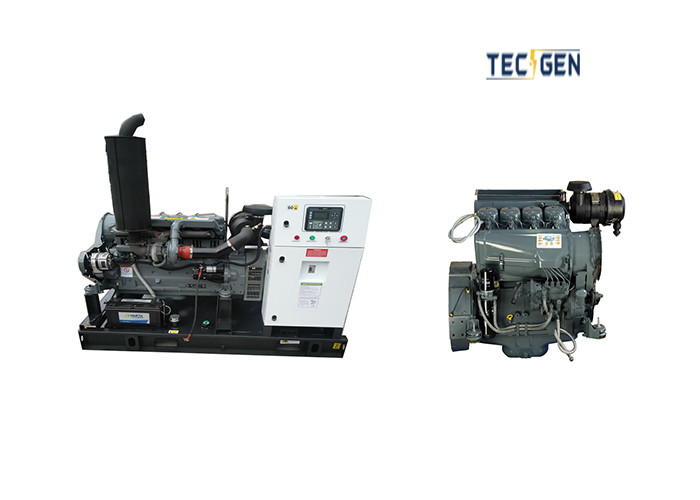

20kW Air-cooled Diesel Generator With F3L912 Air Cooled Engine

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xType | Open Type | Cooling Method | Air Cooling |
---|---|---|---|
Engine Brand | Beinei | Engine Model | F3L912 |
No. Of Cylinder | 3 Cylinder | Engine Power | 24kW |
Genset Power | 20kW | Genset Dimensions | L1200 * W 760 * 1000 |
Highlight | F3L912 air-cooled diesel generator,20kW air-cooled diesel generator,air-cooled diesel generator |
20kW Air-cooled diesel generator air-cooled generator with F3L912 aircooled engine
Standard Features:
- Power Output: 20kW, providing ample electricity for your requirements.
- Air-cooled Design: The generator utilizes air cooling technology, eliminating the need for water-based cooling systems.
- Compact and Portable: The generator's compact size and lightweight design make it easy to transport and install.
- Easy Operation: Equipped with user-friendly controls for effortless operation.
- Durable Construction: Built with high-quality materials to withstand harsh environments.
- Low Maintenance: Designed for easy maintenance, reducing downtime and costs.
Key Features:
- Reliable Power Source: The 20kW Air-cooled Diesel Generator delivers a stable and consistent power supply, ensuring uninterrupted operations.
- Air-cooled Technology: The air-cooled design enhances the generator's efficiency and eliminates the need for complex and costly cooling systems.
- Versatile Applications: Ideal for use in construction sites, residential areas, outdoor events, and more.
- Efficient Fuel Consumption: The generator is designed to optimize fuel consumption, providing cost-effective power generation.
- Silent Operation: The generator operates with minimal noise levels, suitable for noise-sensitive environments.
20kW Air-cooled Diesel Generator Specifications:
20kW Air-cooled Diesel Generator Technical Datasheets | ||||||
Genset model | TG25B | |||||
Genset Type | Open Frame | |||||
Rate Voltage | 440V//415V/400V/380V/230V/220V/110V | |||||
Frequency | 50Hz | |||||
Speed | 1500rpm | |||||
P.F(COS) | P.F. 0.8 | |||||
Prime Output Current | 34.9A | |||||
Prime Power | 18kW / 23kVA | |||||
Standby Power | 20kW / 25kVA | |||||
Engine | Brand | Beinei Deutz | ||||
Model | F3L912 | |||||
Alternator | Brand | Copy Stamford | ||||
Model | TGI164S18 | |||||
Controller | Brand | DEIF | ||||
Model | SGC-420 | |||||
Genset Weight | 600kgs | |||||
Genset Dimensions | L1200 * W 760 * 1000 | |||||
Beinei Air-cooled Diesel Engine Data | ||||||
Brand | Beijing Diesel Engine Co., Ltd | |||||
Engine Model | F3L912 | |||||
Number of Cylinders | 3 Cylinder in Line | |||||
Cycle | 4-troke | |||||
Aspiration | Natural Intake | |||||
Displacement | 2.828L | |||||
Compression ratio | 17:1 | |||||
Bore×Stroke | 100*120mm | |||||
Speed | 1500rpm | |||||
Prime Power | 24kW | |||||
Standby Power | 26kW | |||||
Speed Governor | MECH or Electrical | |||||
Cooling System | Air cooling cycle | |||||
Starting system | DC Motor | |||||
Fuel Consumption at 100% Load | 232g/kwh@1500rpm | |||||
Stamford Alternator Data | ||||||
Brand | Tecgen | |||||
Model | TGI164S18 | |||||
Frequency/speed | 50HZ/1500RPM | |||||
Rate Output | 23kVA | |||||
No. of Phase | 3 Phase, 4 Wire | |||||
Exciter type | Single bearing, Brushless, Self-excited with AVR | |||||
Power factor | 0.8 | |||||
Insulation Grade | H | |||||
Protection Grade | IP23 | |||||
Working Condition | Below 1000m | |||||
Bearing | Single | |||||
Coupling | Direct | |||||
Voltage adjust range | ≥5% | |||||
Voltage regulation NL-FL | ≤±1% | |||||
DEIF Controller System | ||||||
Controller | Brand | DEIF | ||||
Model | SGC-420 | |||||
Function | Auto Mains (Utility) Failure | |||||
Static with auto. battery charger | ||||||
Emergency stop push button | ||||||
ATS & RS485 Connection | ||||||
CAN Functions | ||||||
Diesel Generator Output ranges & Brand Options | ||||||
Prime Power (kW) | Diesel Engine | AC Alternator | Controller | Type | ||
17kW ~ 1260kW | Cummins | Leroy Somer | DEIF | Open/Silent | ||
10kW ~ 300kW | Weifang Ricardo | Tecgen | Mebay | |||
16kW ~ 600kW | Deutz | Marathon | DEIF | |||
7kW ~ 64kW | Yangdong |
Tecgen
|
||||
7kW ~ 76kW | Quanchai | |||||
18kW ~ 3000kW | Weichai | |||||
8kW ~ 800kW | SDEC | |||||
12kW ~ 320kW | FAWDE | |||||
18kW ~ 1200kW | Yuchai | |||||
11kW ~ 104kW | Beinei Aircooled | |||||
7kW ~ 1800kW | Perkins | Stamford | DEEPSEA | |||
6.8kW ~ 2000kW | Caterpillar | Caterpillar | Caterpillar | |||
6.8kW ~ 2000kW | FG Wilson | FG Wilson | FG Wilson | |||
17kW ~ 30kW | Isuzu | Mecc Alte | ComAp | |||
210kW ~ 818kW | VMAN | Tecgen | Tecegn | |||
6kW ~ 2000kW | Chinese Engines | Smartgen |
Usage:
The 20kW Air-cooled Diesel Generator is an excellent choice for a wide range of applications. It can be used as a primary or backup power source in construction sites, residential buildings, offices, and outdoor events. This generator ensures a stable power supply, allowing you to continue your activities without interruption or inconvenience.
Advantages:
- Dependable Performance: The generator is powered by a reliable air-cooled diesel engine, ensuring consistent and efficient power generation.
- Easy Installation: Its compact size and portable design make installation quick and hassle-free.
- Cost-effective Solution: The generator's fuel-efficient operation helps minimize fuel consumption and reduce operating costs.
- Low Maintenance: With its user-friendly design, the generator requires minimal maintenance, saving you time and effort.
Options:
We offer additional options to customize the 20kW Air-cooled Diesel Generator to suit your specific requirements. These options include automatic transfer switches (ATS), remote monitoring systems, and extended warranty packages. Contact our sales team for more information.
FAQ (Frequently Asked Questions):
- Is the generator suitable for outdoor use?
Yes, the generator is designed to withstand outdoor conditions and can be safely used in various weather conditions. - How noisy is the generator during operation?
The air-cooled design ensures quiet operation, making it suitable for noise-sensitive environments. - What is the fuel consumption of the generator?
The generator has been optimized for fuel efficiency, providing cost-effective power generation. - Is installation complicated?
No, the generator's compact and portable design allows for easy installation.
Choose our 20kW Air-cooled Diesel Generator to meet your power requirements reliably and efficiently. With its outstanding features, versatility, and cost-effectiveness, this generator is an ideal choice for both residential and commercial applications. Experience uninterrupted power supply with our air-cooled generator.
