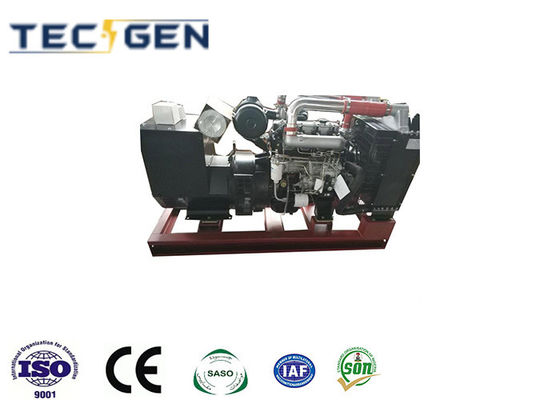

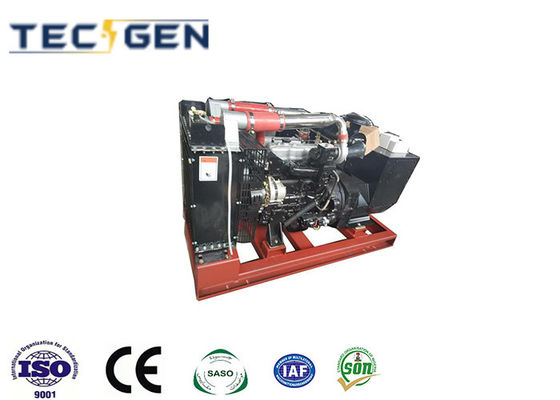

CKD Type 50kW Diesel Genset Isuzu Diesel Generator With MECH Governor For Emergency Power
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG69AI |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging or Polywooden Package |
| Delivery Time | 15 Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | CKD Type | Engine Brand | ISUZU |
|---|---|---|---|
| Engine Model | 4BG1-Z | Alternator Model | TGI224S50 |
| Frequency | 50Hz / 380V | Prime Output | 63kVA / 50kW |
| CKD Type Genset | Engine With 50C Radiator Couple With Alternator Installed Base | Option Type | Open Type, Silent Type, Super Silent Type |
| Highlight | Isuzu Diesel Genset,50kW Diesel Genset,MECH governor Diesel Genset |
||
Product Description
CKD Type 50kW Diesel Genset Isuzu Diesel Generator with MECH governor for emergency power
Introducing the CKD Type 50kW Diesel Genset - a reliable and efficient power solution designed to meet your needs. With its exceptional features and performance, this diesel generator offers a range of benefits that make it an ideal choice for various applications.
Standard Features:
- Genset Type: CKD Type
- Genset Model: TG69AI
- Prime Output: 63kVA / 50kW
- Max Output: 69kVA / 55kW
- Engine Model: ISUZU 4BG1-Z
- Alternator Model: TGI224S50
- Frequency: 50Hz
- Voltage: 380V
- Output Type: 3 Phase, 4 Wire
- Controller: DEIF SGC-420
- ATS: 100A Built-in ATS
- Battery: Varta
- Fuel Tank: 8 running Hours
- Compact and durable design
- User-friendly controller with advanced functions
- Reliable and efficient ISUZU engine
- High-quality brushless alternator
Key Features:
- Power Output: With a prime output of 50kW, the CKD Type Diesel Genset delivers reliable and consistent power to meet your electrical needs. Whether you require backup power for your business or a reliable source of electricity in remote locations, this genset has you covered.
- Engine Performance: Equipped with the robust ISUZU 4BG1-Z engine, this diesel generator ensures exceptional performance and fuel efficiency. The direct injection combustion system, turbocharging, and 4-cylinder configuration contribute to its power and reliability.
- Controller System: The DEIF SGC-420 controller offers comprehensive monitoring and control capabilities, ensuring the smooth operation of the genset. Its advanced features include AMF/ATS functionality, RS485 & CAN communication, and multiple protection systems for enhanced safety.
CKD Type 50kW Diesel Genset Specifications:
| CKD Type 50kW Diesel Genset Datasheet | ||||
| CKD Type Diesel Genset | Genset Type | CKD Type | ||
| Genset Model | TG69AI | |||
| Prime Output | 63kVA / 50kW | |||
| Max Output | 69kVA / 55kW | |||
| Engine model | ISUZU 4BG1-Z | |||
| Alternator model | TGI224S50 | |||
| Frequency | 50Hz | |||
| Speed | 1500rpm | |||
| Voltage | 380V | |||
| Output Type | 3 Phase, 4 Wire | |||
| Current | 95.0A | |||
| Controller | DEIF SGC-420 | |||
| ATS | 100A Built-in ATS | |||
| Breaker | Aisikai / Delixi | |||
| Battery | Varta | |||
| Fuel Tank | 8 running Hours | |||
| Demission | L1700x800x1100mm | |||
| Weight | 550kgs | |||
| CKD Diesel Generator set parameters | ||||
| Voltage setting range | ≥±10% | |||
| Steady state voltage regulation rate | ≤0.5% | |||
| Transient voltage deviation (100% sudden power reduction) | ≤+17% | |||
| Transient Voltage Deviation (40% Sudden Power) | ≤-6.5% | |||
| Voltage Stability Time (100% Sudden Power Reduction) | ≤2.8S | |||
| Voltage Stability Time (40% Sudden Power) | ≤2.5S | |||
| Frequency adjustment range | ≥±10%Adjustble | |||
| Frequency volatility | ≤±0.25% | |||
| Transient frequency deviation (100% sudden power reduction) | ≤+8% | |||
| Transient frequency deviation (40% sudden power) | ≤-5% | |||
| Frequency Recovery Time (100% Sudden Power Reduction) | ≤1.48S | |||
| Frequency recovery time (40% sudden power) | ≤1.35S | |||
| ISUZU Diesel Engine Parameters | ||||
| ISUZU Engine 4BG1-Z | Brand | Aoling Isuzu | ||
| Model | 4BG1-Z | |||
| Prime power | 58kW | |||
| Combustion | Direct Injection | |||
| No. of Cylinders | 4 Cylinder | |||
| Aspiration | Turbocharged | |||
| Compression Ratio | 18:1 | |||
| Speed | 1500rpm | |||
| Displacement | 4.33 | |||
| Bore* Storke | 105mm*125mm | |||
| governor | MECH | |||
| Start motor | DC 12V | |||
| Cooling Capacity | 4.4 | |||
| Cooling Type | Water cooling | |||
| FUEL CONSUMPTION | 240g/kW.h | |||
| Brushless Alternator Parameters | ||||
| Alternator TGI224S50 | Brand | Tecgen Power | ||
| Model | TGI224S50 | |||
| Rate Output | 50kW | |||
| Rate Speed | 1500rpm | |||
| Frequency | 50Hz | |||
| Altitude | ≤1000 | |||
| Alternator type | Single bearing, brushless type | |||
| Connection Type | 3 phase, 4 wire | |||
| Protection Grade | IP23 | |||
| Insulation Class | H | |||
| Voltage Regulation | AVR | |||
| Option brand | Stamford,Leroy Somer,Meccalte | |||
| Genset Controller System | ||||
| Controller DEIF SGC-420 | Brand | DEIF | ||
| Model | SGC-420 | |||
| Working Voltage | DC8.0V to DC35.0V, continuous | |||
| Overall Dimensions (mm) | 233*38.5*173 | |||
| Functions | AMF/ATS | |||
| RS485 & CAN communication | ||||
| 9 Inlet & 7 Outlet | ||||
| PLC & BTN | ||||
| Protections | Under-speed | |||
| Over-speed | ||||
| Configurable crank connect | ||||
| Battery monitoring | ||||
| Charging alternator | ||||
| Pre-heat | ||||
| Coolant temperature | ||||
| Lube oil pressure | ||||
| Fuel level detection | ||||
| Fuel theft detection | ||||
| ECU communication failure | ||||
| ECU diagnostic lamp | ||||
| Option brand | DEEPSEA,Smartgen,ComAp | |||
| Optional accessories | ||||
| Engine | Alternator | Electrical system | ||
| Water Heater | Anti-condensation heater | Anti-condensation heater | ||
| Oil preheater | PMG | Unit control screen with three remote functions | ||
| Air starting motor | Parallel | ATS automatic load transfer screen | ||
| Heavy Air Filter for Desert | Generators of other temperature rise grades | Full-automatic parallel screen for multiple units | ||
| Heavy duty secondary muffler | RTD temperature sensor, 2 per phase | Remote control system separate from unit | ||
| Fuel system | Other | Cooling system | ||
| 12/24h Base tank | Super Silent Canopy | Split water tank | ||
| Oil - water separator | Static sound box generator set |
|
||
| Fully automatic oil supply system | Vehicle-mounted power generation vehicle | Heat exchanger and external circulation cooling tower | ||
| Integrated Fuel Tank | Towing generator set | Marine cooling system | ||
| Delivery Date of Diesel Generator Set | ||||
| Spot goods | QTY(Set) | 12 – 24 Sets | 24 – 120 Sets | |
| Delivery Time | 7-15 Days | 15 – 25 Days | ||
| Custom | Delivery Time | 20 Days | 20 – 30 Days | |
Usage:
The CKD Type 50kW Diesel Genset is suitable for a wide range of applications, including construction sites, industrial facilities, commercial buildings, and events. It provides reliable power supply during power outages, ensures continuous operation of essential equipment, and offers a stable source of electricity in remote or off-grid locations.
Advantages:
- Versatile and Reliable: The CKD Type Diesel Genset is designed to withstand demanding conditions and provide uninterrupted power supply. Its robust construction and high-quality components ensure long-term reliability and durability.
- Fuel Efficiency: The ISUZU engine's direct injection and efficient combustion contribute to reduced fuel consumption, resulting in lower operating costs for your business.
- Easy Operation and Maintenance: The user-friendly controller system simplifies genset operation and monitoring. Routine maintenance tasks are straightforward, allowing for hassle-free maintenance and minimizing downtime.
Options:
Customize your CKD Type 50kW Diesel Genset with optional accessories to meet specific requirements. Options include water heaters, oil preheaters, air starting motors, heavy air filters for desert environments, and more. Tailoring the genset to your unique needs ensures optimal performance and efficiency.
FAQ:
- Q: What is the delivery time for the CKD Type Diesel Generator?
A: For spot goods, the delivery time is usually 7-15 days. Custom orders may take up to 20 days, depending on the quantity. - Q: What is the warranty period for the genset?
A: Our CKD Type 50kW Diesel Genset comes with a standard warranty of XX months. Please refer to the warranty terms for more details. - Q: Can the genset be used in extreme weather conditions?
A: Yes, the CKD Type generator is suitable for a wide range of environments. Optional accessories such as heavy air filters and super silent canopies can be added for specific temperature and noise requirements.
Invest in the reliability and efficiency of the CKD Type 50kW Diesel Genset. With its outstanding performance, user-friendly features, and customization options, this generator is the perfect solution for your power needs. Don't miss out on the opportunity to enhance your operations with a dependable and efficient power source.
