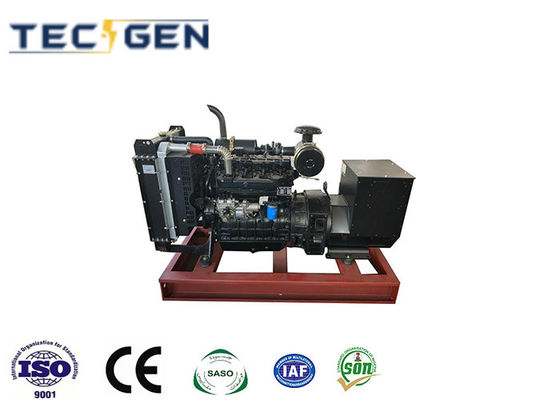

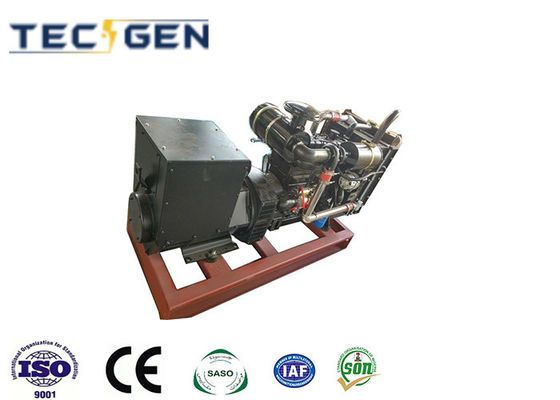

CKD Type 40kW Diesel Genset Isuzu Generator Set With Brushless Type Ac Alternator

CKD Type 40kW Diesel Genset Isuzu generator set with brushless type ac alternator

Introducing the CKD Type 40kW Diesel Genset - a powerful solution for your power generation needs. With its advanced features and reliable performance, this genset is designed to deliver exceptional results in various applications.

Standard Features:

• Genset Type: CKD Type
• Genset Model: TG55AI
• Prime Output: 50kVA / 40kW
• Max Output: 55kVA / 44kW
• Engine Model: ISUZU 4BG1-Z
• Alternator Model: TGI224S40
• Frequency: 50Hz
• Speed: 1500rpm
• Voltage: 380V
• Output Type: 3 Phase, 4 Wire
• Current: 76.0A
• Controller: DEIF SGC-420
• ATS: 100A Built-in ATS
• Breaker: Aisikai / Delixi
• Battery: Varta
• Fuel Tank: 8 running Hours
• Dimension: L1700x800x1100mm
• Weight: 520kgs

Key Features:

1. Reliable Power Output: The CKD Type 40kW Diesel Genset ensures a stable and consistent power supply with its prime output of 40kW, making it ideal for various applications.
2. Efficient Engine: Equipped with the ISUZU 4BG1-Z engine, this genset delivers reliable and efficient performance. Its direct injection, turbocharging, and 4-cylinder design maximize power generation capabilities.
3. Versatile Applications: With its 3-phase, 4-wire output and adjustable frequency, this genset is suitable for a wide range of applications, including construction sites, commercial facilities, and backup power for residential areas.
4. Advanced Controller: The DEIF SGC-420 controller offers comprehensive monitoring and control functions, including AMF/ATS capabilities, communication options, and multiple protection features.
5. Easy Installation and Operation: The genset comes with a built-in ATS, simplifying the connection to your power system. The user-friendly control panel and compact design ensure easy operation and installation.

CKD Type 40kW Diesel Genset Specifications:

Usage:

The CKD Type 40kW Diesel Genset is designed to meet your power needs in various situations. Whether you require a reliable power source for construction sites, need backup power for commercial facilities, or seek a dependable generator for residential applications, this genset is the perfect solution. Its versatile features and robust construction guarantee exceptional performance and reliability.

Advantages:

1. Voltage and Frequency Stability: With a steady state voltage regulation rate of ≤0.5% and a frequency volatility of ≤±0.25%, this genset ensures stable power output, protecting your sensitive equipment.
2. Quick Response: The genset features a fast recovery time of ≤2.8S for voltage stability and ≤1.48S for frequency stability, enabling it to adapt swiftly to sudden power changes, minimizing disruptions.
3. Durability and Longevity: Built with robust components and reliable engineering, the CKD Type 40kW Diesel Genset is designed to withstand demanding environments, ensuring durability and longevity.
4. Comprehensive Protection Features: The DEIF SGC-420 controller provides multiple protection features, including under-speed, over-speed, coolant temperature, lube oil pressure, and fuel level detection, ensuring the safety and reliability of the genset.
5. Customization Options: This genset offers various optional accessories, allowing you to tailor it to your specific requirements. From water heaters to air starting motors and heavy-duty secondary mufflers, these options enhance the performance and versatility of the genset.

FAQ (Frequently Asked Questions):

1. What is the prime output of the CKD Type 40kW Diesel Genset?
   • The prime output of this genset is 40kW, providing a stable and reliable power supply.
2. Can this genset be used for residential backup power?
   • Yes, the CKD Type 40kW Diesel Genset is suitable for residential backup power applications, ensuring a continuous and reliable power source during outages.
3. Does the genset come with a controller for monitoring and control?
   • Absolutely! The genset is equipped with the DEIF SGC-420 controller, offering comprehensive monitoring and control functions, including AMF/ATS capabilities and multiple protection features.

Option:

This genset can be further enhanced with optional accessories, such as water heaters, air starting motors, and heavy-duty secondary mufflers. These options allow you to customize the genset according to your specific requirements, optimizing its performance and versatility.

In conclusion, the CKD Type 40kW Diesel Genset is a reliable and efficient power solution designed to meet your needs in various applications. With its advanced features,reliable performance, and customizable options, this genset stands out as a top choice. Its key features, including the efficient ISUZU 4BG1-Z engine, versatile output, and user-friendly DEIF SGC-420 controller, ensure stable power supply and easy operation. The advantages, such as voltage and frequency stability, quick response time, durability, and comprehensive protection features, make it a reliable and safe choice for your power generation needs.
