6 Cylinder Air-cooled diesel generator 91kW diesel generator with air cooled diesel engine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Air-cooled Diesel Generator | Type | Open Type |
|---|---|---|---|
| Engine Brand | Beinei | Engine Model | BF6L913C |
| Cylinder | 6-cylinder | Cooling Method | Air Cooling |
| Prime Power | 91kW/114kVA | Controller | Mebay DC52D |
| Highlight | Air-cooled diesel generator,6 Cylinder Air-cooled diesel generator,91kW Air-cooled diesel generator |
||
Product Description

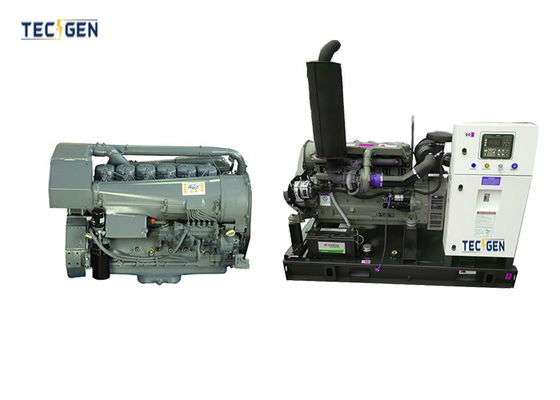

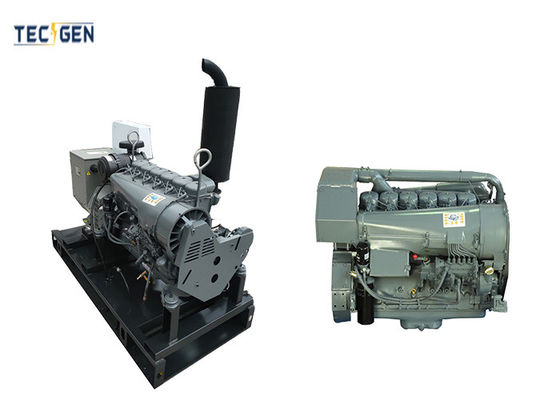

6 Cylinder Air-cooled diesel generator 91kW diesel generator with air cooled diesel engine
Product Title:
Air-Cooled 91kW Diesel Generator (TG125B) - Reliable Power Solution
Product Description:
Introducing the TG125B, our flagship air-cooled 91kW diesel generator, designed for uninterrupted power supply in various industrial and commercial applications. With its robust Beinei BF6L913C engine and Copy Stamford TGI274S91 alternator, this genset delivers exceptional performance and reliability.
Standard Features:
- Powerful Output: Rated at 91kW/114kVA prime power and 100kW/125kVA standby power, ensuring ample power for your critical loads.
- Frequency Stability: Maintains a constant 50Hz frequency for smooth operation of sensitive equipment.
- Forced Air Cooling: Efficient air-cooled system ensures optimal engine temperatures, prolonging engine life.
- Electric Governor: Precision control for seamless load changes and fuel efficiency.
Key Features:
- Air-Cooled Technology: Reduces maintenance costs and simplifies cooling requirements, making it ideal for remote or harsh environments.
- High Power Factor: 0.8 power factor ensures maximum utilization of generator capacity.
- Low Noise Level: At just 80dB(A) at 7 meters, it blends seamlessly into any setting.
- Versatile Connections: Includes ATS & RS485 connectivity for seamless integration into your power system.
91kW Air-cooled Genset Parameters:
| Technical Parameter for Aircooled Diesel Generator | Genset Model | TG125B |
| Prime Power | 91kW/114kVA | |
| Standby Power | 100kW/125kVA | |
| Frequency | 50Hz | |
| Rated Voltage | 220/380V | |
| Current | 173.2A | |
| Power Factor | 0.8 | |
| Governor | Electric | |
| Noise level (7m) | 80db(A) | |
| Engine Brand | Beinei | |
| Engine Model | BF6L913C | |
| Alternator Brand | Copy Stamford | |
| Alternator Brand | TGI274S91 | |
| Dimension | Open: L1600 x W800 x H1500mm | |
| Silent:customed | ||
| Fuel Tank Capacity | 160L | |
| Air-cooled Engine General Data | Engine Brand | Beinei |
| Engine Model | BF6L913C | |
| Rated Output | 114kW | |
| Rated Speed | 1500rpm | |
| Number of Cylinders | 6 | |
| Cylinder arrangement | In-line | |
| Displacement (L) | 6.128 | |
| Aspiration | Turbocharged & Intercooled | |
| Bore×Stroke (mm×mm) | 102x125 | |
| Compression Ratio | 18:1 | |
| Cooling | Forced Air Cooled | |
| Fuel Consumption at 100% load(L/H) | 23 | |
| Alternator Data | Model | TGI274S91 |
| Brand | Copy Stamford | |
| Rate Output | 91kW | |
| Frequency | 50Hz | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Bearing | Single | |
| Voltage Regulator | AVR | |
| Protection Grade | IP 23 | |
| Steady StateVoltage Regulater | 1% | |
| Opetion | Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator | |
|
Control System |
Brand | MEBAY |
| Model | DC52D | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS & RS485 Connection | ||
| Optional brands | Deepsea, ComAp, Mebay | |
| Battery Capacity | 12/24V Varta Maintenance free Battery | |
| Cooling System | Air cooled | |
| Circuit breaker | Delixi Brand 250A Breaker | |
| Auto Transfer Switch | 250A ATS Cabinet | |
| Genset Options | Output Socket | |
| Integrated Fuel Tank Canopy for Genset | ||
| Sync Panel | ||
| Water Heater & Engine Heater | ||
| Water Cooled Engine Brand Options | ||
| Cummins, Perkins, Weifang Ricardo, Yangdong, Quanchai, FAWDE, Weichai, Deutz, SDEC, Yuchai, Isuzu, Doosan, VMAN, Mitsubishi, MTU, Googol, Shanghai Engine | ||
Usage:
Suitable for hospitals, data centers, construction sites, mining operations, and anywhere reliable backup power is essential. Perfect for both prime and standby power applications.
Advantages:
- Durability: Turbocharged & intercooled engine with a 6.128L displacement ensures long-lasting performance.
- Fuel Efficiency: Consumes just 23L/H at full load, reducing operational costs.
- Ease of Maintenance: Simple air-cooled system minimizes downtime for maintenance.
- Rapid Deployment: Compact design and easy installation make it ready to power up in no time.
Options:
- Integrated fuel tank canopy
- Water heater & engine heater
- Sync panel for parallel operation
- Custom silent enclosures
FAQs:
- Q: What is the noise level of the TG125B?
- A: The noise level is 80dB(A) at 7 meters, making it suitable for most environments.
- Q: Can I customize the generator with a silent enclosure?
- A: Yes, we offer custom silent enclosures to meet your specific noise reduction requirements.
- Q: What is the fuel consumption at full load?
- A: The fuel consumption at 100% load is 23L/H.
Experience the power of the TG125B air-cooled diesel generator – your reliable partner for all your power needs. Order now and enjoy uninterrupted power supply backed by our exceptional customer support.
