1800rpm 85kW air-cooled diesel genset open type generator with air-cooling diesel engine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Air-cooled Diesel Generator | Type | Open Type |
|---|---|---|---|
| Engine Brand | Beinei | Engine Model | BF6L913 |
| Cylinder | 6-cylinder | Cooling Method | Air Cooling |
| Genset Power | 85kW/94kW | Controller | Mebay DC52D |
| Highlight | 1800rpm air-cooled diesel genset,Open Type air-cooled diesel genset,85kW air-cooled diesel genset |
||
Product Description

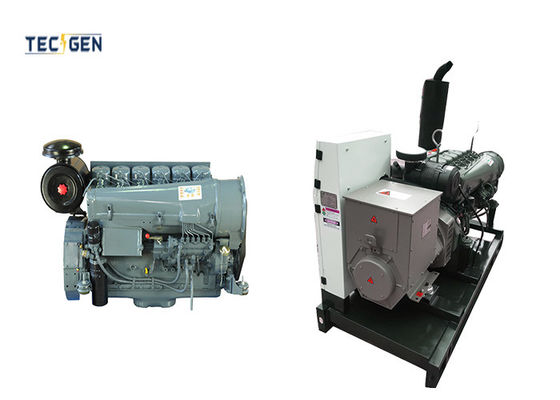

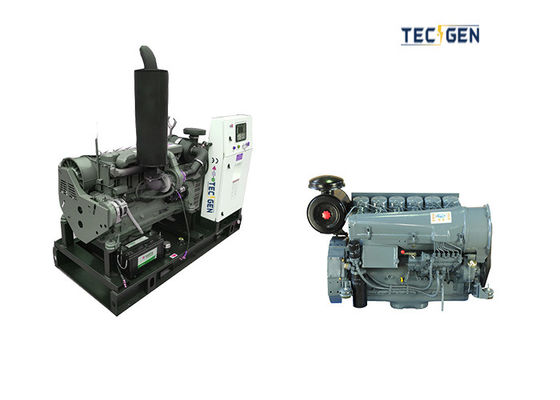

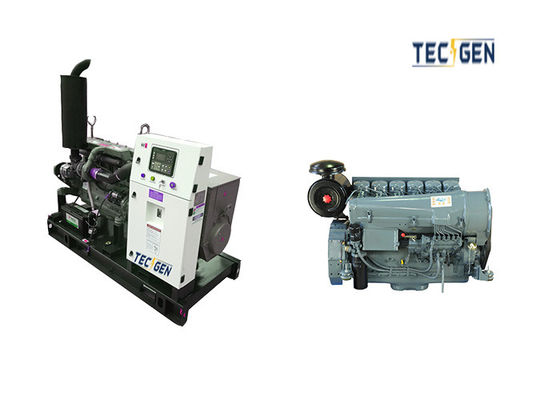

1800rpm 85kW air-cooled diesel genset open type generator with air-cooling diesel engine
Product Title: 1800rpm 85kW Aircooled Diesel Genset - Reliable Power Solution
Standard Features:
Introducing our robust 1800rpm 85kW Aircooled Diesel Genset, the ultimate power solution for various industrial and commercial applications. Equipped with a BEINEI BF6L913 turbocharged diesel engine, this genset delivers prime power of 106kW and a maximum output of 94kW, ensuring seamless power supply even under demanding conditions. Its 6-cylinder direct injection design ensures efficient combustion and prolonged engine life.
Key Features:
- Powerful Performance: With an impressive 85kW rating, this Aircooled Diesel Generator Set is ideal for powering mid-to-large-scale operations, from construction sites to emergency backup systems.
- Air-Cooled Efficiency: The air-cooled engine design eliminates the need for complex coolant systems, simplifying maintenance and reducing operating costs.
- Durability & Reliability: Built with durability in mind, the BF6L913 engine boasts a compression ratio of 18:1 and a displacement of 6.128L, ensuring stable and reliable power output.
- Brushless Alternator: The Tecgen Power TGI274S85 alternator features a brushless design, reducing maintenance requirements and enhancing performance stability.
- Advanced Controller: Equipped with the MEBAY DEIF SGC-420 controller, this genset offers precise voltage and frequency regulation, ensuring clean and stable power output.
1800rpm 85kW Air-cooled Diesel Genset Datasheets:
| 1800rpm 85kW Aircooled Diesel Genset Datasheet | ||||
| Air Cooled Generator Set | Genset Type | Open | ||
| Genset Model | TG117B | |||
| Prime Output | 106kVA / 85kW | |||
| Max Output | 117kVA / 94kW | |||
| Engine model | BF6L913 | |||
| Alternator model | TGI274S85 | |||
| Frequency | 60Hz | |||
| Speed | 1800rpm | |||
| Voltage | 230V | |||
| Output Type | 3 Phase, 4 Wire | |||
| Current | 266.1A | |||
| Controller | DEIF SGC-420 | |||
| ATS | 300A Built-in ATS | |||
| Breaker | Aisikai / Delixi | |||
| Battery | Varta | |||
| Fuel Tank | 8 running Hours | |||
| Open Demission | L1600x900x1500mm | |||
| Open Weight | 1550kgs | |||
| Silent Demission | CUSTOMED | |||
| Silent Weight | CUSTOMED | |||
| Air-cooled Generator set parameters | ||||
| Voltage setting range | ≥±10% | |||
| Steady state voltage regulation rate | ≤0.5% | |||
| Transient voltage deviation (100% sudden power reduction) | ≤+17% | |||
| Transient Voltage Deviation (40% Sudden Power) | ≤-6.5% | |||
| Voltage Stability Time (100% Sudden Power Reduction) | ≤2.8S | |||
| Voltage Stability Time (40% Sudden Power) | ≤2.5S | |||
| Frequency adjustment range | ≥±10%Adjustble | |||
| Frequency volatility | ≤±0.25% | |||
| Transient frequency deviation (100% sudden power reduction) | ≤+8% | |||
| Transient frequency deviation (40% sudden power) | ≤-5% | |||
| Frequency Recovery Time (100% Sudden Power Reduction) | ≤1.48S | |||
| Frequency recovery time (40% sudden power) | ≤1.35S | |||
| Air-cooling Diesel Engine Parameters | ||||
| AIRCOOLED Engine BF6L913 | Brand | BEINEI | ||
| Model | BF6L913 | |||
| Prime power | 106kW | |||
| Combustion | Direct Injection | |||
| No. of Cylinders | 6 Cylinder | |||
| Aspiration | TURBOCHARGED | |||
| Compression Ratio | 18:1 | |||
| Speed | 1800rpm | |||
| Displacement | 6.128L | |||
| Bore* Storke | 102mm*125mm | |||
| governor | ELECTRIC | |||
| Start motor | DC 12V / 24V | |||
| Cooling Type | Air cooling | |||
| FUEL CONSUMPTION | 228g/kW.h | |||
| Brushless Alternator Parameters | ||||
| AC Alternator TGI274S85 | Brand | Tecgen Power | ||
| Model | TGI274S85 | |||
| Rate Output | 85kW | |||
| Rate Speed | 1800rpm | |||
| Frequency | 60Hz | |||
| Altitude | ≤1000 | |||
| Alternator type | Single bearing, brushless type | |||
| Connection Type | 3 phase, 4 wire | |||
| Protection Grade | IP23 | |||
| Insulation Class | H | |||
| Voltage Regulation | AVR | |||
| Option brand | Stamford,Leroy Somer,Meccalte | |||
| Genset Controller System | ||||
| Controller DEIF SGC-420 | Brand | MEBAY | ||
| Model | DC52D | |||
| Working Voltage | DC8.0V to DC35.0V, continuous | |||
| Overall Dimensions (mm) | 233*38.5*173 | |||
| Functions | AMF/ATS | |||
| RS485 & CAN communication | ||||
| 9 Inlet & 7 Outlet | ||||
| PLC & BTN | ||||
| Protections | Under-speed | |||
| Over-speed | ||||
| Configurable crank connect | ||||
| Battery monitoring | ||||
| Charging alternator | ||||
| Pre-heat | ||||
| Coolant temperature | ||||
| Lube oil pressure | ||||
| Fuel level detection | ||||
| Fuel theft detection | ||||
| ECU communication failure | ||||
| ECU diagnostic lamp | ||||
| Option brand | DEEPSEA,Smartgen,ComAp | |||
| Optional accessories | ||||
| Engine | Alternator | Electrical system | ||
| Water Heater | Anti-condensation heater | Anti-condensation heater | ||
| Oil preheater | PMG | Unit control screen with three remote functions | ||
| Air starting motor | Parallel | ATS automatic load transfer screen | ||
| Heavy Air Filter for Desert | Generators of other temperature rise grades | Full-automatic parallel screen for multiple units | ||
| Heavy duty secondary muffler | RTD temperature sensor, 2 per phase | Remote control system separate from unit | ||
| Fuel system | Other | Cooling system | ||
| 12/24h Base tank | Super Silent Canopy | Split water tank | ||
| Oil - water separator | Static sound box generator set |
|
||
| Fully automatic oil supply system | Vehicle-mounted power generation vehicle | Heat exchanger and external circulation cooling tower | ||
| Integrated Fuel Tank | Towing generator set | Marine cooling system | ||
| Delivery Date of Diesel Generator Set | ||||
| Spot goods | QTY(Set) | 12 – 24 Sets | 24 – 120 Sets | |
| Delivery Time | 7-15 Days | 15 – 25 Days | ||
| Custom | Delivery Time | 20 Days | 20 – 30 Days | |
Usage:
Suitable for a wide range of applications, including construction, agriculture, mining, hospitality, and emergency backup power, our 1800rpm 85kW Aircooled Diesel Genset is the perfect choice for those seeking reliable, portable power solutions.
Advantages:
- Efficient & Cost-Effective: Air-cooling technology and fuel-efficient diesel engine reduce operating costs.
- Quick Deployment: Compact design and built-in 300A ATS facilitate swift installation and deployment.
- Easy Maintenance: Brushless alternator and straightforward engine design minimize maintenance requirements.
- Eco-Friendly: Low emissions and quiet operation make it ideal for environmentally conscious applications.
Options:
- Customized silent enclosures available for noise reduction.
- Choice of alternator brands, including Stamford, Leroy Somer, and Meccalte.
FAQs:
- Q: What is the fuel consumption of this genset?
- A: The fuel consumption is approximately 228g/kW.h, ensuring economical operation.
- Q: Is the controller user-friendly?
- A: Yes, the MEBAY DEIF SGC-420 controller features intuitive controls and advanced monitoring capabilities.
- Q: Can this genset be used for emergency backup power?
- A: Absolutely, with its reliable performance and quick response time, it's an excellent choice for emergency backup systems.
Experience the power of reliability with our 1800rpm 85kW Aircooled Diesel Genset. Order now and enjoy a seamless power supply for all your industrial and commercial needs!
